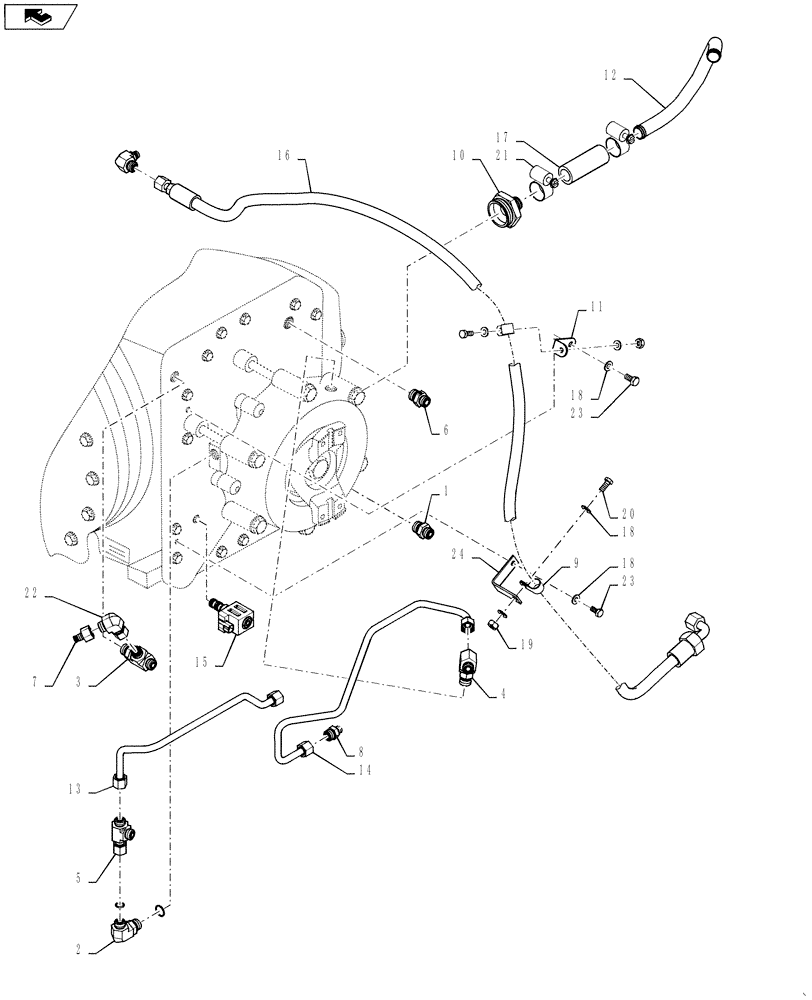

Запчасти Case IH STEIGER 400 (35.128.02) - 315 / 425 SERIES AXLE LUBE, REAR AXLE W/DIFF LOCK - HOSE & FITTINGS (35) - HYDRAULIC SYSTEMS

1

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

2

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

3

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

4

700-447

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

5

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

6

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Check Relief, 25 PSI, Start Serial: ZBF128637

1шт.

7

190316A1

COUPLING

Coupler

1шт.

8

341195A1

ORIFICE

1шт.

9

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

10

337545A1

HYD CONNECTOR

1шт.

11

369960A1

BRACKET

1шт.

12

84280337

RIGID TUBE

Rear Axle Drain

1шт.

13

84280342

RIGID TUBE

Axle Lube, Rear

1шт.

14

84280344

RIGID TUBE

Rear Diff Lock Supply

1шт.

15

384977A1

VALVE

Valve Assy., Solenoid

1шт.

16

84189754

HOSE ASSY.

Aux. Drain to Rear Axle

1шт.

17

31-2757

HOSE,1.00" ID x 4.00"

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

20

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

21

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

22

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

23

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

24

416512A1

BRACKET

Axle Plate

1шт.
