Запчасти Case IH STEIGER 400 (35.120.05) - THREE POINT HITCH HYDRAULIC LAYOUT (35) - HYDRAULIC SYSTEMS

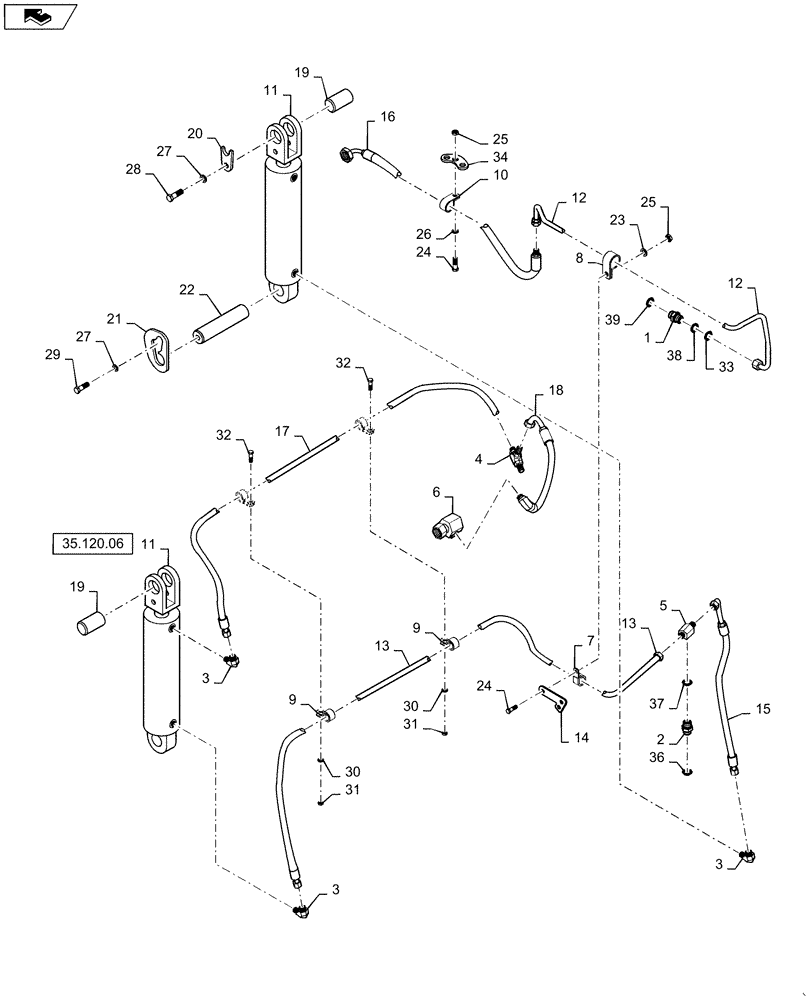

Схема запчастей Case IH STEIGER 400 - (35.120.05) - THREE POINT HITCH HYDRAULIC LAYOUT (35) - HYDRAULIC SYSTEMS
20
16
12
30
36
32
home
19
3
4
35.120.06
6
29
3
27
18
24
31
11
2
28
25
9
1
37
25
23
17
31
22
10
34
39
11
33
21
19
12
38
9
13
3
13
5
15
30
26
14
7
24
32
27
8

Артикул

Название

Примечание

Количество

1

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 38 & 39

1шт.

2

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

Incl 36 & 37

1шт.

3

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

4шт.

4

86579702

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

5

84431325

TEE,13/16"-16 ORFS x 13/16"-16 Fem Sw Br

1шт.

6

84231925

ADAPTER

1шт.

7

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

8

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

9

515-24206

CLAMP,13/16", Insul, 7/16" Bolt

4шт.

10

86639001

CLAMP,30.2mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

11

84577084

LIFT CYLINDER,Double Acting, 50mm Rod, 353.3mm Stroke

2шт.

12

84231920

RIGID TUBE

Drain for Spool

1шт.

13

84231922

RIGID TUBE

Raise for Spool

1шт.

14

84276318

BRACKET

Tube Support

1шт.

15

84231916

HYDRAULIC HOSE

Raise RC

1шт.

16

84231917

HYDRAULIC HOSE

Drain RC

1шт.

17

84231919

HYDRAULIC HOSE

Lower RC

1шт.

18

360496A1

HOSE ASSY.

Lower

1шт.

19

435503A1

PIN,50.8mm OD x 96.72mm L

2шт.

20

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

Spacer

4шт.

21

403204A1

PLATE

Retainer

2шт.

22

321188A2

PIN,50.9mm OD x 215mm L

2шт.

23

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

24

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

26

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

27

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

28

86529976

BOLT,Hex, M16 x 35mm, Cl 10.9

2шт.

29

9843611

BOLT,Hex, M16 x 2.0 x 55mm, Cl 10.9

2шт.

30

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

31

86500689

NUT,M10 x 1.5, Cl 10

2шт.

32

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

33

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

34

84406513

BRACKET

1шт.

35

440567A1

CABLE TIE

(Not Shown)

1шт.

36

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Incl with 2

1шт.

37

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Incl with 2

1шт.

38

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Incl with 1

1шт.

39

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Incl with 1

1шт.

Выбрано товаров: 39
