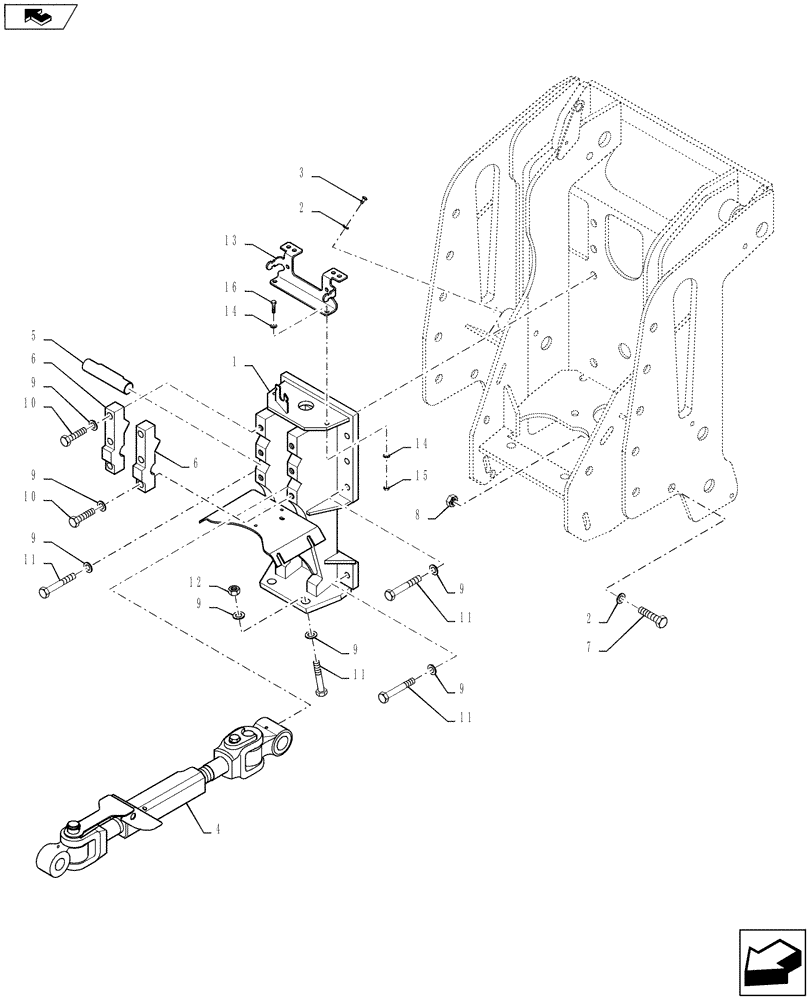

Запчасти Case IH STEIGER 400 (35.120.01[01]) - THREE POINT HITCH LINKAGE W/O PTO (35) - HYDRAULIC SYSTEMS

1

84261715

MOUNT

Upper Link w/o PTO

1шт.

2

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

28шт.

3

9780064

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

4шт.

4

84192702

LIFT LINK

Upper

1шт.

5

309663A1

PIN

Upper Link

1шт.

6

403737A1

CLAMP

Mount

2шт.

7

86639036

BOLT,Hex, M24 x 60mm, Cl 10.9, Full Thd

12шт.

8

9848973

NUT,M24 x 3.0, Cl 10

12шт.

9

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

18шт.

10

9846949

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

6шт.

11

9846950

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

10шт.

12

9847024

NUT,M20, Cl 10

2шт.

13

84276288

BRACKET

Support

1шт.

14

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

16

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

2шт.
