Запчасти Case IH STEIGER 400 (35.106.03) - PISTON PUMP - ASSY - HIGH CAPACITY (35) - HYDRAULIC SYSTEMS

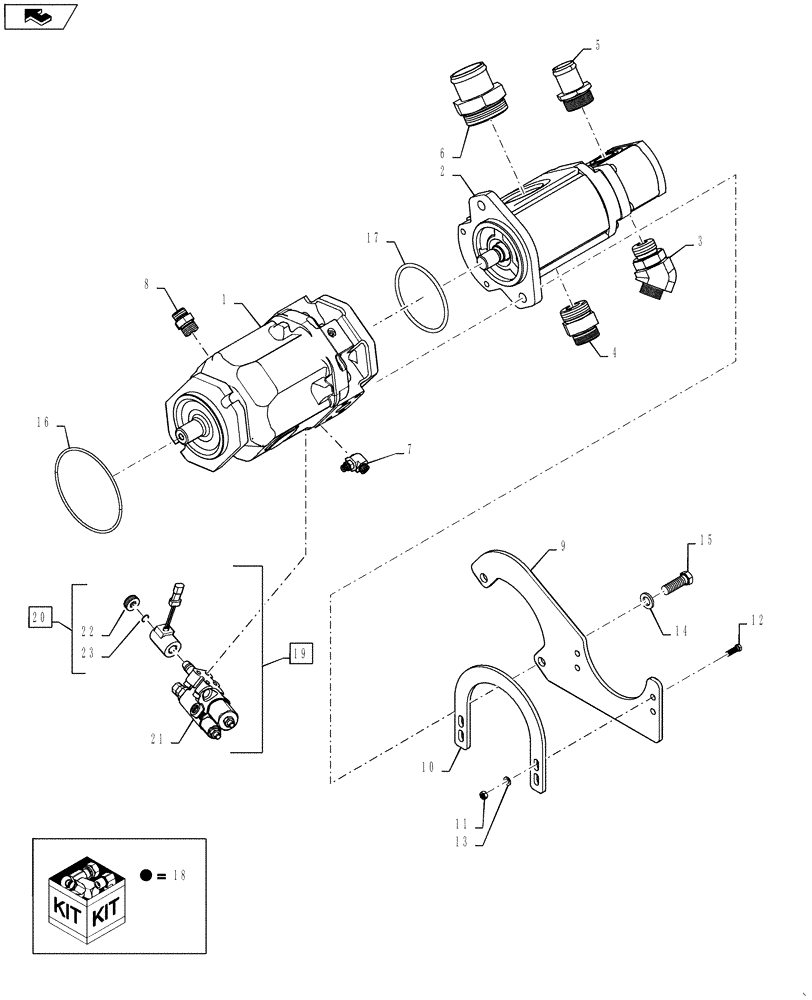

Схема запчастей Case IH STEIGER 400 - (35.106.03) - PISTON PUMP - ASSY - HIGH CAPACITY (35) - HYDRAULIC SYSTEMS
23
17
18
20
14
21
7
8
22
13
3
2
home
1
12
9
15
5
18
16
6
10
19
4
11

Артикул

Название

Примечание

Количество

1

87308196

PUMP

Piston, High Capacity, 100cc

1шт.

1

87308196R

REMAN-HYD PUMP,100 CC

Reman for PN 87308196

1шт.

1

87308196C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

84130469

HYDRAULIC PUMP,110 CC

Axle / Main Charge

1шт.

2

84130469R

REMAN-HYD PUMP

Axle / Main Charge

1шт.

2

84130469C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

201-355

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.

4

201-371

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.

5

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

1шт.

6

84188435

HYD CONNECTOR,2-1/2” - 12 x 2-15/16” L

Straight Bead Hose, 2.00 In x 2.50 - 12

1шт.

7

201-311

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/16" - 20 Male ORB

1шт.

8

201-131

HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB

1шт.

9

84288314

BRACKET

Driveshaft Gaurd

1шт.

10

87419159

PLATE

Shield, Bottom

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

12

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

15

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

16

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

17

436514A1

O-RING

1шт.

18

388292A1

SEAL KIT

Service Part - Not Shown

1шт.

19

87308198

PUMP

Incl 20 - 23

1шт.

19

87308198R

REMAN-HYD VALVE

Incl 20 - 23

1шт.

19

87308198C

CORE-VALVE HYD

Return number

1шт.

20

436751A1

SOLENOID

Incl 22-23

1шт.

21

436536A1

PILOT VALVE

1шт.

21

436536A1R

REMAN-HYD VALVE

Reman Pilot Valve

1шт.

21

436536A1C

CORE-VALVE HYD

Core Return Number

1шт.

22

87703282

NUT

Thumb, Plastic

1шт.

23

638-53200

O-RING,2.65mm Thk x 20mm ID, Cl 5, 75 Duro

1шт.

Выбрано товаров: 31
