Запчасти Case IH STEIGER 400 (35.106.01) - STANDARD HYDYRAULIC PUMP ASSEMBLY (35) - HYDRAULIC SYSTEMS

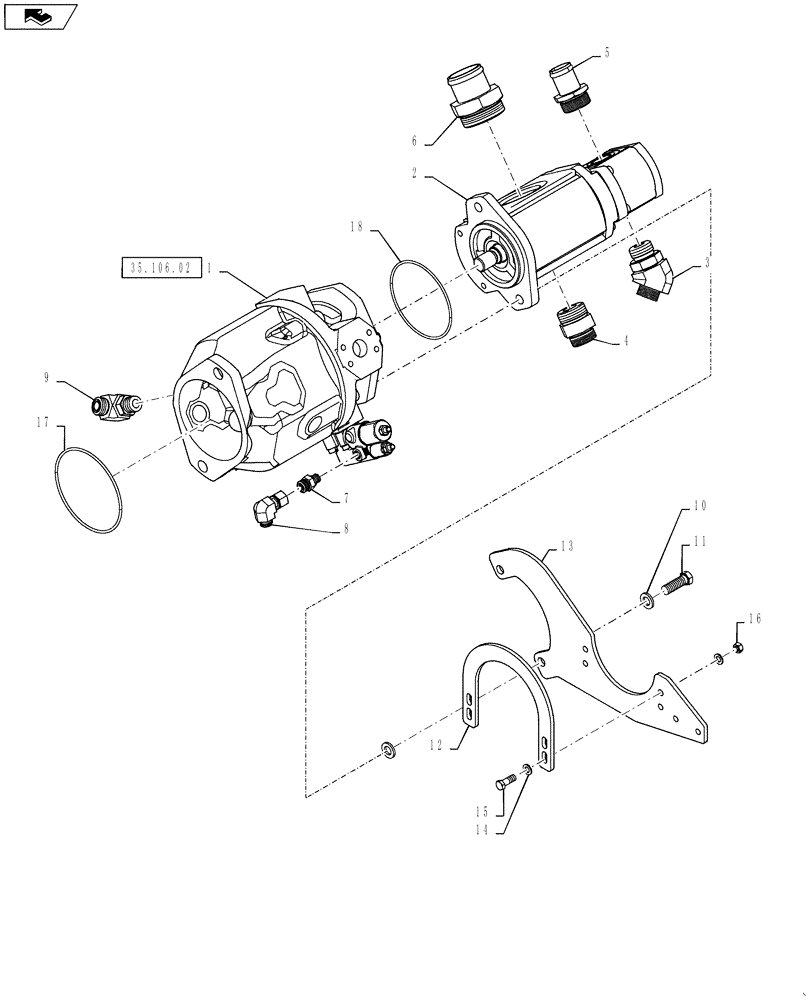

Схема запчастей Case IH STEIGER 400 - (35.106.01) - STANDARD HYDYRAULIC PUMP ASSEMBLY (35) - HYDRAULIC SYSTEMS
12
16
7
9
18
14
4
13
35.106.02
11
10
3
8
6
15
17
home
2
1
5

Артикул

Название

Примечание

Количество

1

87308197

PUMP

Piston, 71CC without Load Sense Drain - Ref. Figure 35.106.02

1шт.

1

87308197R

REMAN-HYD PUMP,71 CC

Reman for New PN 87308197

1шт.

1

87308197C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

84130469

HYDRAULIC PUMP,110 CC

High Capacity Charge

1шт.

2

84130469R

REMAN-HYD PUMP

High Capacity Charge

1шт.

2

84130469C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

201-376

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.

4

201-122

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

1шт.

5

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

1шт.

6

84188435

HYD CONNECTOR,2-1/2” - 12 x 2-15/16” L

2" Hose ID x 2 1/2" -12 ORB Straight

1шт.

7

201-125

HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB

1шт.

8

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

2шт.

9

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

12

87419159

PLATE

Drive Shaft Loop

1шт.

13

84288313

BRACKET

Driveshaft Gaurd, PS 4 Transmission

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

15

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

17

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

18

436514A1

O-RING

1шт.

Выбрано товаров: 22
