Запчасти Case IH STEIGER 400 (33.110.10) - PARKING BRAKE - VALVE COMPONENTS, TOW/PARK BRAKE (EUROPE) (33) - BRAKES & CONTROLS

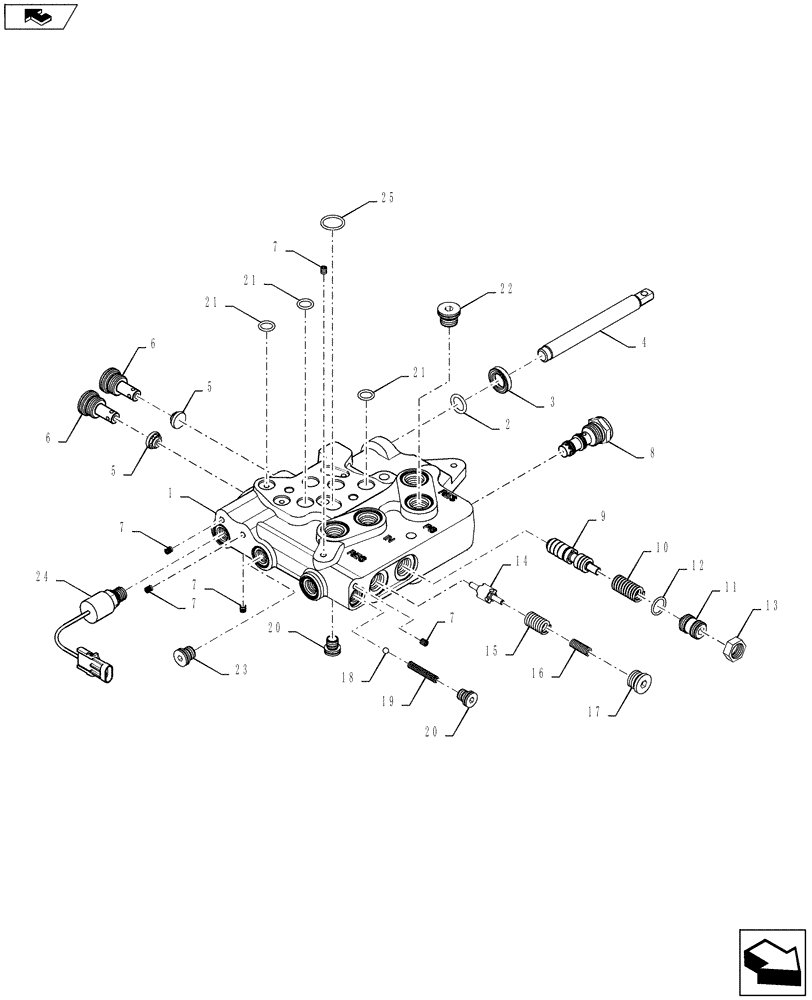

Схема запчастей Case IH STEIGER 400 - (33.110.10) - PARKING BRAKE - VALVE COMPONENTS, TOW/PARK BRAKE (EUROPE) (33) - BRAKES & CONTROLS
7
23
19
9
20
7
16
3
5
22
12
21
10
7
6
20
4
21
7
17
1
2
home
7
15
11
25
24
21
8
14
5
13
6
18

Артикул

Название

Примечание

Количество

1

84176123

BRAKE VALVE

Valve Assembly, Tow/Park Brake, Europe - Incl 2 - 25, Serial Range: -ZBF128001

1шт.

1

84495767

BRAKE VALVE

Valve Assembly, Tow/Park Brake, Europe - Incl 2 - 25, Start Serial: ZBF128001

1шт.

2

238-5208

O-RING,0.139" Thk x 0.609" ID, -208, Cl 5, 75 Duro

1шт.

3

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

Spool

1шт.

4

84187368

SPOOL

Manual Pump

1шт.

5

1994615C2

VALVE, CHECK

Cage Assembly

2шт.

6

84181937

PLUG

Check Retainer

2шт.

7

NSS

NOT SOLD SEPARAT

Plug, 6mm Expansion - Incl in 1

5шт.

8

235532A3

VALVE PRESSURE RELIE

Check

1шт.

9

84178572

VALVE

Spool, Regulator

1шт.

10

84181935

SPRING

Regulator

1шт.

11

84184229

PLUG

Plug, Adjusting

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

218-1278

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

14

84178571

VALVE

Spool, Regulator Relief

1шт.

15

84181936

SPRING

Regulator Relief, Outer

1шт.

16

84184300

SPRING

Regulator Relief, Inner

1шт.

17

218-5210

PLUG,Hex, 3/4"-16 ORB

1шт.

18

511-1060

BALL,6mm Dia

1шт.

19

352025A1

SPRING

Brake Overpressure Relief

1шт.

20

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

2шт.

21

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

6шт.

22

221578A1

PLUG,M18 x 1.5 ORB

1шт.

23

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

1шт.

24

339529A1

PRESSURE SWITCH

Park Brake

1шт.

25

238-5117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

2шт.

Выбрано товаров: 26
