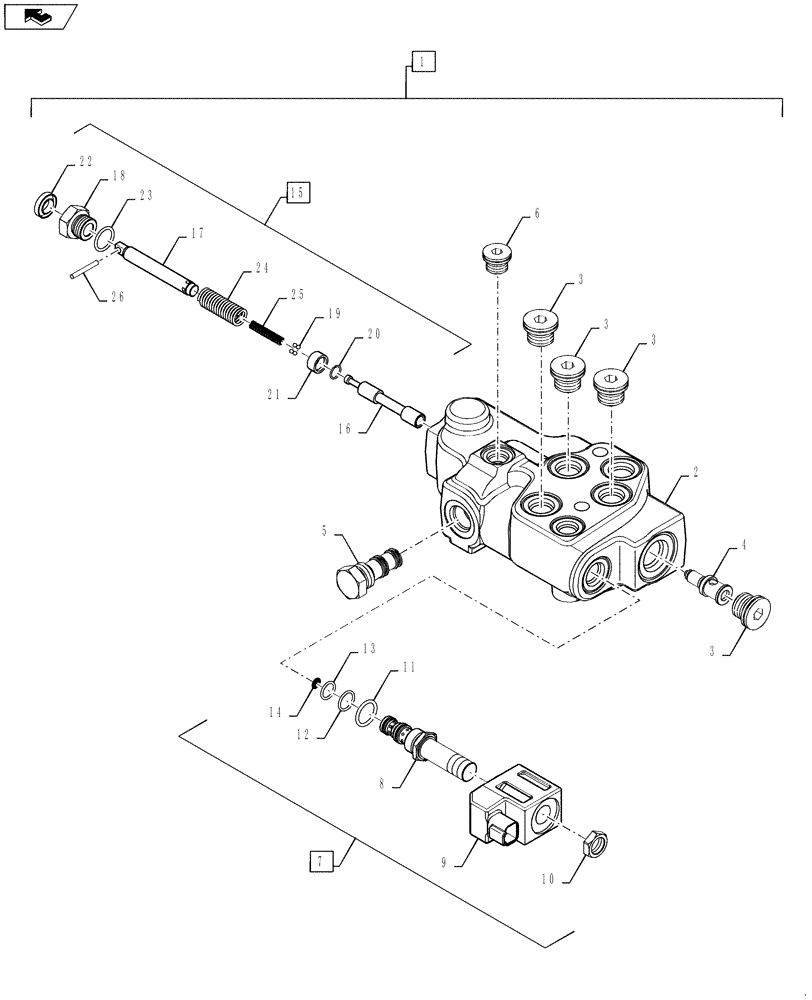

Запчасти Case IH STEIGER 400 (33.110.09) - PARKING BRAKE - VALVE COMPONENTS, TOW/PARK BRAKE (EUROPE) (33) - BRAKES & CONTROLS

1

450061A1

VALVE

Assembly, European Park Brake - Incl 2 - 26

1шт.

2

NSS

NOT SOLD SEPARAT

Body, PTO Valve - Incl in 1

1шт.

3

221578A1

PLUG,M18 x 1.5 ORB

4шт.

4

295920A1

PIN

Reducing, Park Brake

1шт.

5

315514A1

PLUG

Solenoid

1шт.

6

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

1шт.

7

349295A1

SOLENOID VALVE

Incl 8 - 14

1шт.

8

349291A1

CARTRIDGE

Valve

1шт.

9

298614A1

SOLENOID

Coil

1шт.

10

349292A1

JAM NUT,Hex, 1/2" - 2, RH Thd

Jam

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

13

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Screen, Relief Valve

1шт.

15

314877A2

SPOOL

Assembly, European Park Brake - Incl 16 - 26

1шт.

16

NSS

NOT SOLD SEPARAT

Spool, Metering - Incl in 15

1шт.

17

NSS

NOT SOLD SEPARAT

Rod, Feathering - Incl in 15

1шт.

18

277821A1

RETAINER

Spool Seal

1шт.

19

511-1040

BALL,4mm Dia

4шт.

20

277822A1

RING

Return Spring Retaining

1шт.

21

277820A1

WASHER

Return Spring Retaining

1шт.

22

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

Oil-Sensing

1шт.

23

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

24

NSS

NOT SOLD SEPARAT

Spring, Return Park Brake - Incl in 15

1шт.

25

NSS

NOT SOLD SEPARAT

Spring, Park Brake Feathering - Incl in 15

1шт.

26

838-3540

PIN,M5 x 40, Coiled

1шт.
