Запчасти Case IH STEIGER 400 (33.110.04) - PARKING BRAKE - VALVE ASSEMBLY AND FITTINGS, TOW/PARK BRAKE - WHEELED (EUROPE) (33) - BRAKES & CONTROLS

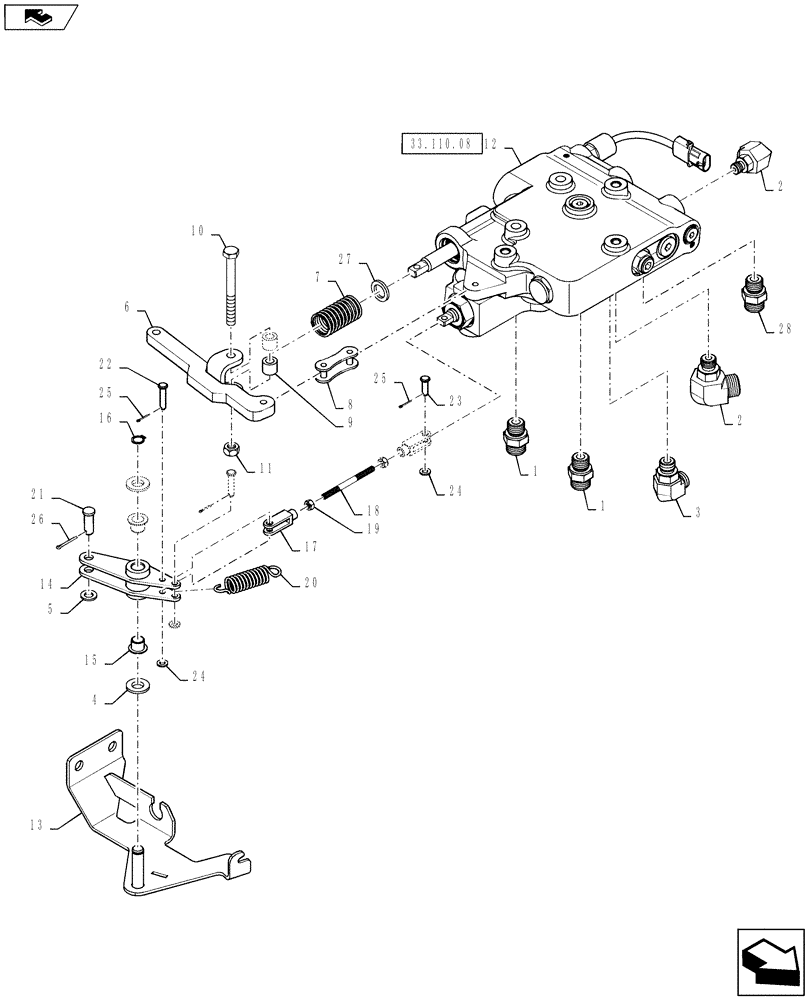

Схема запчастей Case IH STEIGER 400 - (33.110.04) - PARKING BRAKE - VALVE ASSEMBLY AND FITTINGS, TOW/PARK BRAKE - WHEELED (EUROPE) (33) - BRAKES & CONTROLS
25
10
8
4
1
1
27
2
33.110.08
20
15
26
24
17
18
13
23
25
7
21
24
5
19
28
9
12
6
2
14
22
11
3
home
16

Артикул

Название

Примечание

Количество

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

2шт.

2

700-311

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

2шт.

3

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

4

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

6

84183473

ARM

Tow Valve Manual Pump, Serial Range: -ZDF133820

1шт.

6

47401716

ARM

Tow Valve Manual Pump , Start Serial: ZDF133821

1шт.

7

361897A1

SPRING

Compression

1шт.

8

242-4412

CHAIN LINK

2060H Double Pitch

1шт.

9

392748A1

SPACER

Tube

1шт.

10

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

1шт.

11

832-10406

NUT,M6 x 1, Cl 8

1шт.

12

84176123

BRAKE VALVE

Tow/Park Brake Assy. - Europe, Serial Range: -ZBF128001

1шт.

12

84495767

BRAKE VALVE

Tow/Park Brake Assy. - Europe, Start Serial: ZBF128001

1шт.

13

84402234

BRACKET

Euro Park Brake Cable

1шт.

14

84183471

BELLCRANK

Euro Park

1шт.

15

1533540C1

BUSHING,12mm ID x 14mm OD x 12mm L

Plastic

2шт.

16

800-1112

SNAP RING,M12, Ext

1шт.

17

713-126

CLEVIS

2шт.

18

428302A1

ROD

Emergency Brake Valve, Threaded

1шт.

19

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

20

327572A2

SPRING

1шт.

21

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

1шт.

22

728-630

CLEVIS PIN,M6 x 30

1шт.

23

728-620

CLEVIS PIN,M6 x 20

1шт.

24

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

25

733-1610

COTTER PIN,M1.6 x 10

3шт.

26

733-2520

COTTER PIN,M2.5 x 20

1шт.

27

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

28

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Park Brake Drain, Start Serial: ZBF128001

1шт.

Выбрано товаров: 30
