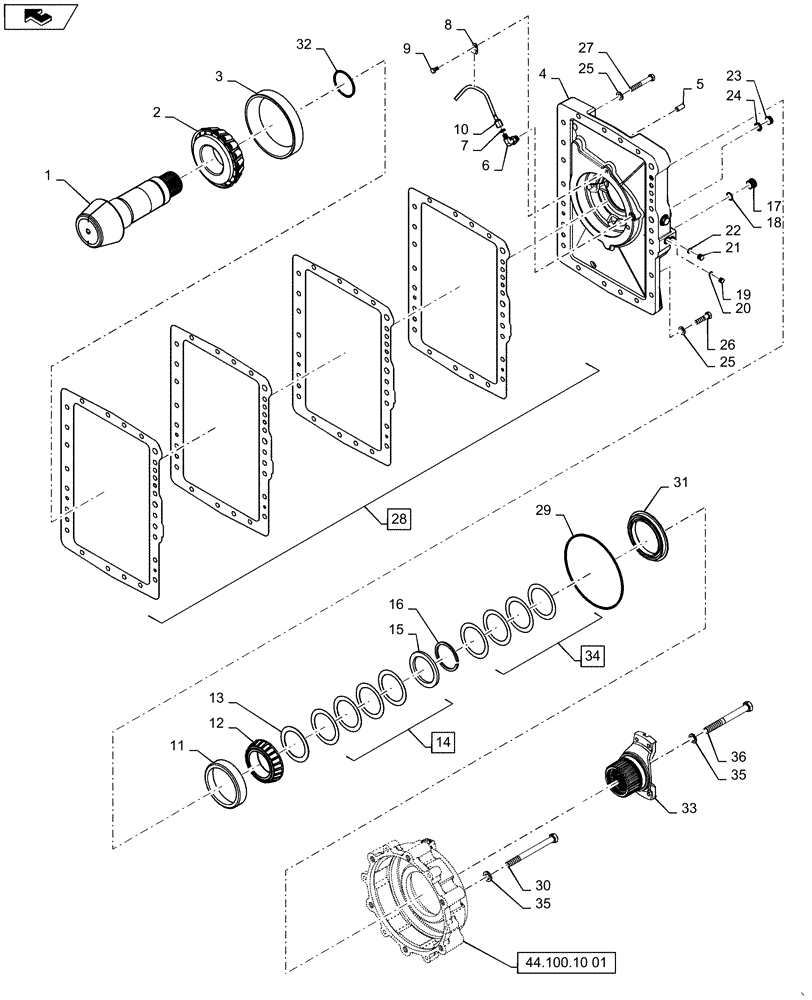

Запчасти Case IH STEIGER 400 (27.106.09) - AXLE - ASSY - 425 SERIES - REAR COVER ASSY. (27) - REAR AXLE SYSTEM

1

302260A1

GEAR SET

Pinion Shaft and Gears, Rear Axle Cover, (Pinion Gear Not Shown)

1шт.

2

248118A1

TAPERED BEARING,88.9125 mm ID x 52.8625 mm

1шт.

3

248114A1

BEARING, CUP,200.01mm OD x 34.82mm W

1шт.

4

84245365

ACCESS COVER

Rear Axle, Incl 5

1шт.

5

837-12030

DOWEL,M12 x 30mm OAL

2шт.

6

86985636

ELBOW

Orificed, 5/16 x 3/8, Inc. 7

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

9

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

6шт.

10

234432A1

TUBE

Lubrication

1шт.

11

191440A1

BEARING CUP,140 mm OD x 28.4734 mm

1шт.

12

67190R91

BEARING ASSY,82.5627 mm ID x 36.6135 mm

1шт.

13

191713A1

SPACER

Thin

1шт.

14

191709A1

SHIM,0.076mm Thk

1шт.

14

191711A1

SHIM,0.101mm Thk

1шт.

14

191712A1

SHIM,0.130mm Thk

1шт.

14

220785A1

SHIM,84mm ID x 110mm OD x 0.5mm Thk

1шт.

15

228968A2

SPACER

Thick

1шт.

16

229515A1

RING, SNAP

M4

1шт.

17

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Incl 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

Incll 20

1шт.

20

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

21

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incll 22

2шт.

22

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

23

221579A1

PLUG,M22 x 1.5 ORB

Incll 24

2шт.

24

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

25

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

16шт.

26

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

14шт.

27

828-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

6шт.

28

226492A2

SHIM,0.076mm Thk

1шт.

28

226493A2

SHIM,393mm OD x 0.1mm Thk

1шт.

28

226494A2

SHIM,393mm OD x 0.13mm Thk

1шт.

28

226496A2

SHIM,0.508mm Thk

1шт.

29

238-6373

O-RING,0.21" Thk x 8.97" ID, -373, Cl 6, 90 Duro

1шт.

30

828-16180

BOLT,Hex, M16 x 2 x 180mm, Cl 10.9

6шт.

31

84605370

OIL SEAL

Pinion Shaft

1шт.

32

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

33

84371520

YOKE

Axle Drive, 8C

1шт.

34

178545A1

SHIM,25mm ID x 60mm OD x 0.076mm Thk

1шт.

34

178546A1

SHIM,25mm ID x 60mm OD x 0.101mm Thk

1шт.

34

178547A1

SHIM,25mm ID x 60mm OD x 0.130mm Thk

1шт.

34

220779A1

SHIM,25mm ID x 60mm OD x 0.5mm Thk

1шт.

35

228967A2

WASHER,25mm ID x 78mm OD x 10mm Thk

Plate, Yoke Retainer

1шт.

36

828-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

1шт.
