(27.100.09) - REAR AXLE HYDRAULIC LAYOUT, SERIES 315, 425 & 450 WITHOUT PTO

Запчасти Case IH STEIGER 400 (27.100.09) - REAR AXLE HYDRAULIC LAYOUT, SERIES 315, 425 & 450 WITHOUT PTO (27) - REAR AXLE SYSTEM

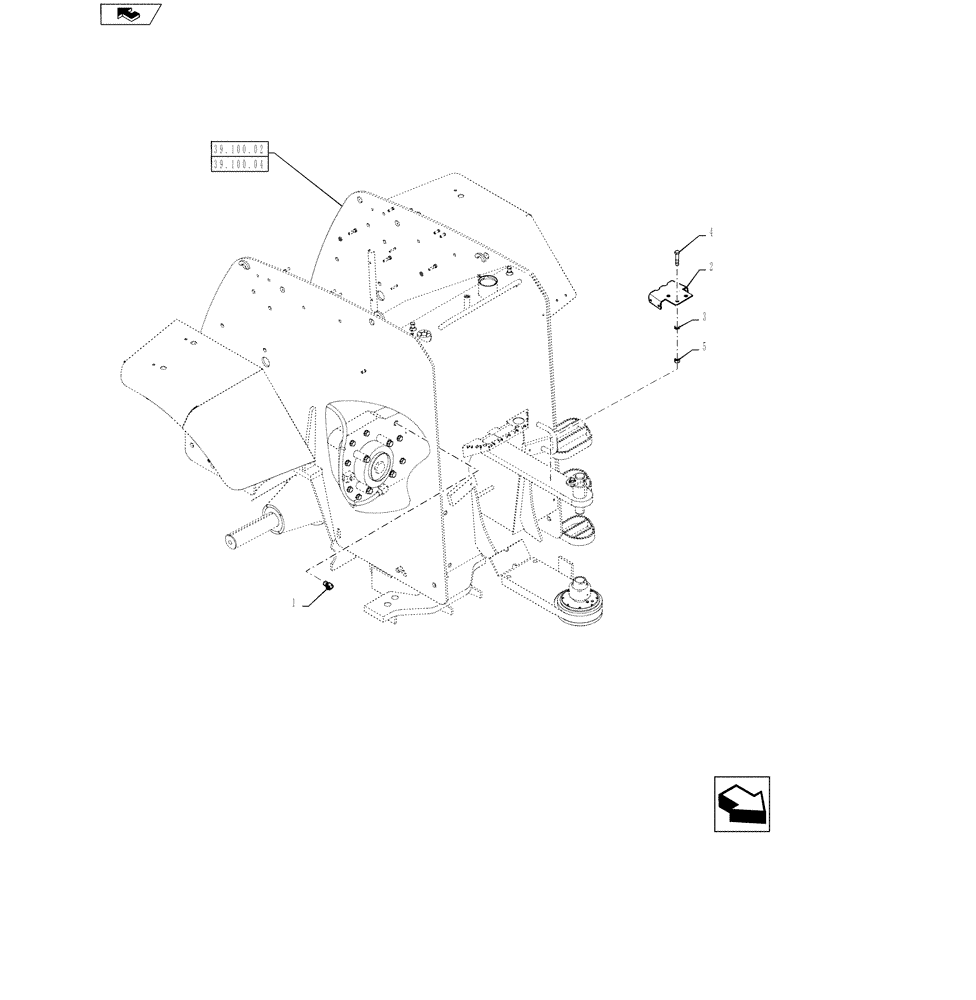

Схема запчастей Case IH STEIGER 400 - (27.100.09) - REAR AXLE HYDRAULIC LAYOUT, SERIES 315, 425 & 450 WITHOUT PTO (27) - REAR AXLE SYSTEM
4
39.100.04
39.100.02
3
home
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

1шт.

2

404604A1

BRACKET

Articulation Hose Hanger

1шт.

3

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

4

86577946

BOLT,Hex, M16 x 80mm, CL 10.9

4шт.

5

392530

NUT,M16, Cl 10

4шт.
