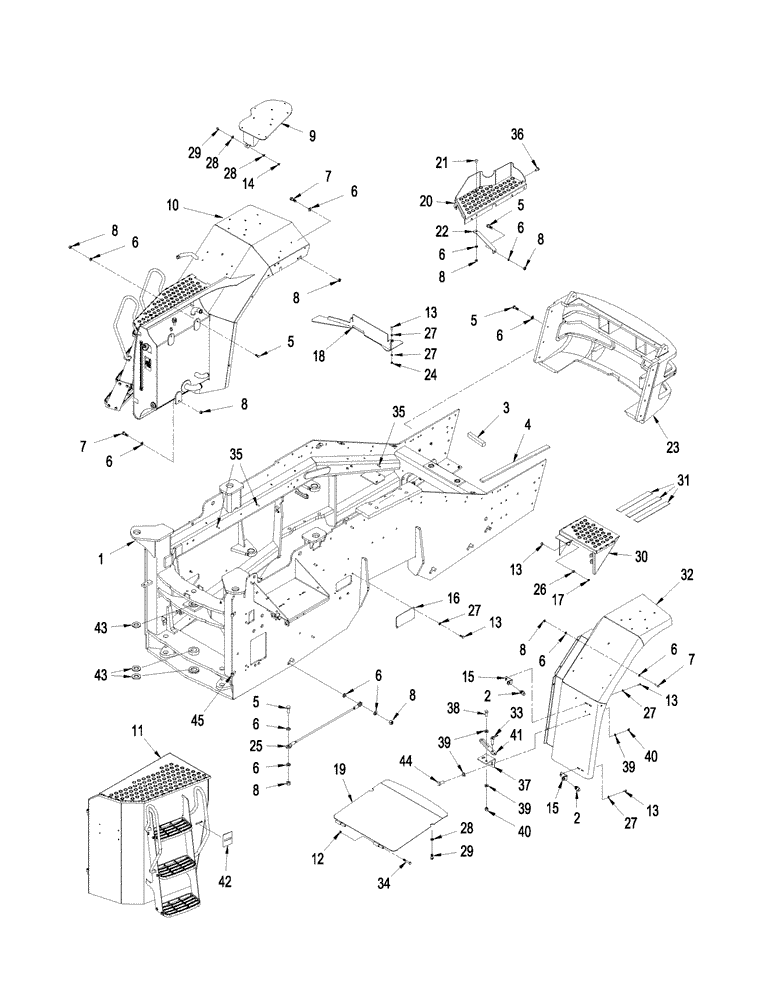

Запчасти Case IH STEIGER 385 (09-28) - FRONT FRAME, WHEEL TRACTOR, STEIGER 385 / 435 (09) - CHASSIS

1

87407119

FRAME ASSY

Front

1шт.

2

363226A1

BUMPER

Rubber

2шт.

3

396412A1

RUBBER STRIP

2шт.

4

328197A1

SEAL

3шт.

5

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

12шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

51шт.

7

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

11шт.

8

829-1412

NUT,M12, Cl 10.9

25шт.

9

87444725

SUPPORT

Air Intake

1шт.

10

NSS

NOT SOLD SEPARAT

Tank Assy, See Figure: 08-19

1шт.

11

NSS

NOT SOLD SEPARAT

Battery Door Assy, Right-Hand, See Figure: 09-31

1шт.

12

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

13

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

15

443357A1

BRACKET

Door Step

1шт.

16

87443717

COVER

Access

1шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

18

87386271

SHIELD

Trash

1шт.

19

87309871

DOOR COVER

Access

1шт.

20

87528060

STEP

1шт.

21

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

1шт.

22

87522173

GUSSET

1шт.

23

430739A1

BUMPER

Front Frame, See Figure: 09-36

1шт.

24

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

25

87372424

CABLE RETAINER

Retaining

1шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

14шт.

27

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

29

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

30

87316540

STEP

With Fender

1шт.

31

1-6835

ADHESIVE STRIP

2 x 9 in, Anti-Skid

3шт.

32

87663187

4WD FRONT FENDER

RH, Serial Range: -Z8F109701

1шт.

32

87723889

4WD FRONT FENDER

RH, Start Serial: Z8F109701

1шт.

33

132757

LINCH PIN,11.11mm OD x 44.45mm L

1шт.

34

827-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 10.9

1шт.

35

426285A1

STUD

Threaded

42шт.

36

384163A1

PLASTIC PLUG

1шт.

37

87591013

LOCKING PLATE

1шт.

38

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

39

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

8шт.

40

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

41

87591014

ADJUSTING PLATE

Door Lock

1шт.

42

87613511

DECAL

Protective, Lock Cover

1шт.

43

87591684

WASHER

Front Frame Articulation Hinge

3шт.

44

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

2шт.

45

448719A1

HINGE

Battery Door

2шт.
