Запчасти Case IH STEIGER 385 (07-10) - 500 SERIES AXLE - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK, QUADTRAC TRACTOR (07) - BRAKES

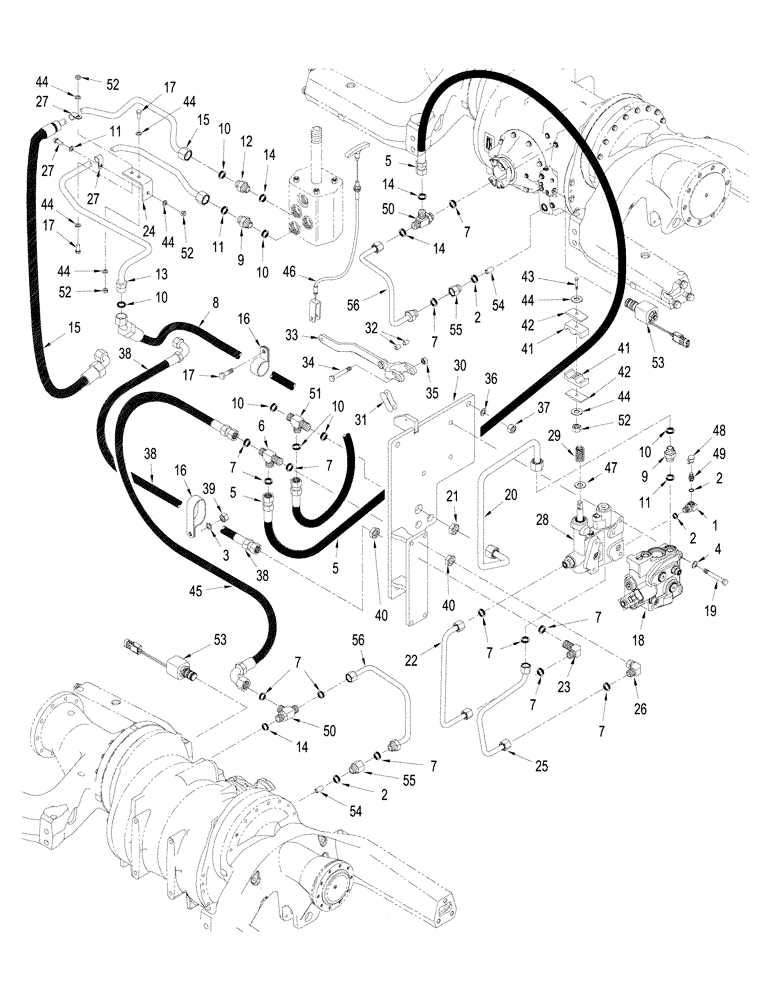

Схема запчастей Case IH STEIGER 385 - (07-10) - 500 SERIES AXLE - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK, QUADTRAC TRACTOR (07) - BRAKES
7
37
56
42
32
42
14
10
15
30
17
18
13
7
7
11
46
53
9
10
41
24
54
36
45
5
1
52
47
5
4
50
8
28
7
27
14
54
50
53
40
20
11
52
17
14
10
35
40
41
29
44
3
23
55
52
17
11
21
27
10
34
7
43
16
15
44
33
51
44
26
39
44
31
5
7
27
7
44
2
38
56
38
25
7
49
55
9
14
10
7
16
38
22
7
2
52
10
2
19
6
44
2
48
12

Артикул

Название

Примечание

Количество

1

428078A1

ELBOW

90, M14 or, Inc. 2

1шт.

2

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

5

383969A2

HOSE ASSY.

1845 mm (73 in)

1шт.

6

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 7

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

7шт.

8

87415316

HOSE ASSY.

2368 mm (93 in)

1шт.

9

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Inc. 10, 11

2шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

12

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 10, 14

1шт.

13

87345208

TUBE,15.90 mm OD

Brake Supply

1шт.

14

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

15

87365244

TUBE,15.9 mm OD

Return

1шт.

15

87610054

TUBE,15.9 mm OD

Return

1шт.

Arctic QUADTRAC Tractor Application

1шт.

16

515-24206

CLAMP,13/16", Insul, 7/16" Bolt

P-type

2шт.

17

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

18

87672094

VALVE

Regulator, See Figure: 08-15

1шт.

19

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

3шт.

20

449827A2

TUBE

Regulator to Mounting Plate Tee

1шт.

21

701-919

BHD LOCK NUT,1" - 14

1шт.

22

449796A1

TUBE

Tow Valve to Hydraulic Return

1шт.

23

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 7

1шт.

24

87345210

BRACKET

Mounting

1шт.

25

449798A1

TUBE

Lower Tow Valve to Mounting Plate Tee

1шт.

26

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 7

1шт.

27

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

P-type

2шт.

28

87679712

VALVE

Control, Tow Block, See Figure: 08-17

1шт.

29

361897A1

SPRING

1шт.

30

449830A1

PLATE ASSY.

Mounting, Tow Valve

1шт.

31

242-4412

CHAIN LINK

Tow Valve Arm

1шт.

32

392748A1

SPACER

2шт.

33

390918A3

ARM

Tow Valve

1шт.

34

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

1шт.

35

832-10406

NUT,M6 x 1, Cl 8

1шт.

36

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

37

829-1412

NUT,M12, Cl 10.9

3шт.

38

87414079

HOSE ASSY.

1298 mm (51 in)

1шт.

39

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

40

701-903

NUT,13/16" - 16

3шт.

41

50-2551T1

CLAMP

2шт.

42

50-2533T1

PLATE

2шт.

43

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

1шт.

44

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

45

352112A3

HOSE ASSY.

2336 mm (92")

1шт.

45

437267A1S

HOSE ASSY.

2336 mm (92")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

46

349863A2

CABLE

Tow Valve, See Figure: 08-18 for Mounting & Parts

1шт.

47

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 48, 49

1шт.

48

H434163

DUST CAP

1шт.

49

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic, Inc. 2

1шт.

50

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 7, 14

2шт.

51

701-429

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Inc. 2

1шт.

52

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

53

384977A1

VALVE

Solenoid, Differential Lock, See Figure: 07-12

2шт.

341195A1

ORIFICE

Inc. 2, 7, 54 & 55

2шт.

54

NSS

NOT SOLD SEPARAT

Screw, Set, Hex Soc. M8 x 12, Cup Pt.

2шт.

55

NSS

NOT SOLD SEPARAT

Connector, 13/16" fcsl x m14 orb

2шт.

56

413340A1

TUBE

Jumper

2шт.

Выбрано товаров: 62
