Запчасти Case IH STEIGER 380 (08-12) - 500 SERIES AXLE HYDRAULICS - AIR AND LUBRICATION CIRCUIT, QUADTRAC TRACTOR (08) - HYDRAULICS

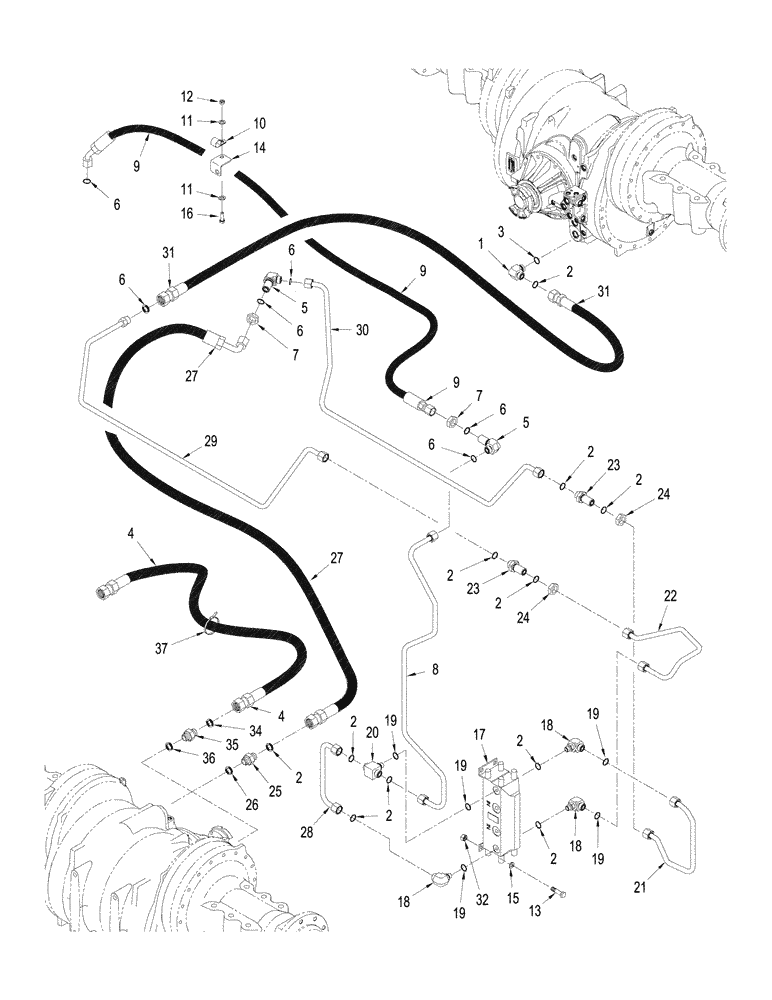

Схема запчастей Case IH STEIGER 380 - (08-12) - 500 SERIES AXLE HYDRAULICS - AIR AND LUBRICATION CIRCUIT, QUADTRAC TRACTOR (08) - HYDRAULICS
3
2
37
8
2
1
17
7
6
19
23
14
11
19
22
36
2
18
25
19
24
6
2
27
13
2
2
9
20
26
31
2
5
28
23
2
4
19
15
35
6
6
10
4
24
34
31
9
18
2
29
5
16
9
32
21
6
11
2
27
19
12
6
18
7

Артикул

Название

Примечание

Количество

1

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. 2, 3

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

437144A1

HOSE ASSY.

1733 mm (68 in)

1шт.

4

87424329

HOSE ASSY.

1733 mm (68")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

5

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 6, 7

2шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

7

701-903

NUT,13/16" - 16

1шт.

8

87381645

HYD TUBE,9.4 mm ID x 12.7 mm OD x 736, 35 mm L

Air Supply, Pump Motor

1шт.

9

86992953

HOSE ASSY.

1715 mm (67-1/2")

1шт.

9

87424333

HOSE ASSY.

1715 mm (67-1/2")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

10

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

3шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

13

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

14

416102A1

SUPPORT

Bracket

1шт.

15

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

17

434727A1

MOTOR-PUMP

Axle Air / Lube

2шт.

16

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

18

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 2, 19

3шт.

19

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

3шт.

20

87323932

FITTING

Tee, 1/2 or x fc sl, Inc. 2, 19

1шт.

21

449817A2

TUBE

1шт.

22

86992542

TUBE,12.70 mm OD

1шт.

23

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 2

2шт.

24

701-903

NUT,13/16" - 16

2шт.

25

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2, 26

1шт.

26

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

27

87400117

HOSE ASSY.,12.7mm ID x 2299mm L

2299 mm (90-1/2 in)

1шт.

Used On Applications Without PTO

1шт.

28

449794A1

TUBE

1шт.

29

449825A1

TUBE

Air Lube

1шт.

30

449823A1

TUBE

Return, Charged Pressure

1шт.

31

449805A1

HOSE ASSY.

2413 mm (95 in)

4шт.

31

87424330

HOSE ASSY.

2413 mm (95")

1шт.

Arctic QUADTRAC Tractor Application

1шт.

32

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

35

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 34, 36

2шт.

36

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

37

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

Выбрано товаров: 43
