Запчасти Case IH STEIGER 380 (05.100.03[01]) - FILTERS, 380 (00) - PICTORIAL INDEX

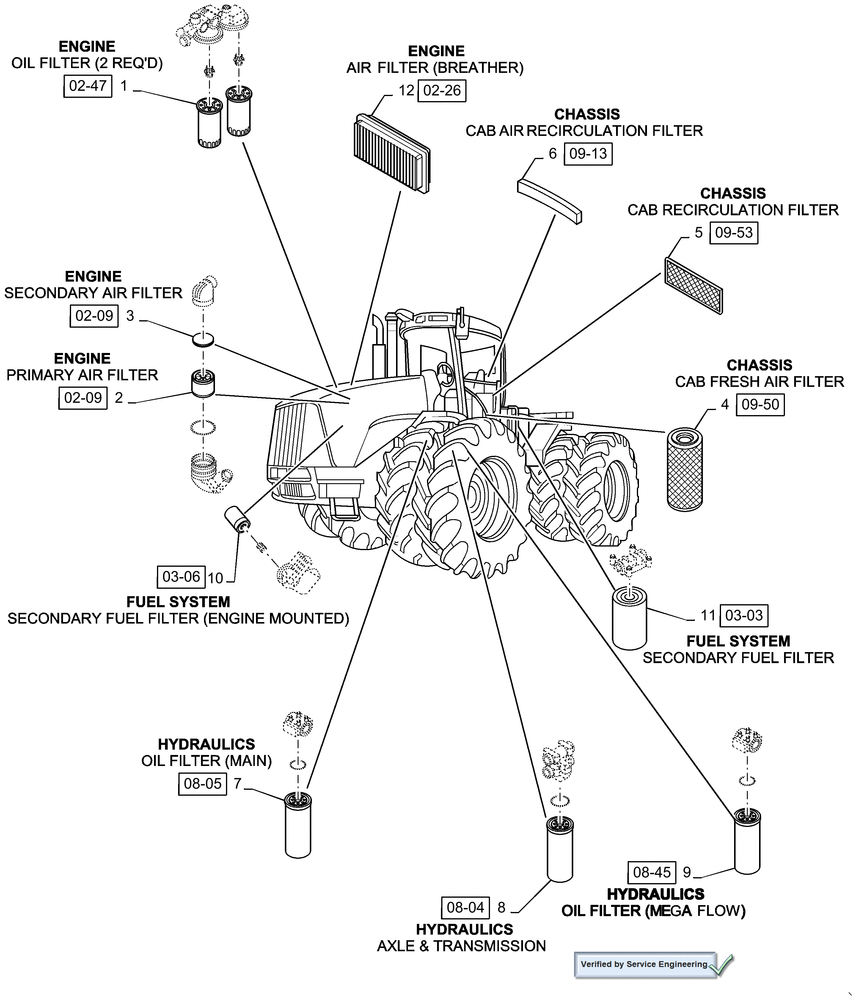

Схема запчастей Case IH STEIGER 380 - (05.100.03[01]) - FILTERS, 380 (00) - PICTORIAL INDEX
02-09
9
03-03
4
12
7
6
10
03-06
09-50
11
02-26
08-04
02-09
09-13
1
08-45
2
02-47
5
3
8
09-53
08-05

Артикул

Название

Примечание

Количество

1

84346773

ENGINE OIL FILTER,110mm OD x 212mm L, M30 x 2

Spin-On, 2 Req'd

1шт.

2

87727665

AIR FILTER

Primary

1шт.

3

87443714

AIR FILTER

Secondary

1шт.

4

259288A1

CAB FILTER

Fresh Air

1шт.

5

87409377

FILTER

Cab, Recirculation

1шт.

6

87409368

CAB FILTER

Recirculation

1шт.

7

87404986

HYDRAULIC OIL FILTER

Main

1шт.

8

1346028C1

HYDRAULIC OIL FILTER

Axle and Transmission

1шт.

9

1346028C1

HYDRAULIC OIL FILTER

High Flow

1шт.

10

84818745

FUEL FILTER

Secondary, Engine Mounted

1шт.

11

87410186

FUEL FILTER

Primary, Frame Mounted

1шт.

12

504209107

AIR FILTER

Engine Breather

1шт.

Выбрано товаров: 12
