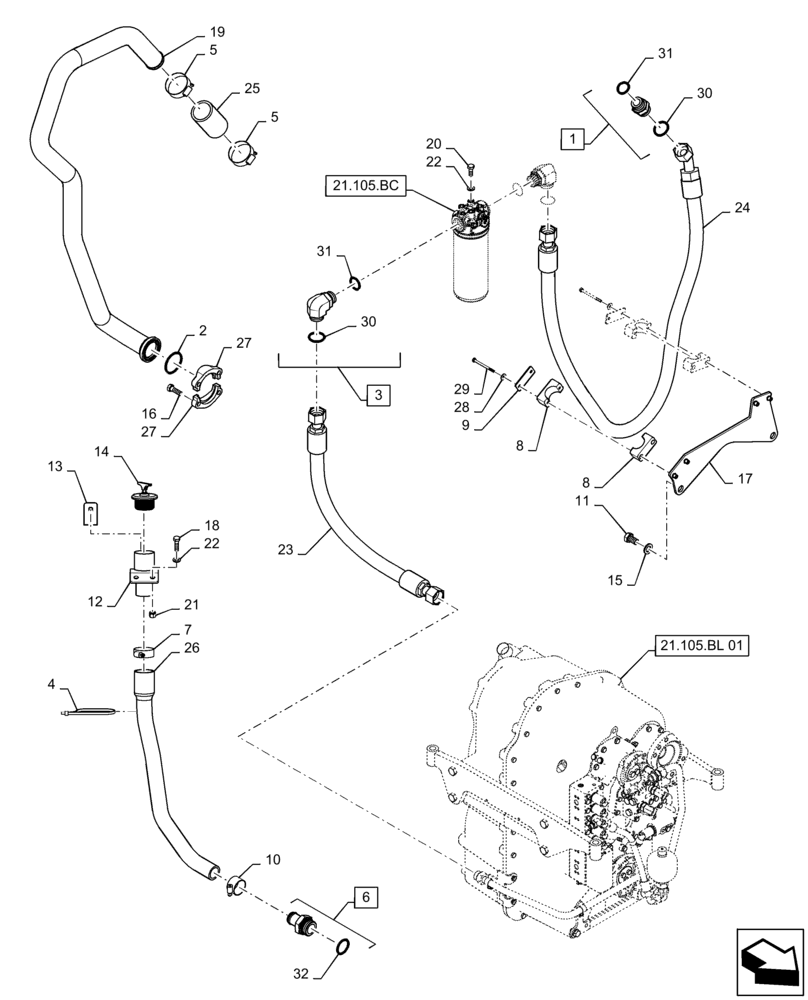

Запчасти Case IH STEIGER 370 (21.105.BL[02]) - TRANSMISSION LUBRICATION LINES, REAR, BSN ZFF308000 (21) - TRANSMISSION

1

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 30 - 31

1шт.

2

86637769

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

3

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 30 - 31

2шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

15"

1шт.

5

47757203

HOSE CLAMP,60.3mm - 68.3mm, Spring

2шт.

6

87340823

HYD CONNECTOR

Transmission Fill, Incl 32

1шт.

7

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

1шт.

8

429384A1

CLAMP,40mm ID x 30mm W x 71mm L

Hose

4шт.

9

429414A1

COVER PLATE,70mm L x 30mm W x 3mm Thk

2шт.

10

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

1шт.

11

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

2шт.

12

87646809

TUBE,46.23 mm L

Transmission Fill

1шт.

13

87646822

BRACKET

Fill Cap Lock

1шт.

14

325737A1

CAP

Transmission Fill

1шт.

15

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

16

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

17

84422105

BRACKET

Hose Support

1шт.

18

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

19

84283535

HYD TUBE

Lube Suction

1шт.

20

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

23

84179184

HOSE ASSY.

Filter To Regulator

1шт.

24

84422101

HOSE ASSY.,25.4mm ID x 1632mm L, SAE 100R1

Transmission Supply To Filter

1шт.

25

427140A1

HOSE,50.80 mm ID x 101.60 mm

1шт.

26

84425087

HOSE

Transmission Fill

1шт.

27

A14141

FLANGE

Clamp

2шт.

28

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

29

11030431

BOLT,Hex, M6 x 75mm, Cl 10.9

4шт.

30

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

3шт.

31

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

3шт.

32

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.
