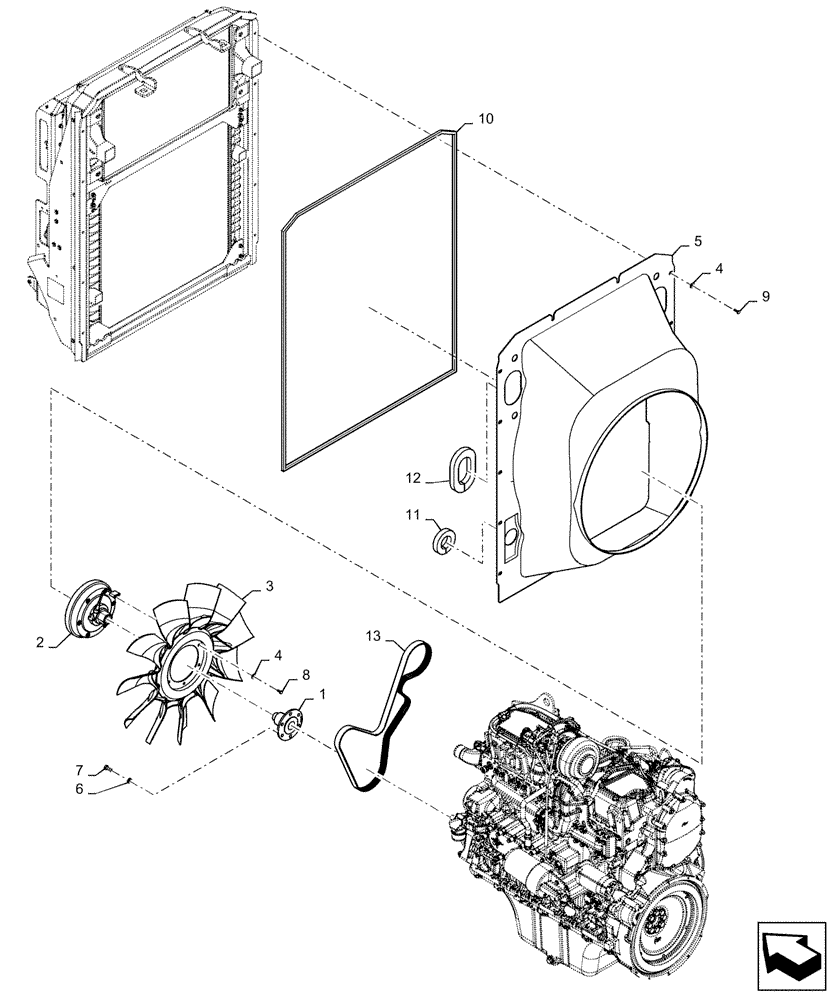

Запчасти Case IH STEIGER 370 (10.414.AC[01]) - FAN DRIVE - 370 (10) - ENGINE

1

84362740

SHAFT

Viscous Fan Drive

1шт.

2

84559830

DRIVE

Electronic Viscous Fan 9L

1шт.

3

84261183

FAN,11 Blades, 762mm OD

762mm OD, CW Rotation

1шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

16шт.

5

84495310

SHROUD

Fan 9L

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

7

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

8

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

6шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

10шт.

10

84221537

RUBBER SEAL,4800mm L

Foam, CAC Outlet

1шт.

11

84221540

SEAL

Foam, Radiator Outlet

2шт.

12

84379105

GASKET

Foam, CAC

2шт.

13

47430047

BELT

Poly-V, Fan Belt 9L

1шт.
