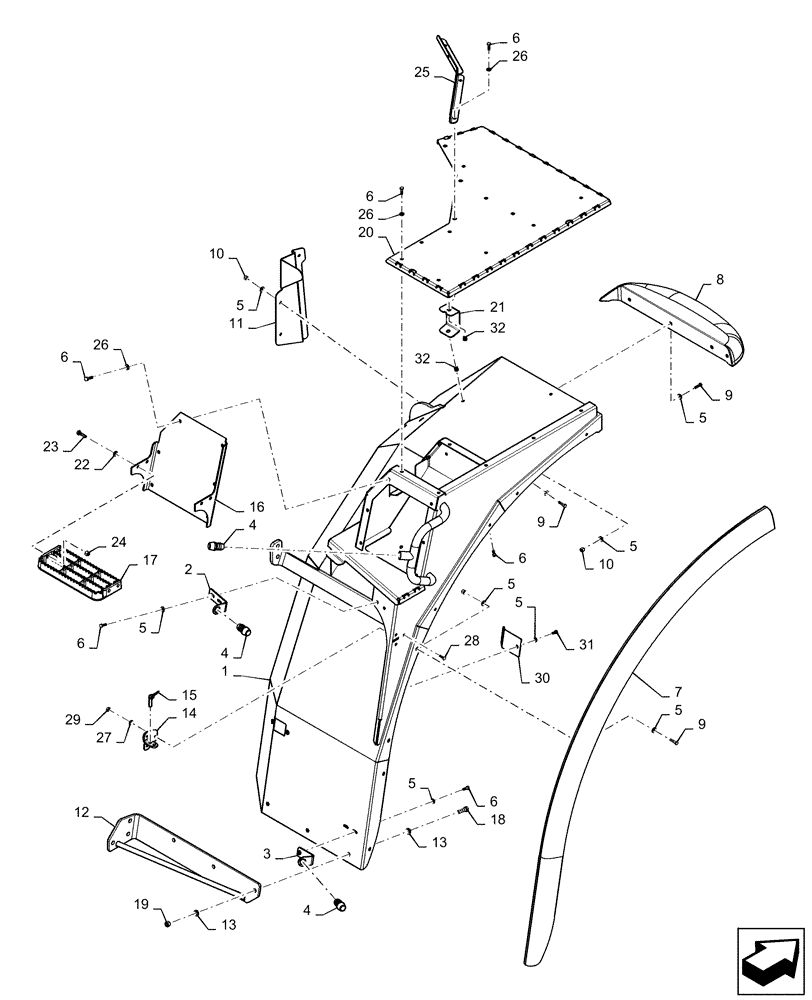

Запчасти Case IH STEIGER 370 (90.116.AC[03]) - RH FRONT FENDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84555317

FRONT FENDER

RH

1шт.

2

84274611

BRACKET

Door Stop, Upper

1шт.

3

84184232

BRACKET, SUPPORTING

Door Stop, Lower

1шт.

4

363226A1

BUMPER

Door Stop

3шт.

5

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

34шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

23шт.

7

84279817

TRIM

RH Front Fender

1шт.

8

84279820

TRIM PANEL

RH Front Fender

1шт.

9

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

14шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

14шт.

11

47419593

SHIELD

Debris

1шт.

12

84385309

SUPPORTING ARM

RH Fender, Lower

1шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

14

84476138

BRACKET

Pin Support

1шт.

15

47856048

LINCH PIN,11.11mm OD x 44.45mm L

1шт.

16

47541301

SUPPORT

Step

1шт.

17

47488965

STEP

Aluminum

1шт.

18

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

19

829-1412

NUT,M12, Cl 10.9

3шт.

20

84558062

PLATFORM

RH Fender Step

1шт.

21

84559827

SUPPORT

RH Fender Step

1шт.

22

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

23

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

25

84565404

GUARD

RH Fender Step

1шт.

26

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

19шт.

27

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

3шт.

28

811-6025

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 25mm, Cl 8.8

3шт.

29

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

30

84410270

ACCESS COVER

Plate

1шт.

31

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

32

408566A1

INSERT,M8

Threaded, M8

7шт.
