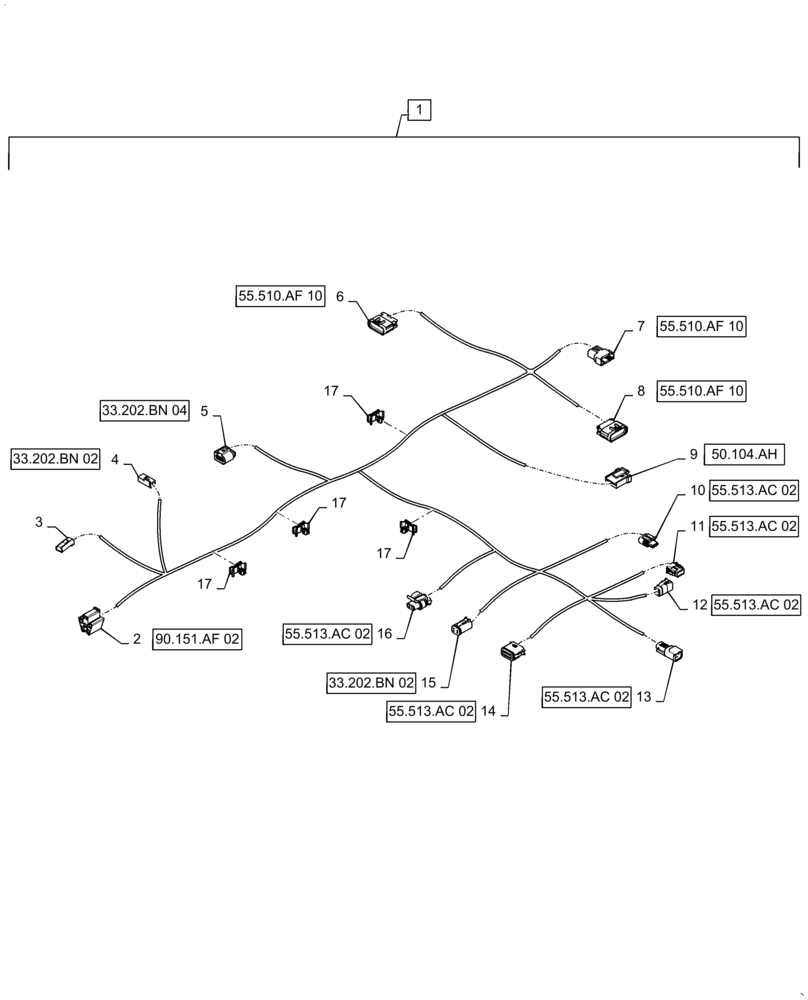

Запчасти Case IH STEIGER 370 (55.513.AC[04]) - FRONT DASH PANEL HARNESS, ASN ZFF308001 (55) - ELECTRICAL SYSTEMS

1

47721244

WIRE HARNESS

Front Dash, Incl 2 - 17

1шт.

2

87693713

ELEC CONNECTOR,Female, 6 Cavities

Key Switch, C096

1шт.

2

87697660

TERMINAL

Key Switch, C096

3шт.

2

87709400

ELEC. TERMINAL PIN

Key Switch, C096

1шт.

3

87688695

ELEC CONNECTOR,Female, 1 Cavity

Ignition Switch Ground, C625

1шт.

3

87697660

TERMINAL

Ignition Switch Ground, C625

1шт.

4

87697541

ELEC CONNECTOR

Brake Light Switch, C627

1шт.

4

87705061

RETAINER

Lock, Brake Light Switch, C627

1шт.

4

87693329

TERMINAL

Brake Light Switch, C627

2шт.

5

87702265

ELEC CONNECTOR

Decel Sensor, C629

1шт.

5

87495862

TERMINAL CONNECTOR,Tin, 0.50 - 1.00mm

Decel Sensor, C629

6шт.

5

84129570

SEAL

Decel Sensor, C629

6шт.

5

84129571

PLUG

Decel Sensor, C629

2шт.

6

87698288

ELEC CONNECTOR

To Cab Harness, C094F

1шт.

6

388686A1

CONNECTOR, ELEC

To Cab Harness, C094F

15шт.

6

84146448

ELEC CONNECTOR

To Cab Harness, C094F

1шт.

7

223682A1

ELEC CONNECTOR

To Cab Harness, C095F

1шт.

7

87705201

WEDGE

To Cab Harness, C095F

1шт.

7

87697946

CONNECTOR, ELEC

To Cab Harness, C095F

9шт.

7

84807680

PLUG

To Cab Harness, C095F

3шт.

8

87696550

ELEC CONNECTOR

To Cab Harness, C093F

1шт.

8

87688853

WIRE CONNECTOR

Lock, To Cab Harness, C093F

1шт.

8

388687A1

CONNECTOR, ELEC

To Cab Harness, C093F

1шт.

8

388686A1

CONNECTOR, ELEC

To Cab Harness, C093F

15шт.

9

198722A1

CONNECTOR, ELEC

Vent Motor, C635

1шт.

9

222486A1

CONTACT

Vent Motor, C635

3шт.

10

198550A1

CONNECTOR, ELEC

Clutch Potentiometer, C628

1шт.

10

221382A1

CONNECTOR, ELEC,Tin, 0.75mm

Clutch Potentiometer, C628

3шт.

11

87700332

ELEC CONNECTOR

Shuttle Lever, C630M

1шт.

11

87705584

ELEC CONNECTOR

Lock, Shuttle Lever, C630M

1шт.

11

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Shuttle Lever, C630M

8шт.

12

87700107

ELEC CONNECTOR

Shuttle Lever, C631M

1шт.

12

87705582

ELEC CONNECTOR

Shuttle Lever, C631M

1шт.

12

87697866

TERMINAL,Female, Nickel, 0.50 - 1.00mm

Shuttle Lever, C631M

5шт.

12

84807680

PLUG

Shuttle Lever, C631M

1шт.

13

87696547

ELEC CONNECTOR,Female, 2 Cavities

Steering Rotation, C633F

1шт.

13

87696585

LOCKING TAB,Wedge Lock, 2-Pin

Lock, Steering Rotation, C633F

1шт.

13

87697946

CONNECTOR, ELEC

Steering Rotation, C633F

2шт.

14

87696075

ELEC CONNECTOR

Head Light, Turn Signal, Horn, C632M

1шт.

14

87695651

LOCKING TAB,Wedge Lock

Head Light, Turn Signal, Horn, C632M

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Head Light, Turn Signal, Horn, C632M

10шт.

14

84068583

PLUG,12 - 16 Ga, White

Head Light, Turn Signal, Horn, C632M

2шт.

15

87694153

CONTACT HOUSING,Female, 4 Cavities

Steering Wheel Position Sensor, C638

1шт.

15

84074640

LOCKING TAB,Wedge Lock

Lock, Steering Wheel Position Sensor, C638

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Steering Wheel Position Sensor, C638

4шт.

16

87693821

ELEC CONNECTOR,Female, 2 Cavities

Clutch Switch, C626

1шт.

16

87705073

STOP LOCK

Clutch Switch, C626

1шт.

16

87688852

ELEC. TERMINAL PIN

Clutch Switch, C626

2шт.

16

87689629

SEAL

Clutch Switch, C626

2шт.

17

392699A1

FASTENER

Push

9шт.
