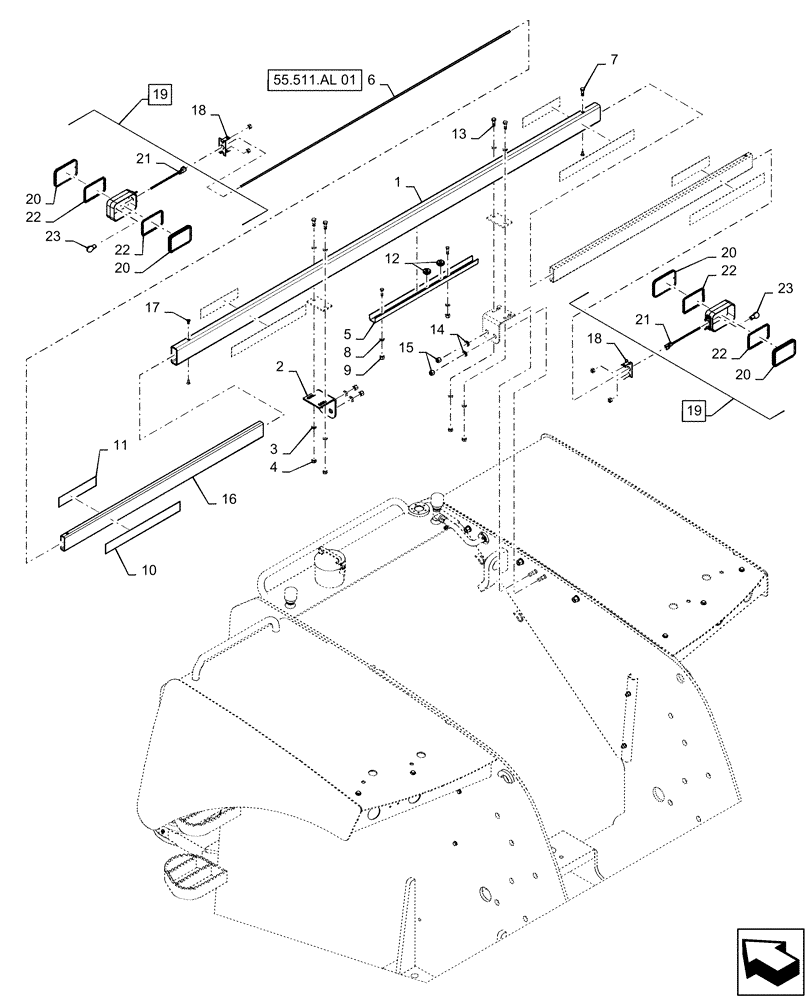

Запчасти Case IH STEIGER 370 (55.404.BD[01]) - MARKER LIGHT, NA (55) - ELECTRICAL SYSTEMS

1

87348484

TUBE

Marker Lights

1шт.

2

84350097

BRACKET, SUPPORTING

Marker Lights

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

5

402168A1

CHANNEL

Wire Guard

1шт.

6

87520424

HARNESS

Marker Light

1шт.

7

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

10

297221A1

DECAL

Red And Orange

4шт.

11

297223A1

DECAL

Yellow Retroreflective

4шт.

12

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

2шт.

13

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

15

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

16

87348486

TUBE,1227.50 mm L

2шт.

17

87309531

HEX SOC SCREW,FLAT, M5 x 0.8 x 12mm, Cl 10.9

M5 x 0.8mm

4шт.

18

362496A1

BRACKET

Marker Light Mount

2шт.

19

367321A1

LAMP

Incl 20 - 23

2шт.

20

232212A1

LENS,135.8mm L x 90mm W, Amber

4шт.

21

222136A1

ELEC CONNECTOR,Male, 2 Pin

2шт.

22

233561A1

O-RING,0.07" Thk x 4379" ID, -48, 70 Duro

4шт.

23

A41264

BULB,#1156, 12V

2шт.
