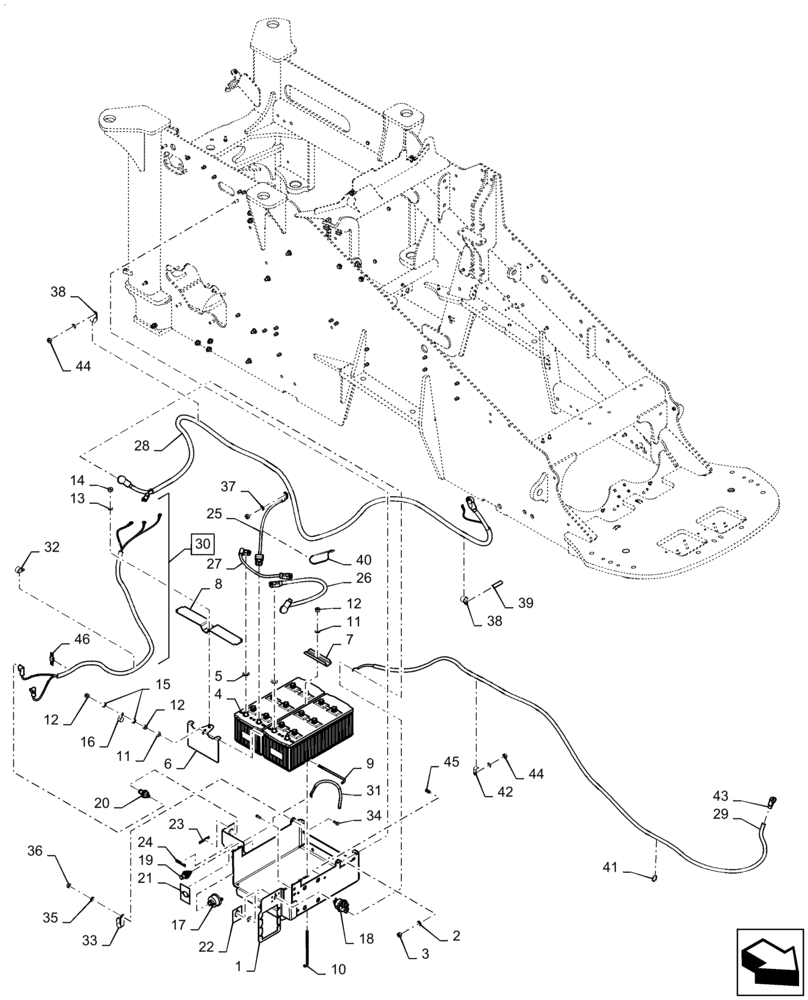

Запчасти Case IH STEIGER 370 (55.302.AI[02]) - BATTERY - TRAY & CABLES, W/ CAB SUSPENSION, 370 (55) - ELECTRICAL SYSTEMS

1

47377863

TRAY

Assembly

1шт.

2

892-11012

LOCK WASHER,M12

7шт.

3

829-1412

NUT,M12, Cl 10.9

8шт.

4

BCH4DLTW

WET BATTERY,BCI 4DLT, 12V, 1000CCA

12V, 1000CCA, US

2шт.

4

CCH4DLTW

WET BATTERY,BCI 4DLT, 12V, 1000CCA

12V, 1000CCA, Canada Only

2шт.

5

87637103

WASHER

Battery Terminal

2шт.

6

84346930

BRACKET

Battery Hold Down

1шт.

7

84213124

BRACKET

Battery Hold Down

1шт.

8

84315779

BRACKET

Battery Post Shield

1шт.

9

365357A1

ROD

Battery Hold Down

1шт.

10

47550268

THREADED ROD

Battery Hold Down

1шт.

11

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

13

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

14

832-46406

NUT,M6 x 1, Cl 8

1шт.

15

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

3шт.

16

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

17

87458467

ROTARY SWITCH

Master Battery Disconnect

1шт.

18

87572750

SWITCH

Battery Disconnect

1шт.

19

84258928

TERMINAL CONNECTOR

Jump Start, Negative

1шт.

20

1964554C1

TERMINAL

Jump Start, Positive

1шт.

21

47537982

DECAL

12V Battery Disconnect

1шт.

22

47377822

DECAL

24V Battery Disconnect

1шт.

23

47537975

DECAL

Positive

1шт.

24

47537970

DECAL

Negative

1шт.

25

84249433

CABLE

Chassis Ground

1шт.

26

47377877

CABLE

24V Power

1шт.

27

84158325

CABLE

12V Power

1шт.

28

47377472

CABLE

Starter

1шт.

29

47391009

CABLE

Alternator

1шт.

30

84151624

CABLE

Cab Power And Ground, Incl 46

1шт.

31

84199726

CABLE

12V Disconnect Jumper

1шт.

32

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

33

L111928

CLAMP

Double

1шт.

34

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

35

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

36

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

37

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

38

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

4шт.

39

87447010

SPACER

Auxiliary Cover

1шт.

40

L18331

CABLE TIE,375.9mm L, Nylon, Black

15"

1шт.

41

435437A1

CABLE TIE,3/16" x 7 1/4"

1шт.

42

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

43

47554509

BOOT

Alternator Cable

1шт.

44

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

45

84323044

THREADED INSERT,1/4" - 20

4шт.

46

87455597

FUSE,200A

Cab Power

1шт.
