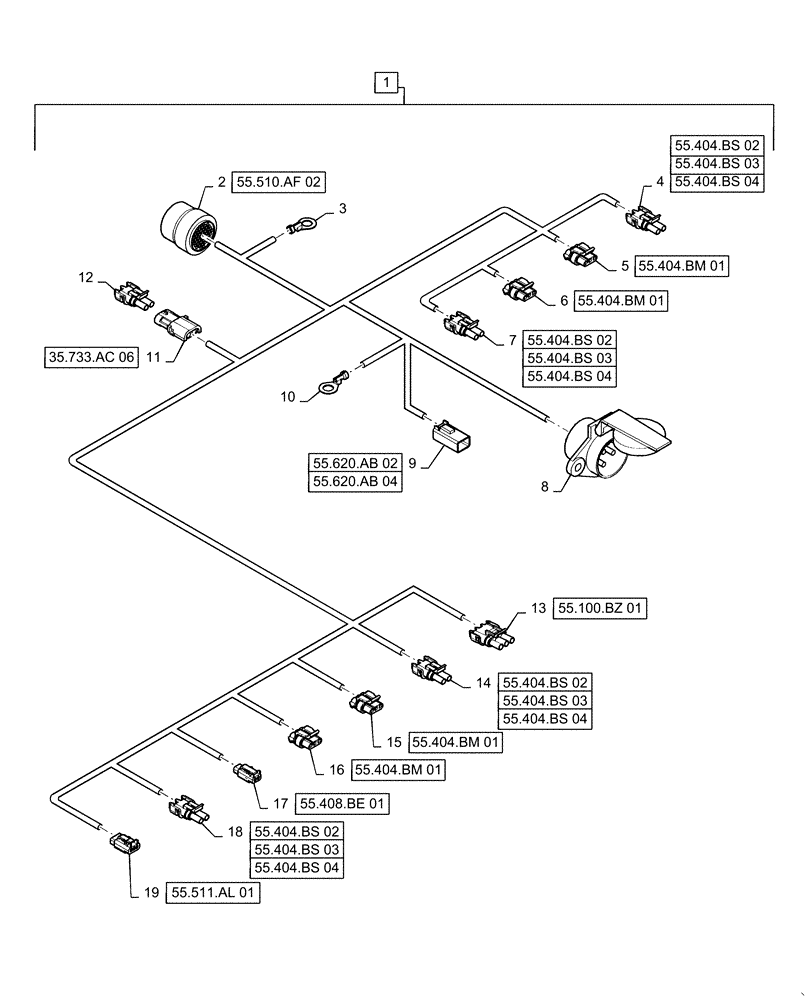

Запчасти Case IH STEIGER 370 (55.100.BZ[03]) - REAR FRAME HARNESS (55) - ELECTRICAL SYSTEMS

1

84477937

WIRE HARNESS

Rear Frame, Incl 2 - 19

1шт.

2

87696948

MULTIPOLE CONNECTOR,Male, 29 Pole

To Cab Harness, C002M

1шт.

3

NSS

NOT SOLD SEPARAT

M10 Ring Terminal, Chassis Ground, C200, Incl In 1

1шт.

4

245482C1

ELEC CONNECTOR,2 Pin

LH Outer Field Lamp, C213M

1шт.

5

87688716

ELEC CONNECTOR,Female, 3 Cavities

Left Brake Lamp, C214

1шт.

6

87688716

ELEC CONNECTOR,Female, 3 Cavities

Left Tail Lamp, C239

1шт.

7

245482C1

ELEC CONNECTOR,2 Pin

LH Inner Field Lamp, C215M

1шт.

8

121645C1

MULTIPOLE CONNECTOR,7 Pin

Trailer Connector, C228

1шт.

9

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

To Rear Remote Harness, C222M

1шт.

10

NSS

NOT SOLD SEPARAT

M10 Ring Terminal, Ground, C225, Incl In 1

1шт.

11

245483C1

ELEC CONNECTOR,Male, 2 Pin

Differential Lock Solenoid, C212F

1шт.

12

245482C1

ELEC CONNECTOR,2 Pin

Dust Cap, DC212M

1шт.

12

87686742

PLUG

Dust Cap, DC212M

2шт.

13

245484C1

ELEC CONNECTOR,3 Pin

Fuel Sender, C216M

1шт.

14

245482C1

ELEC CONNECTOR,2 Pin

RH Inner Field Lamp, C217M

1шт.

15

87688716

ELEC CONNECTOR,Female, 3 Cavities

Right Brake Lamp, C218

1шт.

16

87688716

ELEC CONNECTOR,Female, 3 Cavities

Right Tail Lamp, C240

1шт.

17

222135A1

CONNECTOR, ELEC

Backup Alarm, C219M

1шт.

18

245482C1

ELEC CONNECTOR,2 Pin

RH Outer Field Lamp, C220M

1шт.

19

276424A1

ELEC CONNECTOR,Female, 3 Pin

Side Marker Lamps, C221M

1шт.
