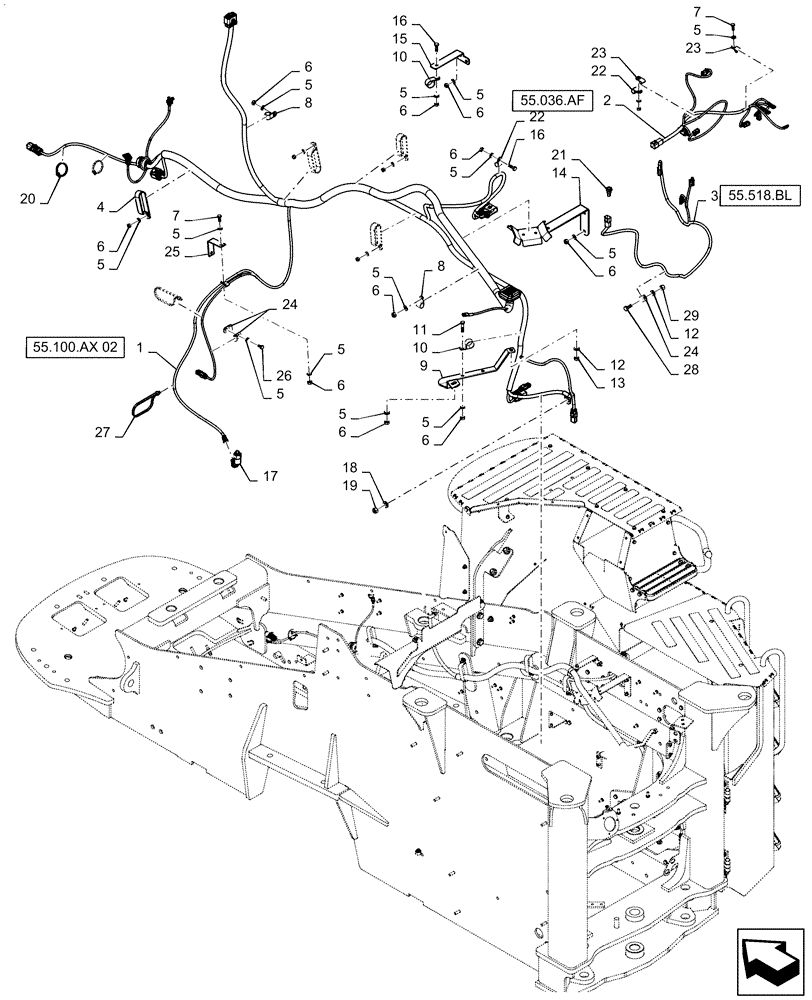

Запчасти Case IH STEIGER 370 (55.100.AX[01]) - FRONT FRAME HARNESS MOUNTING, W/O CAB SUSPENSION, BSN ZFF308000 (55) - ELECTRICAL SYSTEMS

1

47434308

WIRE HARNESS

Front Frame, W/O Cab Suspension

1шт.

2

84250841

HARNESS

Hydraulic Sub Assembly

1шт.

3

84297600

HARNESS

Window Washer

1шт.

4

87561071

CLAMP

Double

5шт.

5

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

25шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

19шт.

7

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

4шт.

9

84427703

BRACKET

Rear Cab Wiring

1шт.

10

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

2шт.

11

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

1шт.

12

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

14

47394840

BRACKET

Cab Wiring Cradle

1шт.

15

84383836

BRACKET

Harness

1шт.

16

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

17

47655851

PRESSURE SWITCH

Axle Lube Pressure

1шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

19

829-1412

NUT,M12, Cl 10.9

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

7шт.

21

87521424

TEMPERATURE SENDER

Hydraulic Oil

1шт.

22

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

23

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

24

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

4шт.

25

416512A1

BRACKET

Harness Hanger

1шт.

26

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

27

L18331

CABLE TIE,375.9mm L, Nylon, Black

15"

2шт.

28

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

29

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
