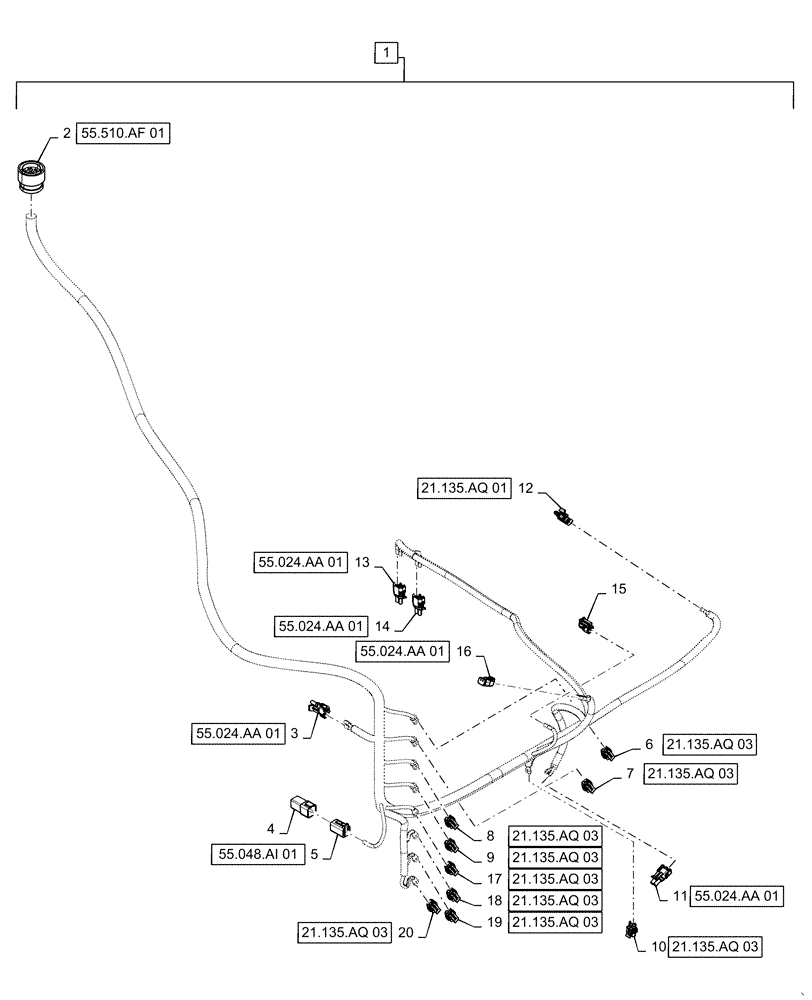

Запчасти Case IH STEIGER 370 (55.024.AA[02]) - TRANSMISSION HARNESS, BSN ZFF308000 (55) - ELECTRICAL SYSTEMS

1

84195943

WIRE HARNESS

Engine, Incl 2 - 20

1шт.

2

84177901

ELEC CONNECTOR

To Cab Harness, C005M

1шт.

2

87695623

ELEC. TERMINAL PIN

To Cab Harness, C005M

24шт.

2

84807680

PLUG

To Cab Harness, C005M

7шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

Input Shaft, C513

1шт.

3

87692856

CABLE TERMINAL

Input Shaft, C513

2шт.

3

87680701

SEAL

Input Shaft, C513

2шт.

4

87694152

CONTACT HOUSING,Male, 6 Pole

Dust Cap, DC520F

1шт.

4

84068583

PLUG,12 - 16 Ga, White

Dust Cap, DC520F

6шт.

5

87694112

ELEC CONNECTOR,Female, 6 Pole

To PTO Harness, C520M

1шт.

5

87695291

COLLAR

To PTO Harness, C520M

5шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

To PTO Harness, C520M

1шт.

6

82012083

WIRE CONNECTOR,Female

First Shaft Front Gear, C501

1шт.

6

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

First Shaft Front Gear, C501

2шт.

6

82012084

SEAL,1.4mm ID

First Shaft Front Gear, C501

2шт.

7

82012083

WIRE CONNECTOR,Female

First Shaft Middle Gear, C502

1шт.

7

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

First Shaft Middle Gear, C502

2шт.

7

82012084

SEAL,1.4mm ID

First Shaft Middle Gear, C502

2шт.

8

82012083

WIRE CONNECTOR,Female

First Shaft Rear Gear, C503

1шт.

8

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

First Shaft Rear Gear, C503

2шт.

8

82012084

SEAL,1.4mm ID

First Shaft Rear Gear, C503

2шт.

9

82012083

WIRE CONNECTOR,Female

Second Shaft Front Gear, C504

1шт.

9

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Second Shaft Front Gear, C504

2шт.

9

82012084

SEAL,1.4mm ID

Second Shaft Front Gear, C504

2шт.

10

82012083

WIRE CONNECTOR,Female

Fourth Shaft Front Gear, C507

1шт.

10

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Fourth Shaft Front Gear, C507

2шт.

10

82012084

SEAL,1.4mm ID

Fourth Shaft Front Gear, C507

2шт.

11

87692855

CONTACT HOUSING,Male, 2 Cavities

Output Shaft, Speed Sensor, C515

1шт.

11

87692856

CABLE TERMINAL

Output Shaft, Speed Sensor, C515

2шт.

11

87680701

SEAL

Output Shaft, Speed Sensor, C515

2шт.

12

87695582

ELEC CONNECTOR,Female, 2 Pole

Lube, C514

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Lube, C514

2шт.

13

87692855

CONTACT HOUSING,Male, 2 Cavities

Fourth Shaft Gear, Speed Sensor, C509

1шт.

13

87692856

CABLE TERMINAL

Fourth Shaft Gear, Speed Sensor, C509

2шт.

13

87680701

SEAL

Fourth Shaft Gear, Speed Sensor, C509

2шт.

14

87692855

CONTACT HOUSING,Male, 2 Cavities

Third Shaft Gear, Speed Sensor, C506

1шт.

14

87692856

CABLE TERMINAL

Third Shaft Gear, Speed Sensor, C506

2шт.

14

87680701

SEAL

Third Shaft Gear, Speed Sensor, C506

2шт.

15

84078681

WIRE CONNECTOR,Female

System Pressure Sensor, C517

1шт.

15

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

System Pressure Sensor, C517

3шт.

16

87695582

ELEC CONNECTOR,Female, 2 Pole

Transmission Oil Pump, C142

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Transmission Oil Pump, C142

2шт.

17

82012083

WIRE CONNECTOR,Female

Second Shaft Rear Gear, C505

1шт.

17

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Second Shaft Rear Gear, C505

2шт.

17

82012084

SEAL,1.4mm ID

Second Shaft Rear Gear, C505

2шт.

18

82012083

WIRE CONNECTOR,Female

Fourth Shaft Rear Gear, C508

1шт.

18

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Fourth Shaft Rear Gear, C508

2шт.

18

82012084

SEAL,1.4mm ID

Fourth Shaft Rear Gear, C508

2шт.

19

82012083

WIRE CONNECTOR,Female

Fifth Shaft Final Gear, C510

1шт.

19

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Fifth Shaft Final Gear, C510

2шт.

19

82012084

SEAL,1.4mm ID

Fifth Shaft Final Gear, C510

2шт.

20

82012083

WIRE CONNECTOR,Female

Fifth Shaft Gear, C511

1шт.

20

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Fifth Shaft Gear, C511

2шт.

20

82012084

SEAL,1.4mm ID

Fifth Shaft Gear, C511

2шт.
