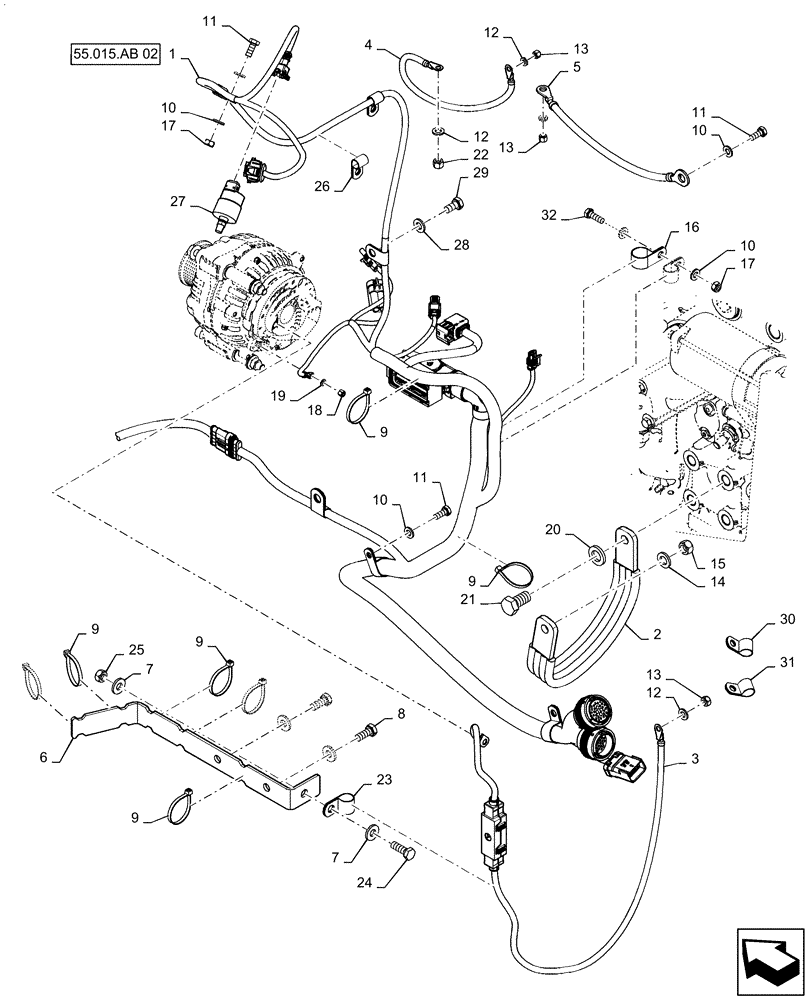

Запчасти Case IH STEIGER 370 (55.015.AB[01]) - ENGINE HARNESS MOUNTING, 370 (55) - ELECTRICAL SYSTEMS

1

47499906

WIRE HARNESS

Engine

1шт.

2

87362573

GROUND CABLE

Engine To Chassis

1шт.

3

84364235

CABLE

Alternator To Grid Heater Relay

1шт.

4

84364241

CABLE,345mm L

Grid Heater Relay To Grid Heater

1шт.

5

47397296

CABLE

Grid Heater To Ground

1шт.

6

47499817

BRACKET

Fan Harness Guide

1шт.

7

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

9шт.

10

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

10шт.

11

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

12

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

3шт.

13

832-10406

NUT,M6 x 1, Cl 8

3шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

15

829-1412

NUT,M12, Cl 10.9

1шт.

16

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

18

832-10405

NUT,M5 x .8, Cl 8

1шт.

19

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

20

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

21

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

1шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

23

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

24

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

26

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

27

293797A1

RESTRICTION SWITCH

Air Cleaner

1шт.

28

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

29

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

30

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

31

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

32

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.
