Запчасти Case IH STEIGER 370 (50.200.BY[01]) - AIR CONDITIONER LINES, 370, BSN ZEF303632 (50) - CAB CLIMATE CONTROL

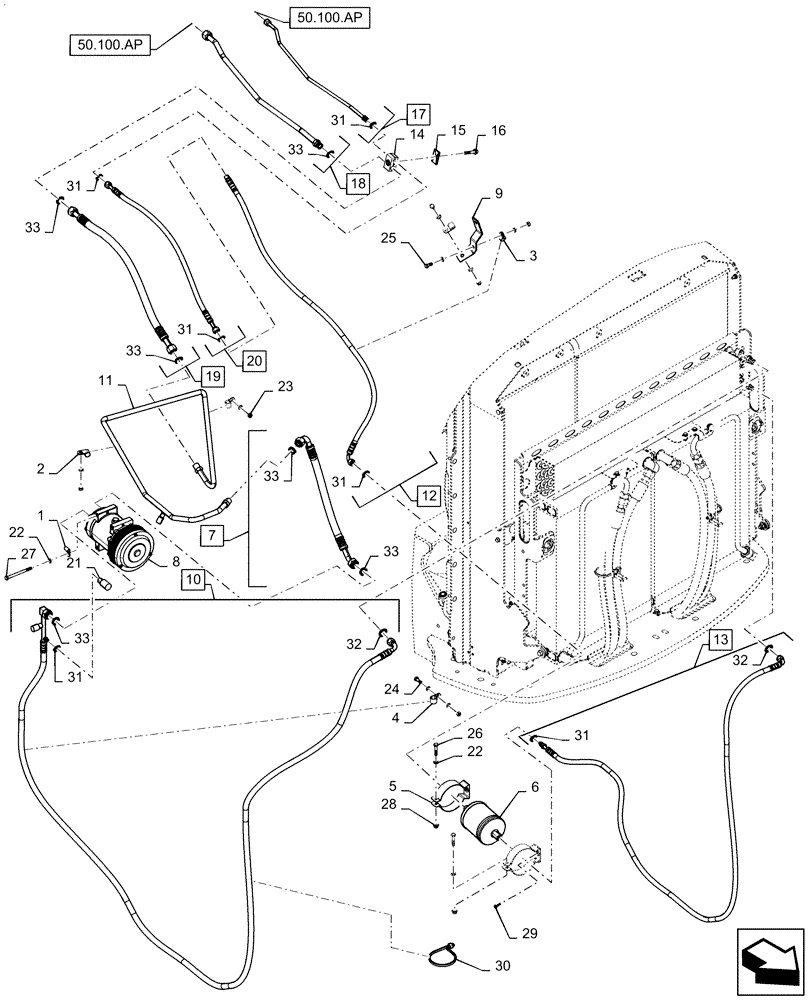

Схема запчастей Case IH STEIGER 370 - (50.200.BY[01]) - AIR CONDITIONER LINES, 370, BSN ZEF303632 (50) - CAB CLIMATE CONTROL
4
31
3
33
27
14
22
7
24
33
32
19
33
16
31
31
31
30
18
50.100.ap
33
21
15
25
5
20
12
29
2
9
31
26
13
6
28
23
17
11
10
32
22
1
50.100.ap
8
33
33
31

Артикул

Название

Примечание

Количество

1

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

2

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

11шт.

3

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

1шт.

4

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

4шт.

5

433723A1

CLAMP

2шт.

6

295006A1

RECEIVER-DRYER

1шт.

7

47506921

A/C HOSE

Evaporator to Compressor, Incl 33

1шт.

8

86993463

AIRCOND. COMPRESSOR

1шт.

8

86993463GV

AIRCOND. COMPRESSOR

Value

1шт.

8

86993463R

REMAN-A/C COMPRESSOR

1шт.

8

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

9

47503555

BRACKET

1шт.

10

84217000

HOSE ASSY.

Compressor to Condensor, Incl 31 - 33

1шт.

11

47506907

TUBE

A/C Return, Engine

1шт.

12

47461059

HOSE ASSY.

Dryer to Evaporator Frame, Incl 31

1шт.

13

84217001

HOSE ASSY.,8mm ID x 2637mm L

Condensor to Dryer, Incl 31, 32

1шт.

14

428385A1

SPECIAL CLAMP

1шт.

15

50-2532T1

PLATE

1шт.

16

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

17

84376593

TUBE

A/C Cab Supply, Incl 31

1шт.

18

84376592

TUBE

A/C Cab Return, Incl 33

1шт.

19

84471419

HOSE ASSY.

Evaporator to Compressor, Cab, Incl 33

1шт.

20

84471418

HOSE ASSY.

Dryer to Evaporator, Cab, Incl 31

1шт.

21

284273A2

SWITCH, A/C HIGH PRE

1шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

29шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

17шт.

24

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

25

615-8020

BOLT,Hex, M8 x 20, 8.8, Full Thd

2шт.

26

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

27

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

28

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

29

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

3шт.

31

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

6шт.

32

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

2шт.

33

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

6шт.

Выбрано товаров: 36
