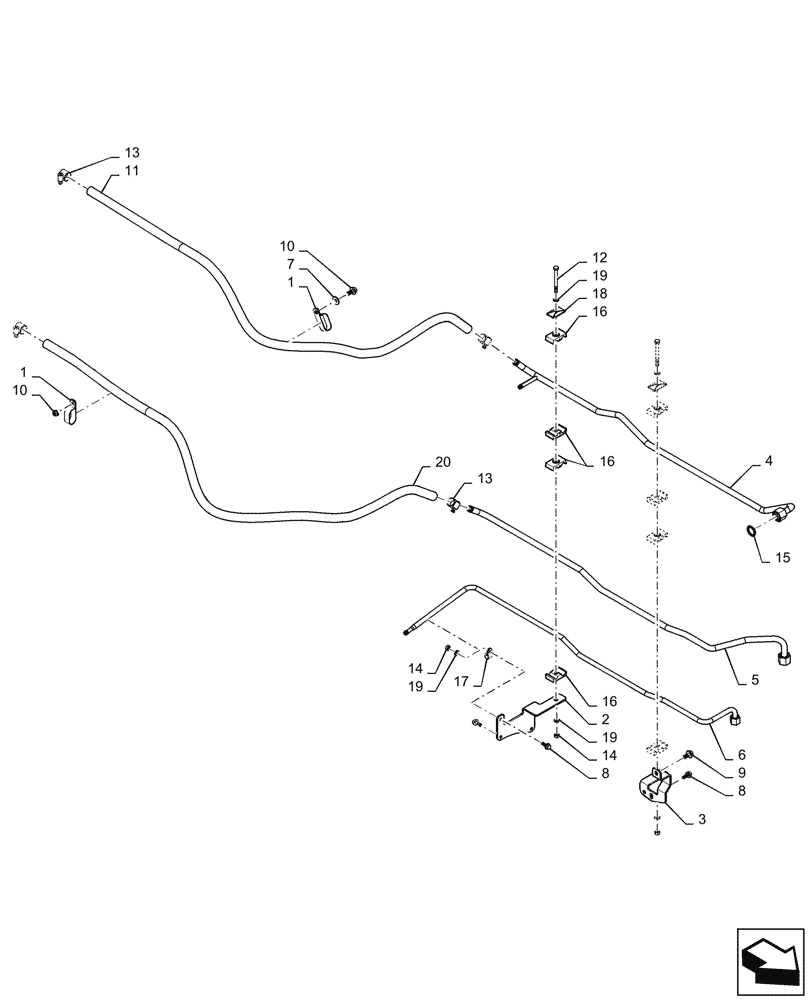

Запчасти Case IH STEIGER 370 (50.100.AC[01]) - HEATER LINES, 370 (50) - CAB CLIMATE CONTROL

1

R54363

CLAMP

Hose, Double

2шт.

2

84586781

BRACKET

Front Tube Support

1шт.

3

84586780

BRACKET

Side Tube Support

1шт.

4

47439438

HEATER TUBE

Supply, Engine To Cab Heater

1шт.

5

47547928

HEATER TUBE

Return, Cab Heater To Engine

1шт.

6

47367799

TUBE

Return

1шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

8

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

9

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

10

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

11

47974970

HOSE

Heater Supply, 1945mm L

1шт.

12

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

2шт.

13

1954736C1

HOSE CLAMP,#24

4шт.

14

832-46408

NUT,M8 x 1.25, Cl 8

3шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

47568093

PIPE CLAMP

Double

4шт.

17

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

18

50-2532T1

PLATE

Cover

2шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

20

47974969

HOSE

Heater Return, 1945mm L

1шт.
