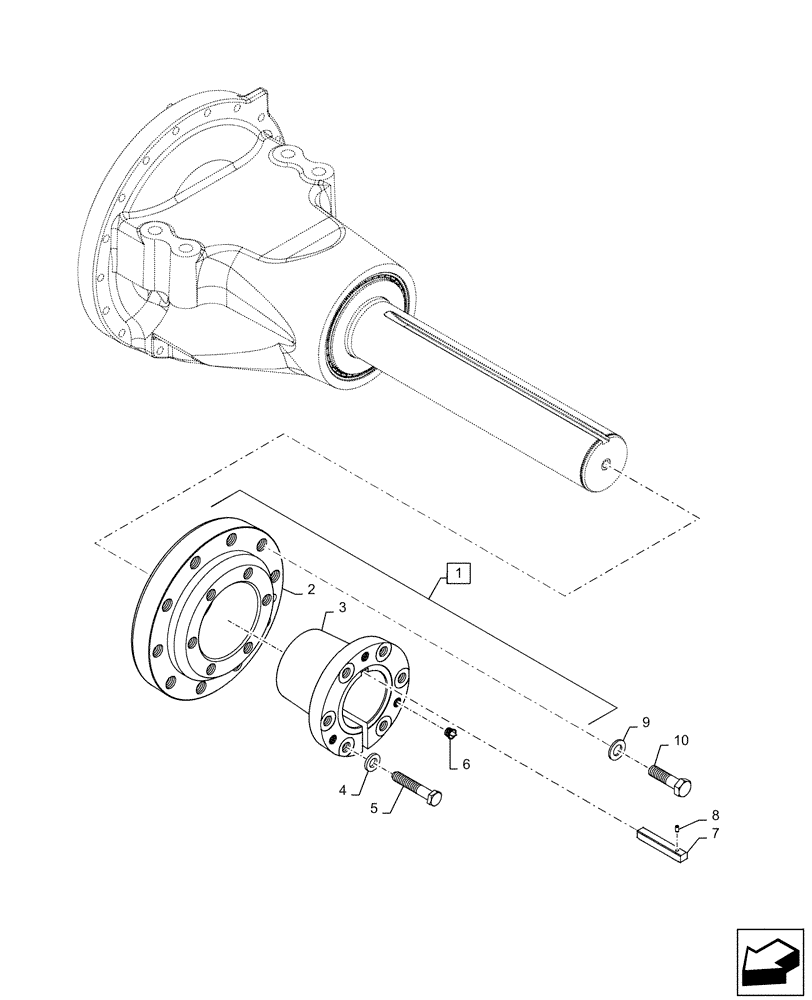

Запчасти Case IH STEIGER 370 (44.511.AD[03]) - WHEEL HUB, 425 SERIES AXLE, BSN ZFF304031 (44) - WHEELS

1

84203982

HUB

Wheel, 127mm Axle, Incl 2 - 6

1шт.

2

405812A1

HUB

Wheel

1шт.

3

84198516

BUSHING

127mm Axle

1шт.

4

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

6шт.

5

228273A1

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

6шт.

6

303401A1

PLUG

20mm Hole

3шт.

7

A63219

KEY

124mm Long

1шт.

8

38-11608

LOCK PIN,1/4" x 1/2", Slotted

1шт.

9

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

10шт.

10

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

10шт.
