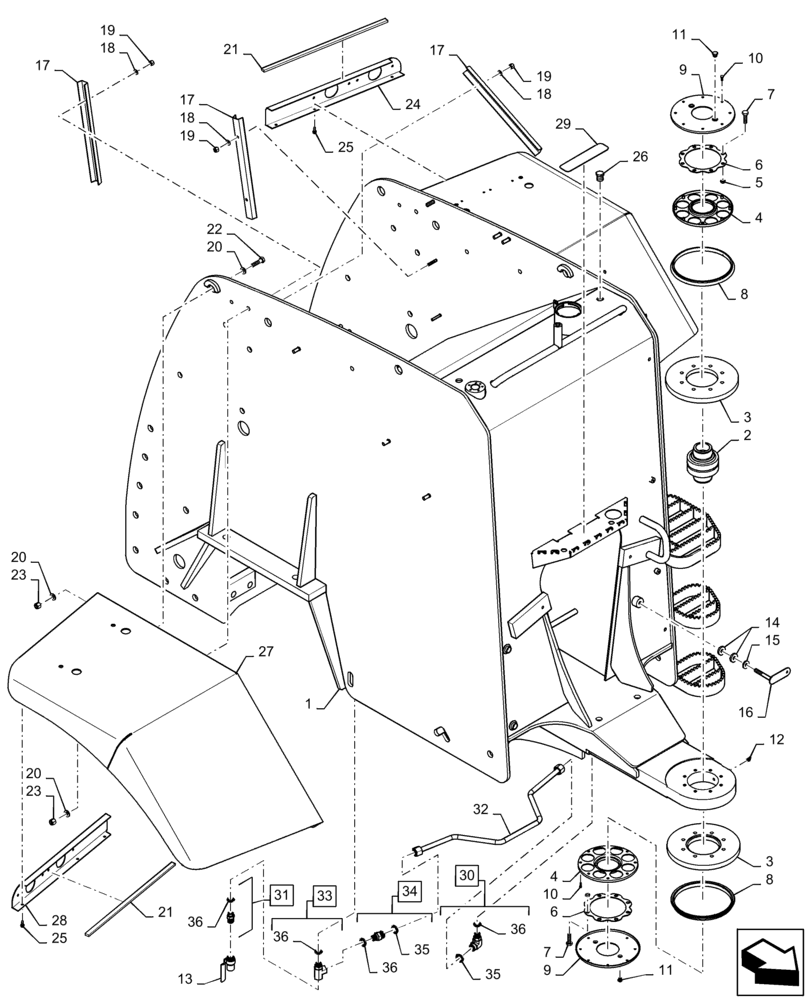

Запчасти Case IH STEIGER 370 (39.100.AS[02]) - REAR FRAME, 370, ASN ZEF303001 (39) - FRAMES AND BALLASTING

1

47616562

FRAME

Rear, Fuel Tank

1шт.

2

87311338

SPHERICAL BEARING,50.98mm ID x 120.64mm OD x 145.2mm W

Frame Pivot

1шт.

3

330032A1

COVER

Retaining, Pivot Point

2шт.

4

87365383

BEARING ASSY

Frame Pivot

2шт.

5

432444A1

SPACER

Retainer

16шт.

6

430250A1

RETAINER

Plate

2шт.

7

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

16шт.

8

433478A1

SEAL

Outer

2шт.

9

87365381

COVER

Frame Pivot

2шт.

10

463-61010

SCREW,Hex, #10 - 32 x 5/8"

16шт.

11

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

4шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

13

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

Fuel Tank Drain

1шт.

14

321232A1

BUSHING,11mm ID x 31mm OD x 6mm L

2шт.

15

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

16

406390A1

HANDLE

Articulation Lock Storage

1шт.

17

84348150

CHANNEL

Wire Guard

3шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

20

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

7шт.

21

47419481

SEAL

Foam Fender

2шт.

22

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

23

832-10412

NUT,M12 x 1.75, Cl 8

5шт.

24

84162390

COVER

Fender Light, LH

1шт.

25

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

6шт.

26

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

2шт.

27

47423433

FENDER

Rear, RH, Years: -30-SEP-15

1шт.

27

48024644

FENDER

Rear, RH, Start Year: 01-OCT-15

1шт.

28

84162377

COVER

Fender Light, RH

1шт.

29

D55216

PAD,2" x 9"

2" x 9"

1шт.

30

87530404

90 ELBOW,1-14' ORFS x 3/4-16 ORB

1" - 14 ORFS x 3/4" - 16 ORB, Incl 35 - 36

1шт.

31

47646702

ADAPTER,3/4" - 16 ORB x 1/2" - 14 NPT

Incl 36

1шт.

32

47648491

TUBE

Fuel Crossover

1шт.

33

84292714

TEE

3/4" - 16 ORB x 3/4" - 16 ORB x 3/4" - 16 ORB, Incl 36

1шт.

34

87351379

HYD CONNECTOR

1" - 14 ORFS x 3/4" - 16 ORB, Incl 35 - 36

1шт.

35

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

36

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.
