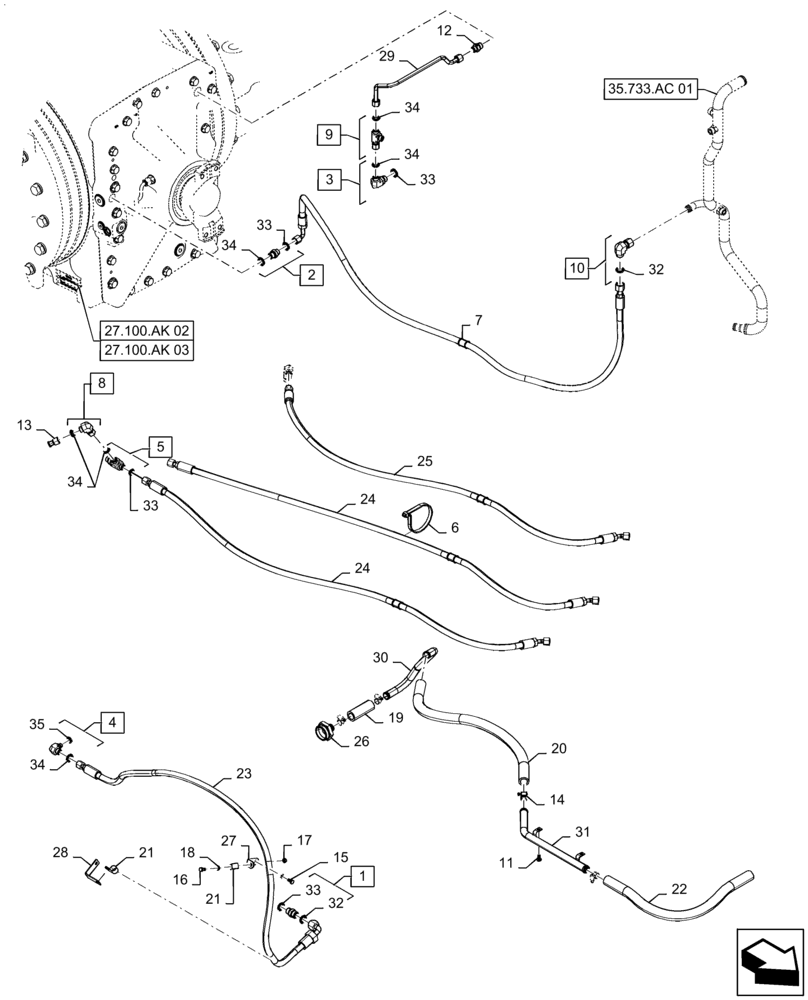

Запчасти Case IH STEIGER 370 (35.733.AC[02]) - REAR AXLE LUBRICATION LINES, W/O DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS

1

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 32 - 33

1шт.

2

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 33 - 34

1шт.

3

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 33 - 34

2шт.

4

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 34 - 35

1шт.

5

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 33 - 34

1шт.

6

440567A1

CABLE TIE

20"

1шт.

7

47412088

HYDRAULIC HOSE,12.7mm ID x 2311mm L, SAE 100R1

Brake Drain, Serial Range: ZEF300001-ZFF304721

1шт.

7

47820774

HYDRAULIC HOSE

Brake Drain, Serial Range: ZFF304722-ZFF306001

1шт.

7

47921714

HOSE

Brake Drain, Start Serial: ZFF308016

1шт.

8

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 34

1шт.

9

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 34

1шт.

10

84989393

ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw

Incl 32, Serial Range: ZEF300001-ZFF304721

1шт.

11

920019731

SCREW,BTN HD, M8 x 20mm, SST

2шт.

12

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Check Valve, 25 PSI, M22 x 1.5 ORB x 13/16" - 16 ORFS, Incl 33 - 34

1шт.

13

190316A1

COUPLING

Diagnostic

1шт.

14

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

6шт.

15

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

16

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

19

31-2757

HOSE,1.00" ID x 4.00"

1шт.

20

370250A1

HOSE

1" ID x 39"

1шт.

21

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

22

87390647

HOSE

1" ID x 29"

1шт.

23

84189754

HOSE ASSY.

Auxiliary Drain To Rear Axle

1шт.

24

84280346

HOSE ASSY.

Axle Supply

2шт.

25

84281779

HOSE ASSY.

Park Brake Pressue

1шт.

26

337545A1

HYD CONNECTOR

Axle Discharge, 2-1/4" - 12 x 1" Hose Barb

1шт.

27

369960A1

BRACKET

Full Line

1шт.

28

416512A1

BRACKET

Axle

1шт.

29

84280342

RIGID TUBE

Axle Lube, Rear Axle

1шт.

30

84280337

RIGID TUBE

Rear Axle Drain

1шт.

31

84217058

HYD TUBE

Rear Axle To Tank

1шт.

32

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

33

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

5шт.

34

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

8шт.

35

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
