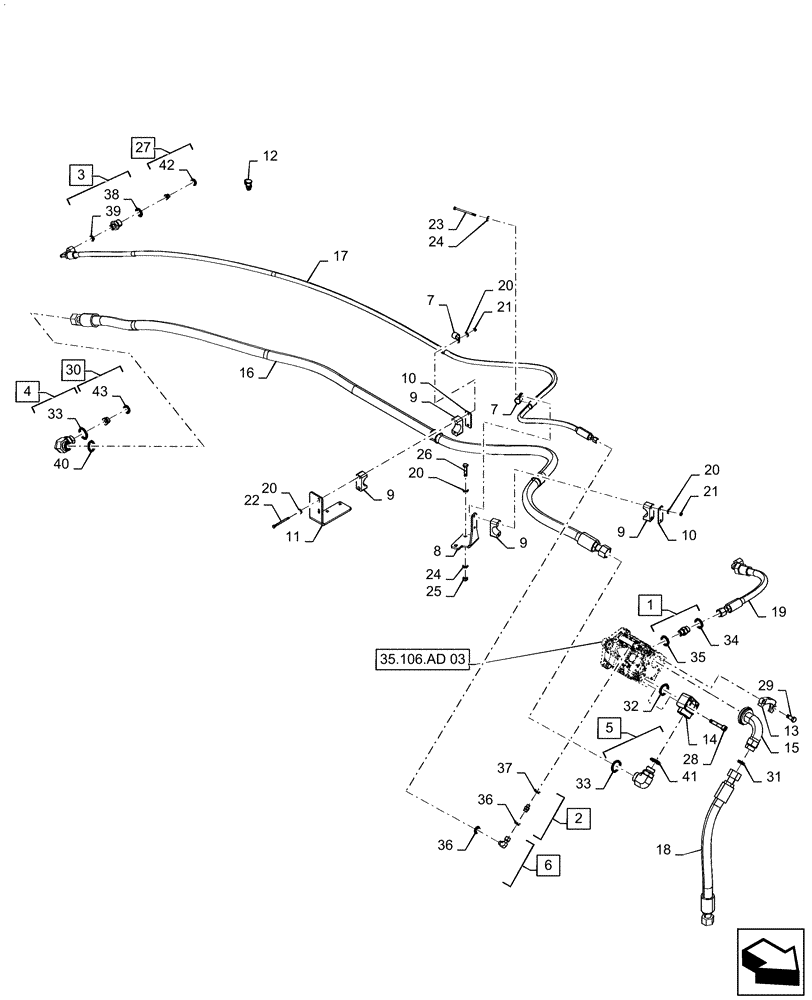

Запчасти Case IH STEIGER 370 (35.322.AY[05]) - VAR - 429176 - MEGA FLOW HYDRAULIC SYSTEM LINES (35) - HYDRAULIC SYSTEMS

1

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Incl 34 - 35

1шт.

2

84602714

FITTING

9/16" - 18 ORFS x 7/16" - 20 ORB, 100 Micron, Incl 36 - 37

1шт.

3

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

Incl 38 - 39

1шт.

4

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 33, 40

1шт.

5

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Incl 33, 41

1шт.

6

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 36

1шт.

7

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

8

84299704

BRACKET, SUPPORTING

Mega Flow Hose Support, Serial Range: ZEF300001-ZFF308000

1шт.

8

47703529

BRACKET

Mega Flow Hose Support, Start Serial: ZFF308001

1шт.

9

429384A1

CLAMP,40mm ID x 30mm W x 71mm L

Hose

4шт.

10

429414A1

COVER PLATE,70mm L x 30mm W x 3mm Thk

Hose Clamp

2шт.

11

47507060

BRACKET

Mega Flow Hose Support

1шт.

12

178889A1

DIAGNOSTIC COUPLER

Diagnostic

1шт.

13

A14141

FLANGE

Split Half Clamp, 2"

2шт.

14

84195080

FLANGE

Mega Flow Pump

1шт.

15

84194169

HYD TUBE

Mega Flow Pump Supply

1шт.

16

84423449

HOSE ASSY.,25.4mm ID x 3302mm L, SAE 100R17

Auxiliary Valve Supply

1шт.

17

47397210

HOSE ASSY.,9.53mm ID x 3404mm L, SAE 100R17

Auxiliary Valve Load Sense

1шт.

18

84194173

HOSE ASSY.,25.4mm ID x 686mm L, SAE 100R1

Mega Flow Supply

1шт.

19

84197262

HOSE ASSY.,15.88mm ID x 552mm L, SAE 100R1

Mega Flow Pump Drain, Mega Flow Pump To Tank

1шт.

20

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

21

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

22

827-6080

BOLT,Hex, M6 x 80mm, Cl 10.9

2шт.

23

11032331

BOLT,Hex, M6 x 90mm, Cl 10.9

2шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

26

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

27

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 42

1шт.

28

87530644

SCREW,M10 x 55mm, Cl 8.8

4шт.

29

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

30

221579A1

PLUG,M22 x 1.5 ORB

Incl 43

1шт.

31

86637769

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

32

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

33

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

3шт.

34

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

35

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

36

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

37

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

38

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

39

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

40

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

41

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

42

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

43

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
