Запчасти Case IH STEIGER 370 (27.120.010) - VAR - 424823, 424824 - AXLE CARRIER ASSY, 315 SERIES (27) - REAR AXLE SYSTEM

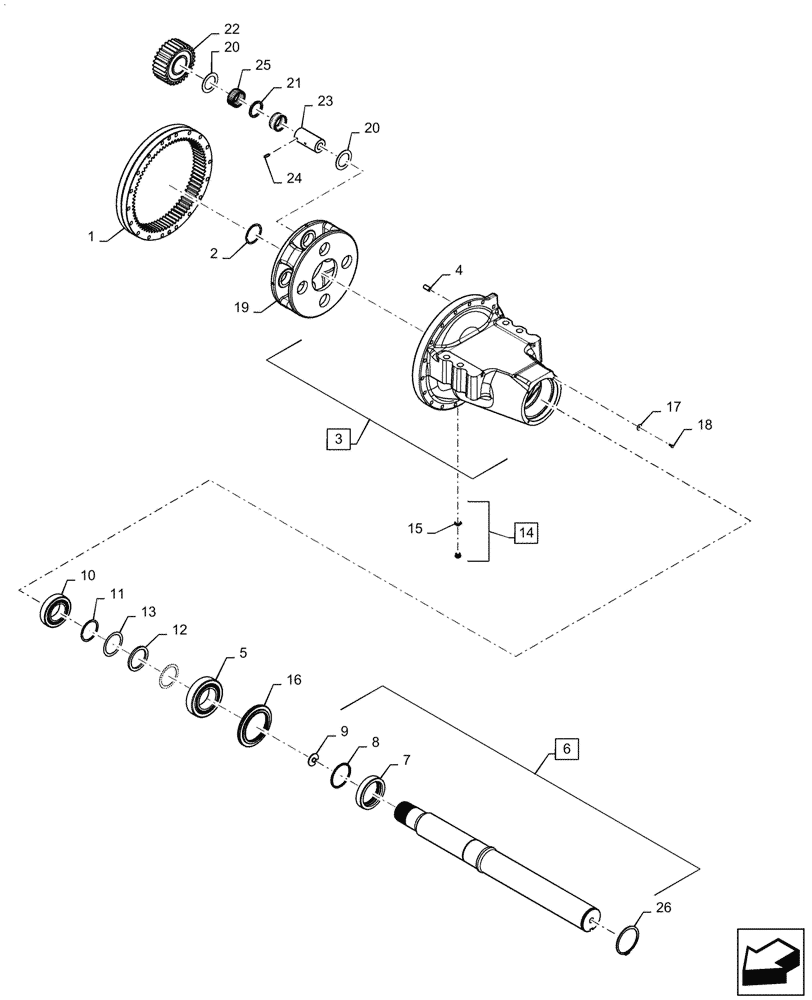

Схема запчастей Case IH STEIGER 370 - (27.120.010) - VAR - 424823, 424824 - AXLE CARRIER ASSY, 315 SERIES (27) - REAR AXLE SYSTEM
19
23
7
12
9
14
4
10
20
25
3
15
26
13
11
2
18
1
8
20
17
21
22
16
5
24
6

Артикул

Название

Примечание

Количество

1

360761A1

GEAR, RING

76T

1шт.

2

101-11350

SNAP RING,#350, Ext

1шт.

3

47575800

CARRIER

Axle, 115mm, 315 Series, Incl 4

1шт.

4

837-16040

DOWEL,M16 x 40

2шт.

5

47421191

TAPERED BEARING

114.3mm x 212.725mm x 66.675mm

1шт.

6

84512057

SHAFT

Axle, 115mm, Incl 7 - 9, Serial Range: -ZGF306094

1шт.

315 Series

1шт.

6

47882180

DRIVE SHAFT

Axle, 115mm, Incl 7 - 9, Start Serial: ZGF306095

1шт.

315 Series

1шт.

7

84260691

BUSHING,114.91mm ID x 155mm OD x 31mm L

, Serial Range: -ZGF306094

1шт.

7

47812240

BUSHING

, Start Serial: ZGF306095

1шт.

8

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

9

1981270C1

INSERT

Axle Wear

1шт.

10

47575917

TAPERED BEARING

95.25mm x 171.45mm x 47.625mm

1шт.

11

243856A1

RING, SNAP

Axle Retaining

1шт.

12

124744C1

WASHER,95.63mm ID x 120mm OD x 8mm Thk

Thrust

1шт.

13

143921C1

SHIM,95mm ID x 120mm OD x 0.76mm Thk

1шт.

13

143922C1

SHIM,95mm ID x 120mm OD x 0.3mm Thk

1шт.

13

143923C1

SHIM,95mm ID x 120mm OD x 0.13mm Thk

1шт.

13

143924C1

SHIM,95mm ID x 120mm OD x 0.1mm Thk

1шт.

13

143925C1

SHIM,95mm ID x 120mm OD x 0.08mm Thk

1шт.

14

221578A1

PLUG,M18 x 1.5 ORB

Incl 15

1шт.

15

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

16

84225952

OIL SEAL,152.7mm ID x 214.31mm OD x 20.5mm Thk

Axle Shaft

1шт.

17

95-31038

WASHER,5/16"

4шт.

18

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

19

388370A1

PINION CARRIER

Heavy Duty

1шт.

20

87435907

THRUST WASHER,64.3mm ID x 95mm OD x 2.6mm Thk

Planetary Gear

8шт.

21

86985634

SPACER, RING,66.5mm ID x 76.45mm OD x 7mm L

Planetary Gear

4шт.

22

310694A2

PLANETARY GEAR,29T

29T

4шт.

23

310697A3

SHAFT,31.75mm ID x 63.4mm OD x 130mm L

Planetary Gear

4шт.

24

838-3826

PIN,M8 x 26, Coiled

4шт.

25

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

Planetary Gear

264шт.

26

800-11115

SNAP RING,M115, Ext

1шт.

Выбрано товаров: 34
