(27.106.AC[06]) - VAR - 424823, 424824, 424268 - REAR AXLE PARKING BRAKE

Запчасти Case IH STEIGER 370 (27.106.AC[06]) - VAR - 424823, 424824, 424268 - REAR AXLE PARKING BRAKE (27) - REAR AXLE SYSTEM

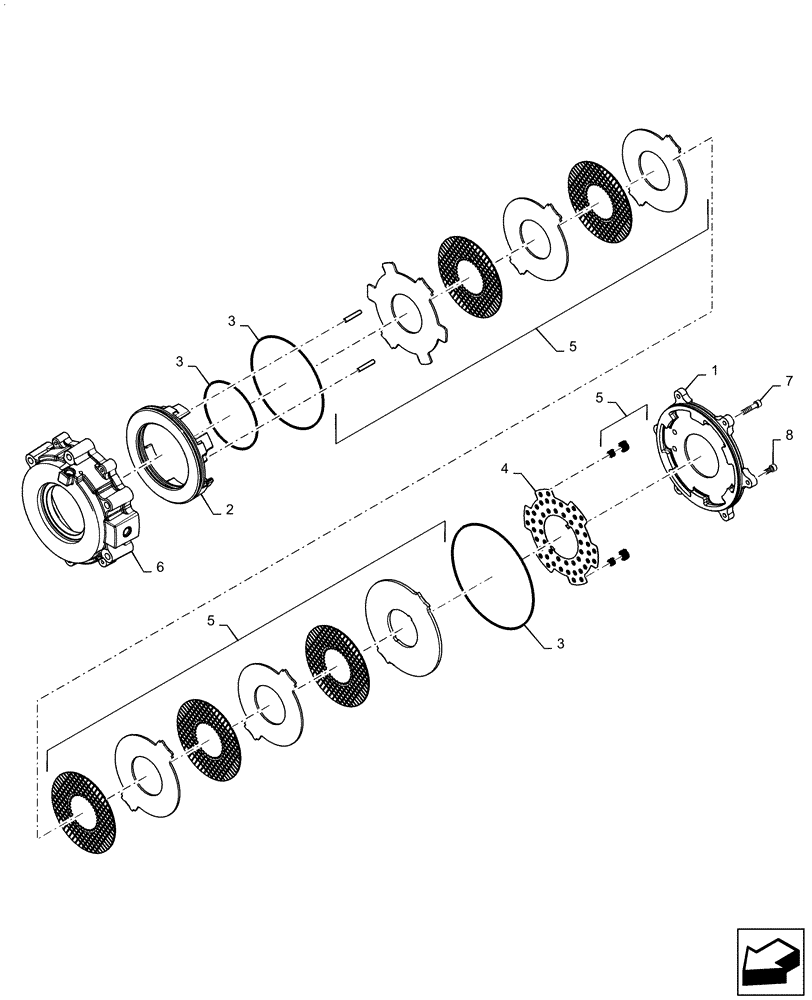

Схема запчастей Case IH STEIGER 370 - (27.106.AC[06]) - VAR - 424823, 424824, 424268 - REAR AXLE PARKING BRAKE (27) - REAR AXLE SYSTEM
3
6
5
1
7
8
3
5
5
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47404264

BASE PLATE

Rear Axle Brake

1шт.

2

84259299

PISTON

Brake

1шт.

3

84312962

O-RING KIT

Rear Axle Brake, Contains Piston And Housing Orings

1шт.

4

84259295

RETAINER

Brake Springs

1шт.

5

84259306

KIT

Brake Stack, Contains Friction Plates And Springs

1шт.

6

47404243

COVER

Rear Axle Brake

1шт.

7

84259307

BOLT

Long

5шт.

8

47406989

FASTENER

Short

1шт.
