Запчасти Case IH STEIGER 370 (27.106.AC[05]) - VAR - 424824, 424268 - REAR AXLE DIFFERENTIAL, W/ DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM

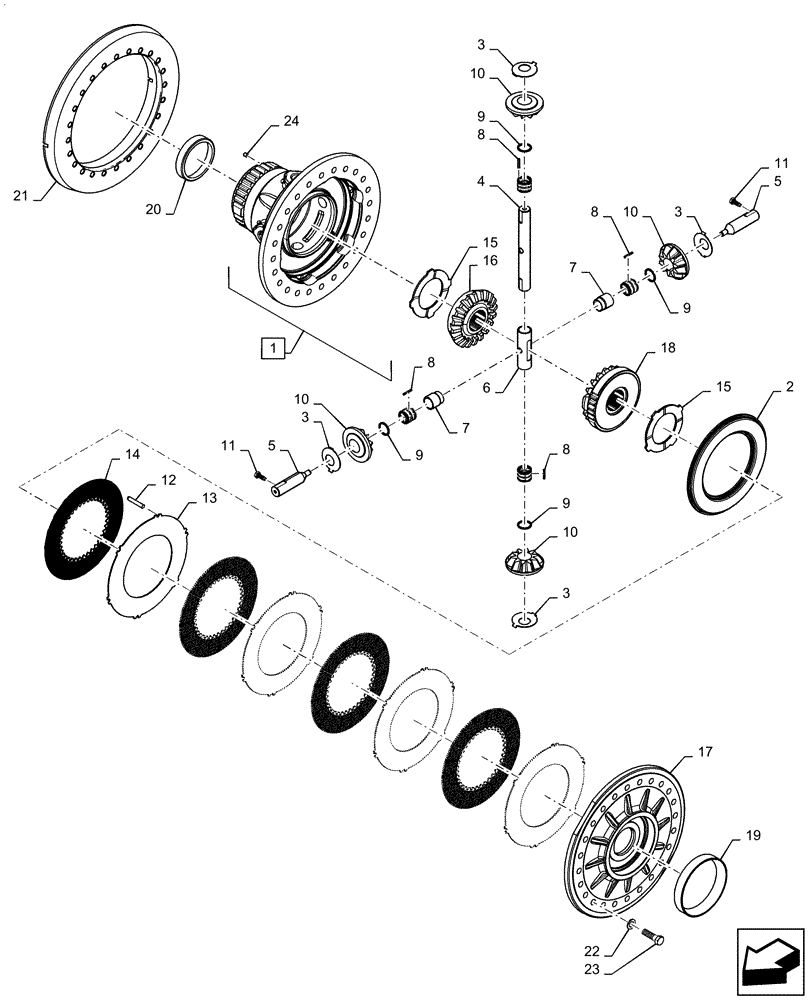

Схема запчастей Case IH STEIGER 370 - (27.106.AC[05]) - VAR - 424824, 424268 - REAR AXLE DIFFERENTIAL, W/ DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM
15
3
8
2
9
3
20
9
8
24
4
23
7
6
7
10
17
3
15
14
1
10
9
8
10
22
11
3
12
10
11
16
5
18
5
13
19
21
8
9

Артикул

Название

Примечание

Количество

1

47430007

CASE

Differential, Incl 24

1шт.

2

1997422C1

PISTON

Brake

1шт.

3

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

Differential

4шт.

4

92907C1

SHAFT

Differential Pinion, Long

1шт.

5

92906C1

SHORT SHAFT

Differential Pinion

2шт.

6

1289349C1

SPACER

Long

1шт.

7

1289350C1

SPACER

Long

2шт.

8

1270697C1

NEEDLE BEARING

28 Per Gear

112шт.

9

1289348C1

RING

Thrust

4шт.

10

92905C1

PINION

Differential

4шт.

11

1997421C1

BOLT

Differential Cross

2шт.

12

137023A1

DOWEL

Pin

6шт.

13

84225275

PLATE

Differential Lock Friction

3шт.

14

92915C1

PLATE,192mm ID x 322mm OD x 2.74mm Thk

Differential Lock Separator

4шт.

15

84321280

SHIM,95mm ID x 158mm OD x 4.91mm Thk

Differential

2шт.

16

1259633C3

GEAR

20T

1шт.

17

84323113

COVER

Differential With Lock

1шт.

18

1259634C3

PINION

Differential Lock, 20T

1шт.

19

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

20

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

1шт.

21

302260A1

GEAR SET

Ring And Pinion, Rear Axle

1шт.

22

47600651

WASHER,Flat, 17.00mm ID x 30.00mm OD x 2.00mm

24шт.

23

48137515

LOCK BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

24шт.

24

87520607

PLUG

Expansion, 9mm

3шт.

Выбрано товаров: 24
