Запчасти Case IH STEIGER 370 (27.106.AC[04]) - VAR - 424823 - REAR AXLE DIFFERENTIAL, W/O DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM

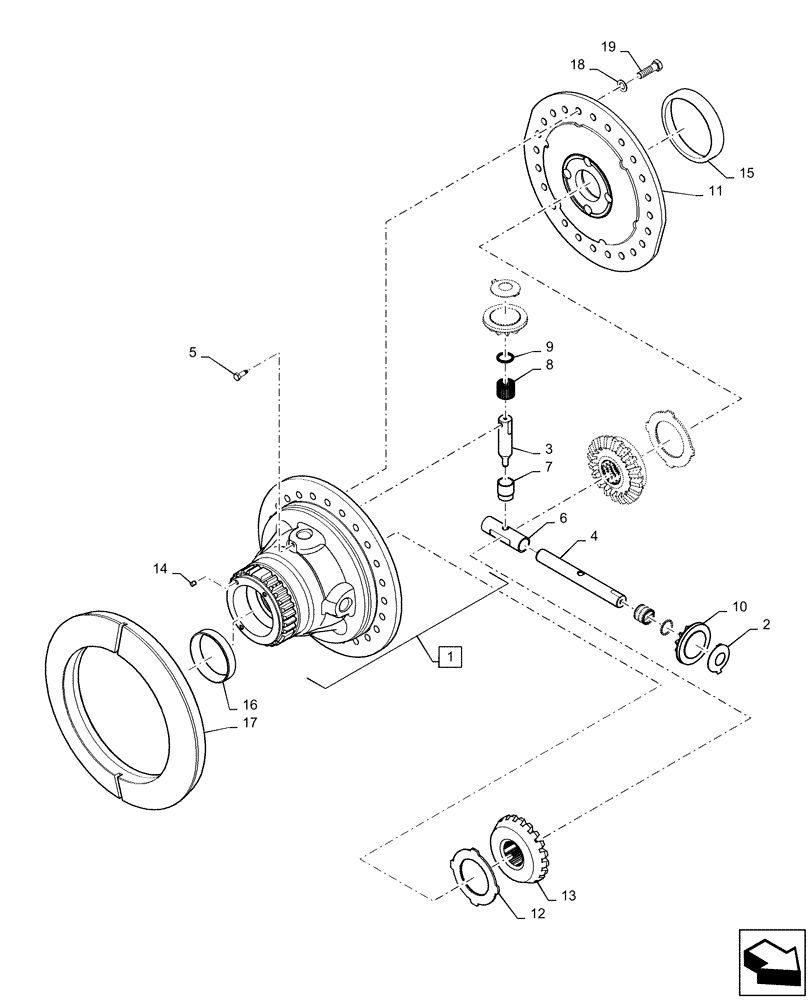

Схема запчастей Case IH STEIGER 370 - (27.106.AC[04]) - VAR - 424823 - REAR AXLE DIFFERENTIAL, W/O DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM
5
8
9
12
16
2
6
7
10
1
3
19
11
13
4
17
15
14
18

Артикул

Название

Примечание

Количество

1

47430007

CASE

Differential, Incl 14

1шт.

2

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

Differential

4шт.

3

92906C1

SHORT SHAFT

Differential Pinion

2шт.

4

92907C1

SHAFT

Differential Pinion, Long

1шт.

5

1997421C1

BOLT

Differential Cross

2шт.

6

1289349C1

SPACER

Long

1шт.

7

1289350C1

SPACER

Short

2шт.

8

1270697C1

NEEDLE BEARING

28 Per Gear

112шт.

9

1289348C1

RING

Thrust

4шт.

10

92905C1

PINION

Differential

4шт.

11

84323114

COVER

Differential Without Lock

1шт.

12

84321280

SHIM,95mm ID x 158mm OD x 4.91mm Thk

Differential

2шт.

13

1259633C3

GEAR

20T

2шт.

14

87520607

PLUG

Expansion, 9mm

3шт.

15

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

16

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

1шт.

17

302260A1

GEAR SET

Ring And Pinion, Rear Axle

1шт.

18

47600651

WASHER,Flat, 17.00mm ID x 30.00mm OD x 2.00mm

17mm x 30mm x 2mm

24шт.

19

48137515

LOCK BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

24шт.

Выбрано товаров: 19
