Запчасти Case IH STEIGER 370 (27.106.AC[02]) - VAR - 424823, 424824, 424268 - REAR AXLE PINION CARRIER COVER (27) - REAR AXLE SYSTEM

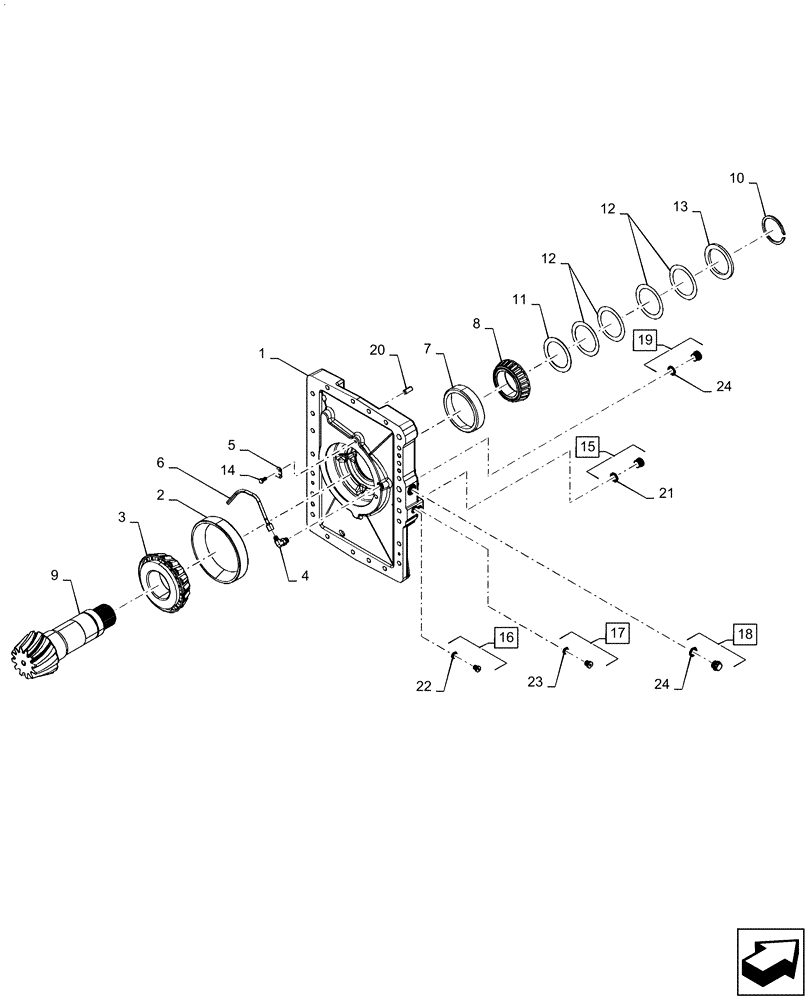

Схема запчастей Case IH STEIGER 370 - (27.106.AC[02]) - VAR - 424823, 424824, 424268 - REAR AXLE PINION CARRIER COVER (27) - REAR AXLE SYSTEM
12
3
15
20
24
21
2
18
4
10
11
1
6
9
8
24
22
12
19
7
23
14
13
17
5
16

Артикул

Название

Примечание

Количество

1

84245365

ACCESS COVER

Rear Axle

1шт.

2

248114A1

BEARING, CUP,200.01mm OD x 34.82mm W

1шт.

3

248118A1

TAPERED BEARING,88.9125 mm ID x 52.8625 mm

1шт.

4

86985636

ELBOW

5/16" x 3/8", 1.7mm Orifice

1шт.

5

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

6

234432A1

TUBE

Rear Lube

1шт.

7

191440A1

BEARING CUP,140 mm OD x 28.4734 mm

1шт.

8

67190R91

BEARING ASSY,82.5627 mm ID x 36.6135 mm

1шт.

9

302260A1

GEAR SET

Ring And Pinion, Rear

1шт.

10

229515A2

RING, SNAP

Pinion Retainer

1шт.

11

191713A1

SPACER

83mm x 110mm x 1.5mm

1шт.

12

220785A1

SHIM,84mm ID x 110mm OD x 0.5mm Thk

1шт.

12

191712A1

SHIM,0.130mm Thk

1шт.

12

191711A1

SHIM,0.101mm Thk

1шт.

12

191709A1

SHIM,0.076mm Thk

1шт.

13

228968A2

SPACER

83mm x 110mm x 7mm

1шт.

14

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

15

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Incl 21

1шт.

16

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

Incl 22

1шт.

17

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 23

2шт.

18

553-101

PLUG,M22 x 1.5, ORB, Plastic

Incl 24

3шт.

19

221579A1

PLUG,M22 x 1.5 ORB

Incl 24

2шт.

20

837-12030

DOWEL,M12 x 30mm OAL

2шт.

21

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

23

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

24

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

5шт.

Выбрано товаров: 27
