Запчасти Case IH STEIGER 370 (25.102.AD[05]) - VAR - 424824, 424268 - FRONT AXLE DIFFERENTIAL, W/ DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM

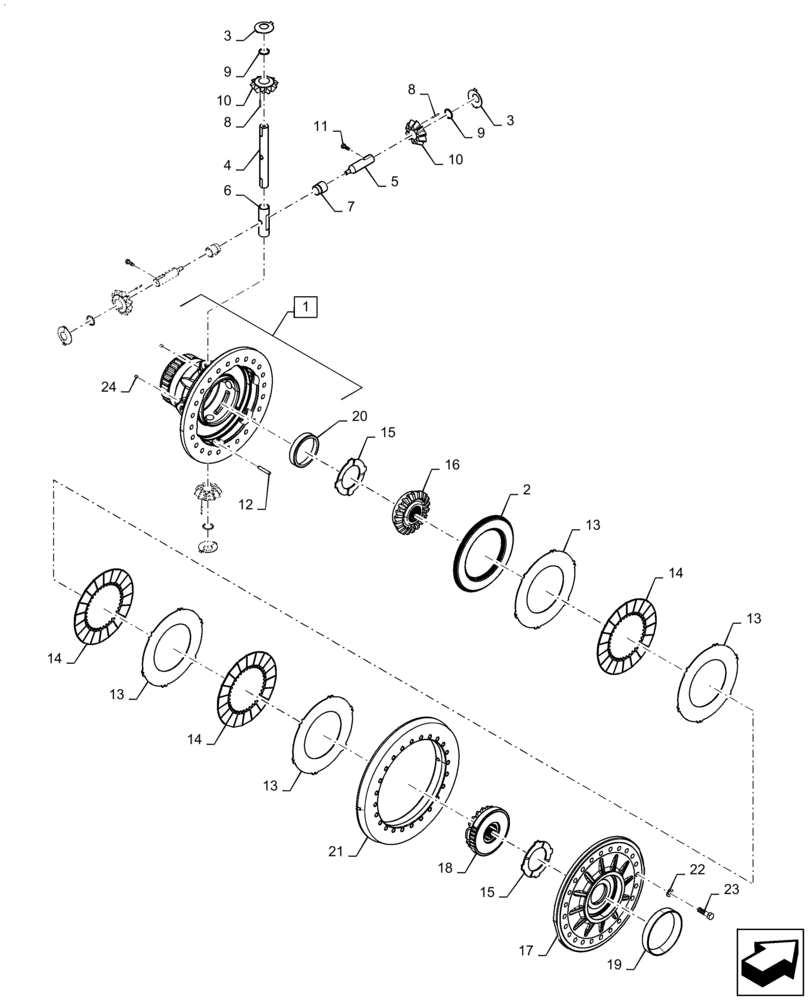

Схема запчастей Case IH STEIGER 370 - (25.102.AD[05]) - VAR - 424824, 424268 - FRONT AXLE DIFFERENTIAL, W/ DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM
11
15
16
6
14
10
13
23
8
5
3
7
8
13
20
13
14
9
21
9
13
1
12
24
10
15
17
14
18
2
22
4
19
3

Артикул

Название

Примечание

Количество

1

47430007

CASE

Differential, Incl 24

1шт.

2

1997422C1

PISTON

Brake

1шт.

3

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

Differential

4шт.

4

92907C1

SHAFT

Differential Pinion, Long

1шт.

5

92906C1

SHORT SHAFT

Differential Pinion

2шт.

6

1289349C1

SPACER

Long

1шт.

7

1289350C1

SPACER

Long

2шт.

8

1270697C1

NEEDLE BEARING

28 Per Gear

112шт.

9

1289348C1

RING

Thrust Needle Bearing

4шт.

10

92905C1

PINION

Differential

4шт.

11

1997421C1

BOLT

Differential Cross

2шт.

12

137023A1

DOWEL

Pin

6шт.

13

92915C1

PLATE,192mm ID x 322mm OD x 2.74mm Thk

Differential Lock Separator

4шт.

14

84225275

PLATE

Differential Lock Friction

3шт.

15

84321280

SHIM,95mm ID x 158mm OD x 4.91mm Thk

Differential

2шт.

16

1259633C3

GEAR

20T

1шт.

17

84323113

COVER

Differential With Lock

1шт.

18

1259634C3

PINION

Differential Lock, 20T

1шт.

19

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

20

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

1шт.

21

302259A2

BEVEL GEAR

Set, Front Drive

1шт.

22

47600651

WASHER,Flat, 17.00mm ID x 30.00mm OD x 2.00mm

24шт.

23

48137515

LOCK BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

24шт.

24

87520607

PLUG

Expansion, 9mm

3шт.

Выбрано товаров: 24
