(25.100.020) - VAR - 424823, 424824 - FRONT AXLE, 315 SERIES

Запчасти Case IH STEIGER 370 (25.100.020) - VAR - 424823, 424824 - FRONT AXLE, 315 SERIES (25) - FRONT AXLE SYSTEM

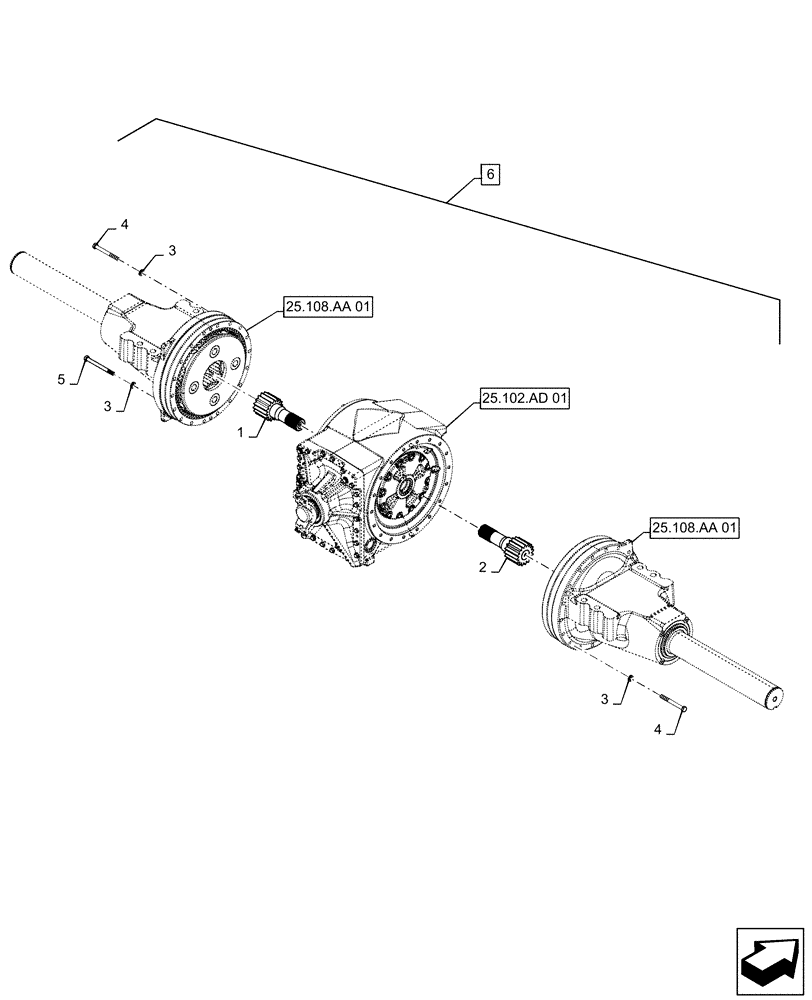

Схема запчастей Case IH STEIGER 370 - (25.100.020) - VAR - 424823, 424824 - FRONT AXLE, 315 SERIES (25) - FRONT AXLE SYSTEM
25.102.ad 01
5
3
3
4
1
3
4
6
2
25.108.aa 01
25.108.aa 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

310692A1

SHAFT

Sun Gear, 16T, Long

1шт.

2

310693A1

SHAFT

Sun Gear, 16T, Short

1шт.

3

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

36шт.

4

84233538

BOLT,Hex, M16 x 150mm, Cl 12.9

33шт.

5

390873A1

SPECIAL BOLT

M16 x 180mm, Cl 10.9

3шт.

6

84254594

FRONT AXLE

Without Diff Lock

1шт.

6

84254596

FRONT AXLE

With Diff Lock

1шт.
