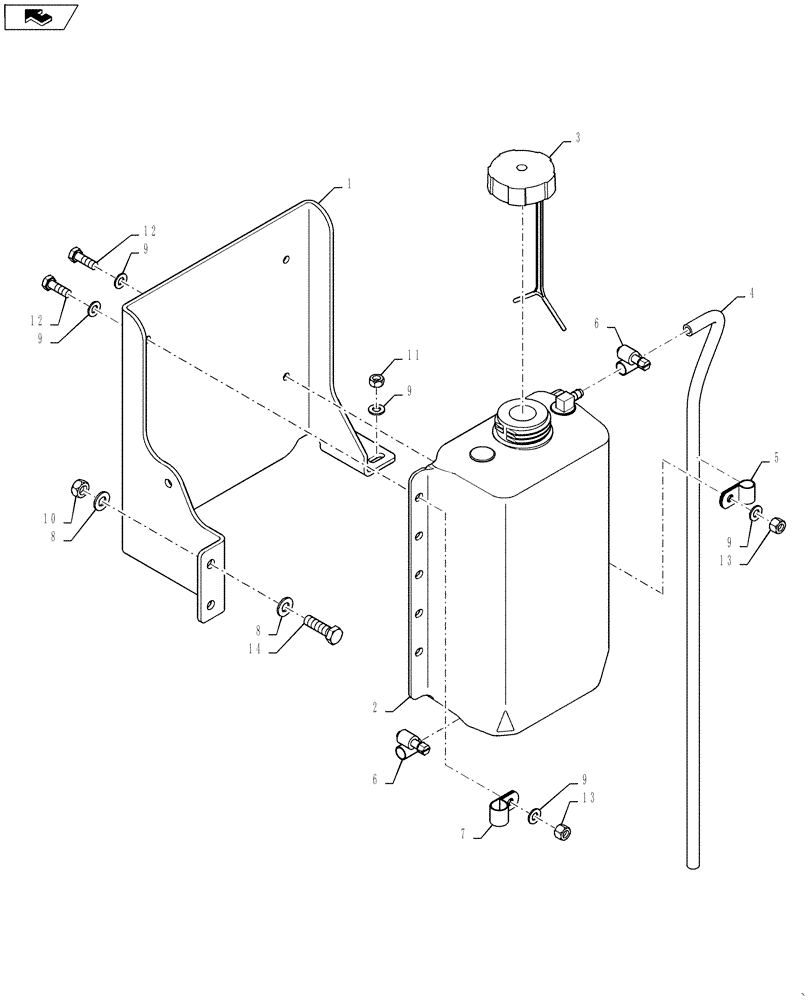

Запчасти Case IH STEIGER 350 (10.400.BH[01]) - COOLING SYSTEM EXPANSION TANK - STEIGER 350, 9L (10) - ENGINE

1

84214560

BRACKET, SUPPORTING

Water Bottle

1шт.

2

87481454

BOTTLE

Recovery, 5 Quart

1шт.

3

238903A1

FILLER CAP

Recovery Tank

1шт.

4

87713484

HOSE,0.28" ID x 28.00"

1шт.

5

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

6

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

12

615-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

14

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.
