Запчасти Case IH STEIGER 350 (90.100.AB[02]) - ENGINE HOOD - GRILL AND SUPPORT - STEIGER 350 (90) - PLATFORM, CAB, BODYWORK AND DECALS

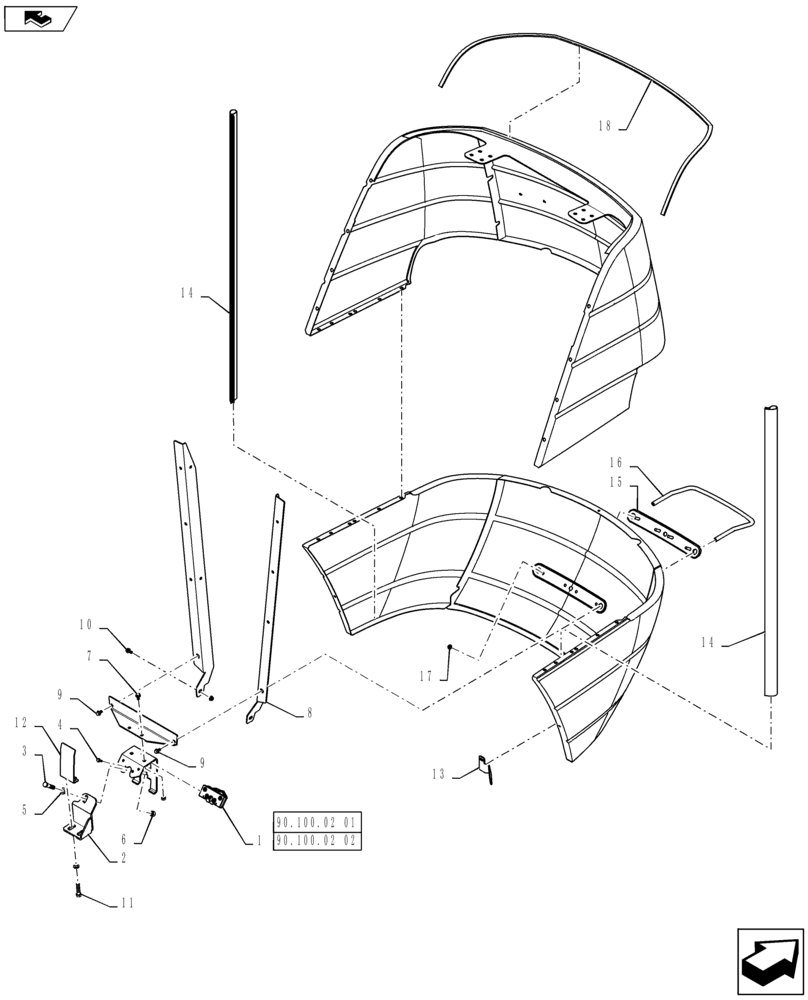

Схема запчастей Case IH STEIGER 350 - (90.100.AB[02]) - ENGINE HOOD - GRILL AND SUPPORT - STEIGER 350 (90) - PLATFORM, CAB, BODYWORK AND DECALS
16
90.100.02 01
15
8
7
home
12
13
18
14
11
90.100.02 02
9
5
2
3
14
17
9
10
4
1
6

Артикул

Название

Примечание

Количество

1

84394414

LATCH

Latch, Hood, Serial Range: -`0

1шт.

See Figure 90.100.02(01) or 90.100.02(02) for Latch Linkage Assembly

1шт.

2

84390041

PLATE

Plate, Striker

1шт.

3

87556445

BOLT

Striker

1шт.

4

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

16шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

6

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

7

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

84199643

SUPPORT

Grille

1шт.

9

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

5шт.

10

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

10шт.

11

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

12

84484807

BACKING PLATE

1шт.

13

84347350

BRACKET

Bracket, RC Hood Locking

1шт.

14

87350510

SEAL

Bulk Bulb Seal - 4.4 ft. required

2шт.

15

87498055

PLATE

Trigger Support

1шт.

16

84197327

HANDLE

Hood

1шт.

17

131-431

PUSH-ON NUT,Self, Threading, 1/4"

8шт.

18

87440015

SEALING STRIP,15mm W x 1780mm L x 7.6mm Thk

Foam

2шт.

Выбрано товаров: 19
