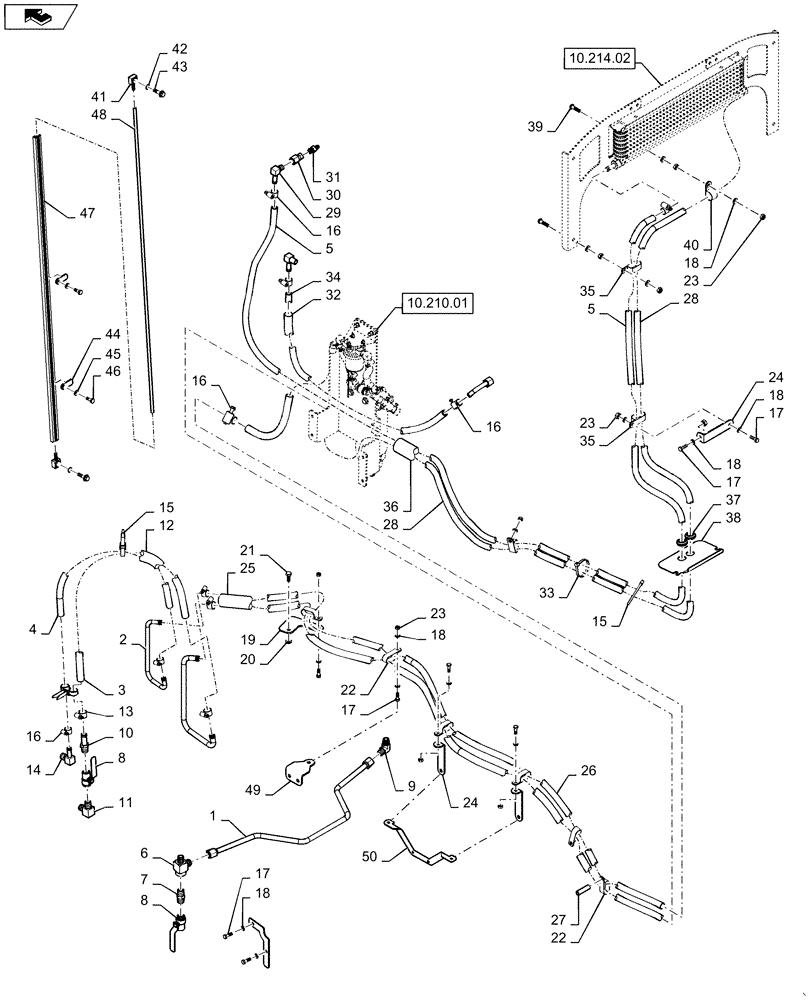

Запчасти Case IH STEIGER 350 (10.216.BA[01]) - FUEL LINES - STEIGER 350 (10) - ENGINE

1

84179286

FITTING

Metric Swivel, 37 deg Flare

1шт.

2

86624010

HYD CONNECTOR,37 Degree, Sw, 9/16"-18" x 3/8"-18 NPTF

Hinge

1шт.

3

217-133

ELBOW,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

Fuel, 991mm Length

2шт.

4

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

Fuel

1шт.

5

217-335

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

Fuel, 3733.8mm Length

1шт.

6

217-1226

ELBOW,90 Degree, 1/2"-14 Male

1шт.

7

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

Ball Valve, 1/4 - 14 NPTF

1шт.

8

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

9

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

2шт.

10

L111928

CLAMP

1 3/16" Double, Coated

6шт.

11

R54363

CLAMP

15/16" Double Tube

4шт.

12

84203513

FUEL TUBE

1шт.

13

84197933

FUEL TUBE

Fuel Line Hinge

1шт.

14

84306773

BRACKET, SUPPORTING

Fuel Line Support, Front

3шт.

15

84306775

BRACKET, SUPPORTING

Fuel Line Support, Rear

1шт.

16

31-2996

FUEL HOSE

1шт.

17

84394767

FLEXIBLE HOSE

7160 mm

1шт.

18

84365674

FUEL HOSE,15.9mm ID x 990.6mm L

991mm

1шт.

19

8500164

HOSE

Sight Gauge

1шт.

20

8500164

HOSE

Sight Gauge

1шт.

21

31-3083

HOSE,12.70 mm ID x 3733.8 mm

1шт.

22

352767A1

FITTING

Sight Gauge

2шт.

23

337248A1

O-RING,0.139" Thk x 0.484" ID, -206, Cl 5, 75 Duro

4шт.

24

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

Fuel Line Support, Front

2шт.

25

402800A1

BRACKET

Fuel Sight Gauge

2шт.

26

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Fuel, 3429mm Length W/O Suspend Cab

2шт.

27

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

SEC Aux. Cover

2шт.

28

84197976

CHANNEL

Fuel Sight Gauge

1шт.

29

337240A1

FUEL HOSE,6.35 mm ID x 1206.00 mm

1шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

36шт.

31

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

Swivel Adaptor, M14 24 deg. to .375In Flare

18шт.

32

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

33

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

Nylon, 8 In.

2шт.

34

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Fuel

2шт.

35

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

36

87447010

SPACER

Aux. Cover

1шт.

37

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

8шт.

38

214-1408

HOSE CLAMP,11.2mm - 19.8mm

10шт.

39

L18331

CABLE TIE,375.9mm L, Nylon, Black

Screw, BHSS, M8 x 30mm

3шт.

40

84394652

PROTECTIVE SLEEVE,46.7mm ID x 3260mm L

Heat

1шт.

41

84401009

PROTECTIVE SLEEVE,46.7mm ID x 680mm L

Heat

1шт.

42

84401010

PROTECTIVE SLEEVE,24mm ID x 325mm L

Heat

1шт.

43

L11541

CABLE TIE,203.2mm L, Nylon

7 - 8 Inch

3шт.

44

84401011

PROTECTIVE SLEEVE,24.4mm ID x 710mm L

Heat

1шт.

45

84401012

PROTECTIVE SLEEVE,24mm ID x 2190mm L

Heat

1шт.

46

327144A1

STRAP,328mm L

Dual Tie

1шт.
