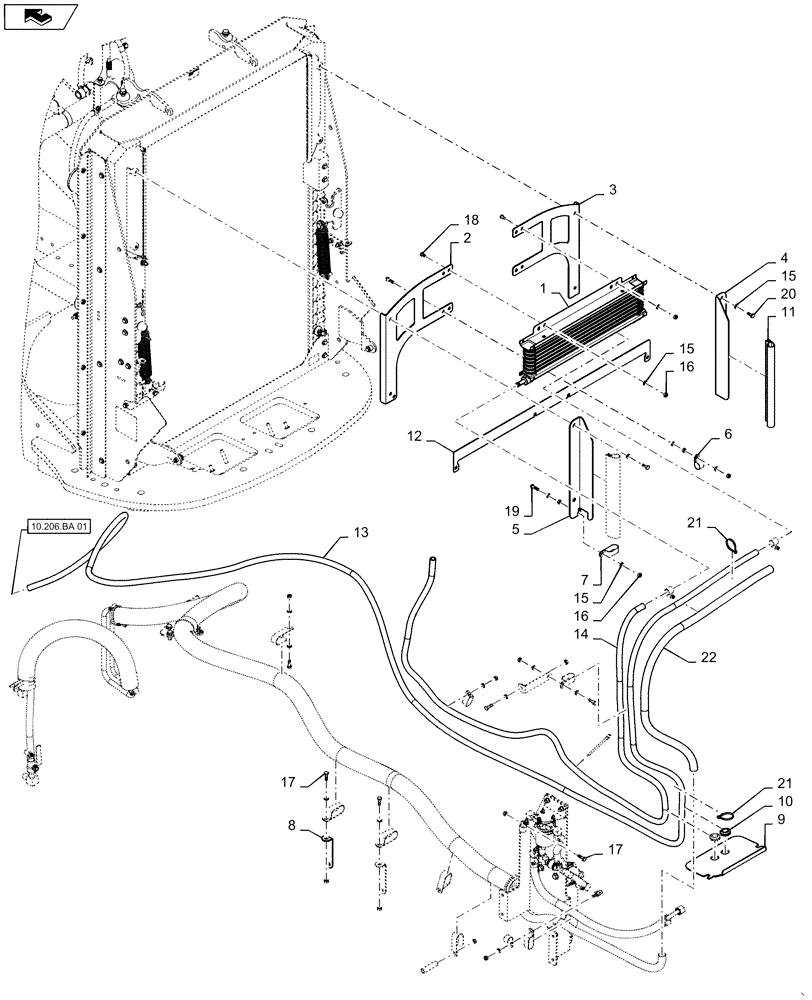

Запчасти Case IH STEIGER 350 (10.216.AX[01]) - FUEL COOLER - STEIGER 350 (10) - ENGINE

1

84392652

FUEL COOLER

1шт.

2

84394203

BRACKET

Fuel Cooler Support RH

1шт.

3

84394204

BRACKET

Fuel cooler Support LH

1шт.

4

84496856

BRACKET

Left Cooling Shield

1шт.

5

84496857

BRACKET

Right Cooling Shield

1шт.

6

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

BHCS, M8 x 16

2шт.

7

R54363

CLAMP

15/16" Double Tube

4шт.

8

84306773

BRACKET, SUPPORTING

Fuel Line Support, Front

3шт.

9

84357973

BRACKET, SUPPORTING

Cooler Hoses

1шт.

10

248-2178

GROMMET,3/4" ID x 1 1/16" Groove Dia

Bulb - Order Bulk P/N 87350512 - Cut to Length

2шт.

11

84541472

SEAL

Bulb

2шт.

12

84496858

BRACKET

Center Cooling Shield

1шт.

13

84394767

FLEXIBLE HOSE

Fuel

1шт.

14

31-3083

HOSE,12.70 mm ID x 3733.8 mm

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

36шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

18шт.

17

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

18

87360874

HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 8.8

BHCS, M8 x 30

7шт.

19

84299395

SCREW,Hex Soc, M8 x 1.25 x 30mm, Cl 10.9

SHCS, M8 x 30

2шт.

20

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

7 - 8 Inch

3шт.

22

84401013

PROTECTIVE SLEEVE,24mm ID x 1775mm L

Heat

1шт.
