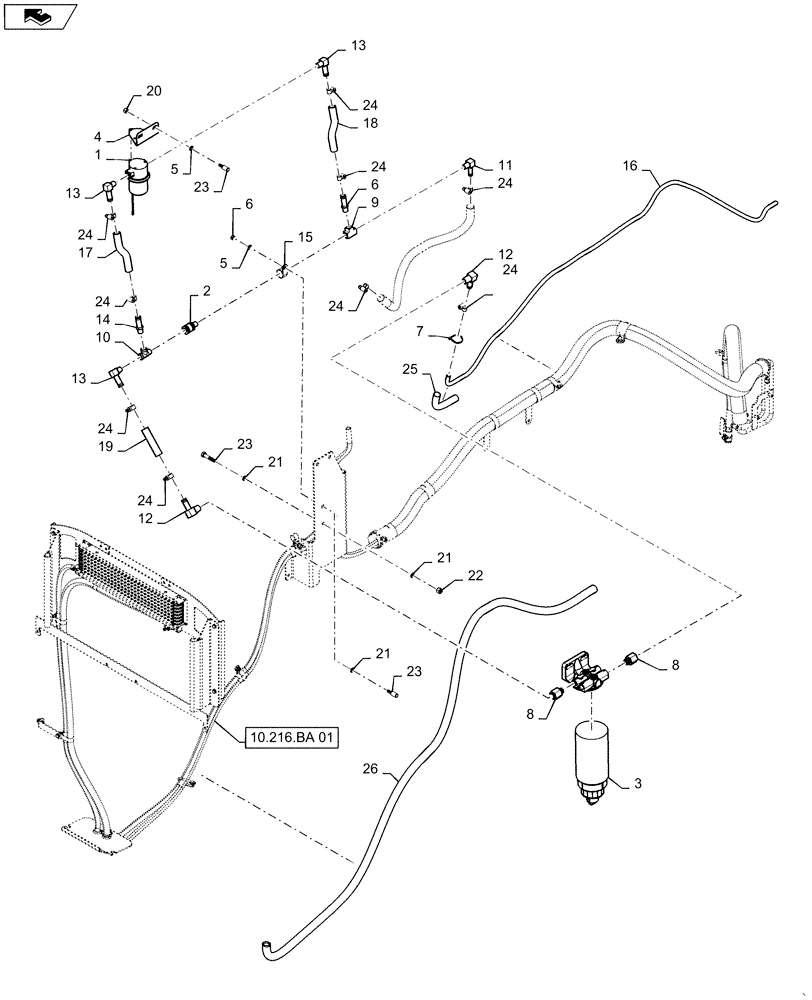

Запчасти Case IH STEIGER 350 (10.206.AG[01]) - FUEL FILTER & FUEL TRANSFER PUMP - STEIGER 350 (10) - ENGINE

1

87282080

FUEL PUMP,12V, 12A

1шт.

2

87365506

CHECK VALVE

Fuel Supply

1шт.

3

84322789

FUEL FILTER

1шт.

4

47524626

BRACKET, SUPPORTING

Fuel Pump Support, 9L, Also Order 432908A1 Qty 4

1шт.

4

432908A1

STUD

Not Illustrated, Use With 47524626

4шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

36шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

18шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

7 - 8 Inch

3шт.

8

84322798

ADAPTER

M18 ORR to 1/2 NPTF

2шт.

9

217-12

TEE,3/8"-18 NPTF Fem

1шт.

10

217-52

TEE,3/8"-18 NPTF Fem x 3/8"-18 NPTF Male Run

1шт.

11

217-133

ELBOW,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

2шт.

12

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

2шт.

13

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

3шт.

14

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

2шт.

15

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

16

31-2996

FUEL HOSE

1шт.

17

87362717

HOSE,15.9mm ID x 152.4mm L

1шт.

18

87362717

HOSE,15.9mm ID x 152.4mm L

1шт.

19

31-3016

FUEL HOSE,15.9mm ID x 95.3mm L

1шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

21

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

23

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

24

214-1408

HOSE CLAMP,11.2mm - 19.8mm

10шт.

25

84401010

PROTECTIVE SLEEVE,24mm ID x 325mm L

Heat

1шт.

26

84401012

PROTECTIVE SLEEVE,24mm ID x 2190mm L

Heat

1шт.
