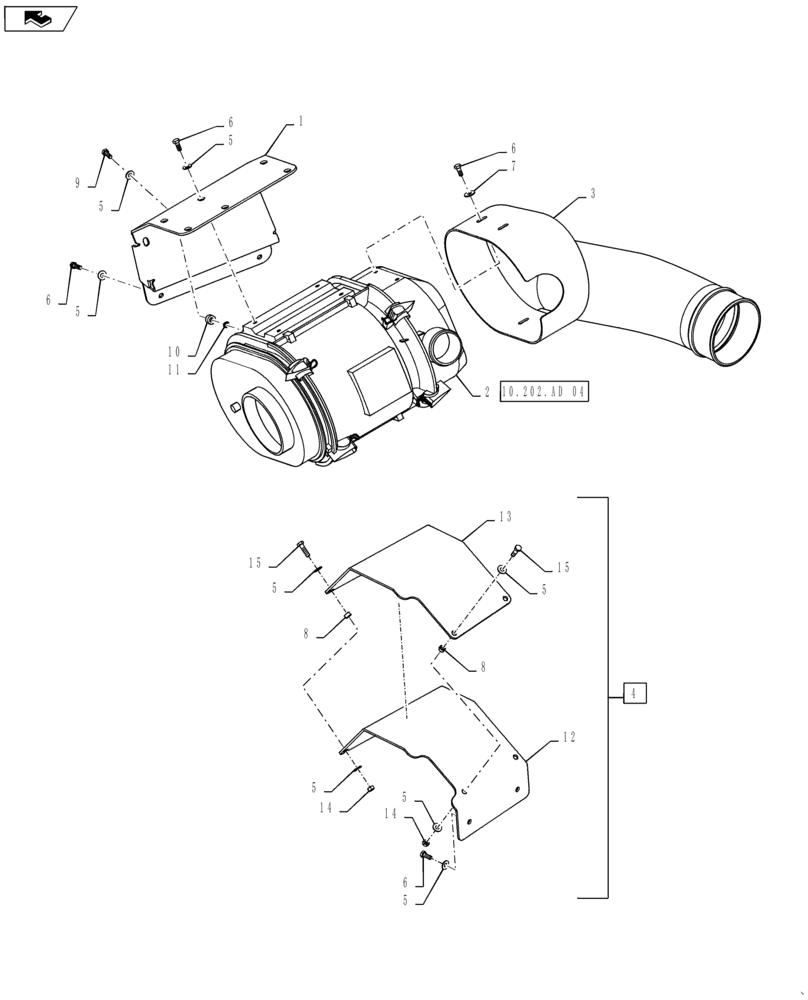

Запчасти Case IH STEIGER 350 (10.202.BD[02]) - AIR INTAKE - ASSY - STEIGER 350 (10) - ENGINE

1

84355594

BRACKET

Filter Mount

1шт.

2

84407844

AIR CLEANER

Assy - See Figure 10.202.AD(04)

1шт.

3

84355752

AIR INTAKE TUBE

Duct

1шт.

4

84415309

BRACKET

Heat Shield Assy. - Incl 5, 12 - 16

1шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

21шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

14шт.

7

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

4шт.

8

87608759

SPACER,9.52mm ID x 12.7mm OD x 7mm L

4шт.

9

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

10

371838A1

SPACER,9.5mm ID x 19.1mm OD x 10mm Thk

Mounting

2шт.

11

84359103

NUT,Push On, M8

Nut, Push On, Round, M8

2шт.

12

84415311

BRACKET

Heat Shield

1шт.

13

84415310

BRACKET

Heat Shield

1шт.

14

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

15

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.
