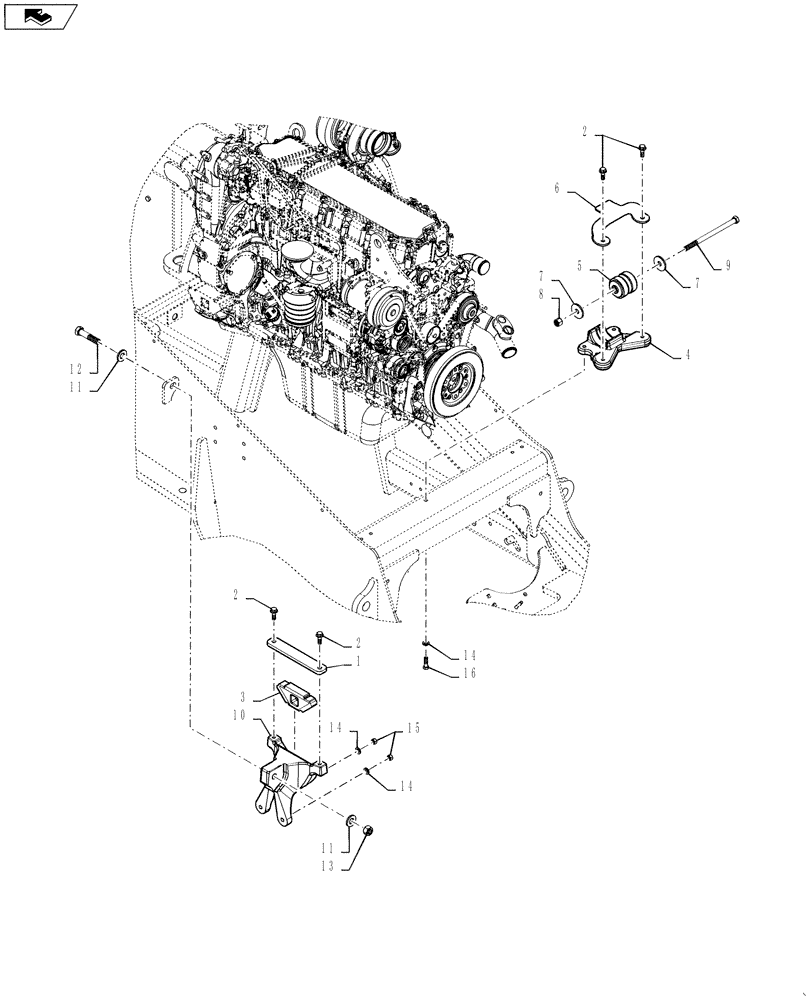

Запчасти Case IH STEIGER 350 (10.001.AK[01]) - ENGINE MOUNTING - STEIGER 350, 9L, ROW CROP TRAC (10) - ENGINE

1

87689563

BRACKET

Rear ISO Mount, Support

2шт.

2

854-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

6шт.

3

251991A1

SUPPORT

Rear

2шт.

4

84399567

ENGINE MOUNT

Front, Engine

1шт.

5

247991A1

RUBBER MOUNTING,76.2mm OD x 86.4mm L

Front Engine Mount

1шт.

6

87488620

BRACKET

Front ISO Mount, Support

1шт.

7

895-30103

WASHER,M16 x 56 x 5

2шт.

8

832-10416

NUT,M16 x 2, Cl 8

1шт.

9

827-16250

BOLT,Hex, M16 x 2 x 250mm, Cl 10.9

1шт.

10

84176906

MOUNT

Rear Engine Mount

2шт.

11

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

4шт.

12

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

2шт.

13

829-1420

NUT,M20, Cl 10

2шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

15

829-1412

NUT,M12, Cl 10.9

4шт.

16

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.
