Запчасти Case IH STEIGER 350 (55.302.AG[02]) - BATTERY - TRAY & CABLES - 9L - STEIGER 350 NON-SUSPENDED CAB (55) - ELECTRICAL SYSTEMS

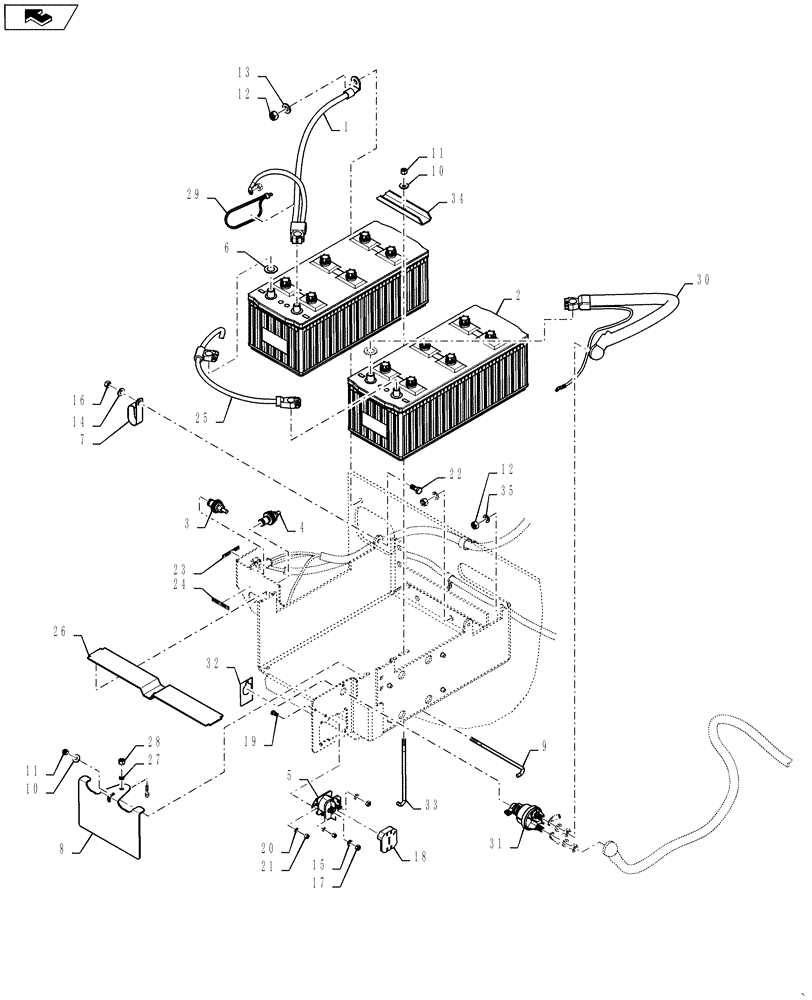

Схема запчастей Case IH STEIGER 350 - (55.302.AG[02]) - BATTERY - TRAY & CABLES - 9L - STEIGER 350 NON-SUSPENDED CAB (55) - ELECTRICAL SYSTEMS
16
10
11
10
25
23
30
21
27
17
7
home
1
13
19
22
31
26
20
9
29
24
34
35
18
6
11
12
8
5
32
33
14
28
2
3
15
12
4

Артикул

Название

Примечание

Количество

1

84249433

CABLE

Battery Ground

1шт.

2

87417341

WET BATTERY,BCI 4DLT, 12V, 1000CCA

12V

2шт.

3

1964554C1

TERMINAL

Jump Start - Positive

1шт.

4

84258928

TERMINAL CONNECTOR

Jump Start - Negative

1шт.

5

183038A1

SOLENOID

Solenoid w/Barrier

1шт.

6

87637103

WASHER

Lead Post Corrosion

2шт.

7

L111928

CLAMP

Double

1шт.

8

84346930

BRACKET

Battery Hold Down Assy.

1шт.

9

365357A1

ROD

Battey Hold Down

1шт.

10

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

12

829-1412

NUT,M12, Cl 10.9

8шт.

13

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

17

425-105

NUT,5/16"-18, G5

2шт.

18

178148A1

COVER

Solenoid Starter Switch

1шт.

19

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

21

832-10406

NUT,M6 x 1, Cl 8

2шт.

22

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

23

87427096

DECAL

Charging Post

1шт.

24

87427317

DECAL

Negative Post

1шт.

25

84158325

CABLE

Battery Positive to Jumper Post or Disconnect

1шт.

26

84315779

BRACKET

Battery Post Bracket Shield

1шт.

27

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

28

832-46406

NUT,M6 x 1, Cl 8

1шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

30

84425072

POS BATTERY CABLE

To Disconnect, 24V (Option)

1шт.

31

87572750

SWITCH

Battery Disconnect (Option)

1шт.

32

84367028

DECAL

Starter Disconnect, 24V

1шт.

33

87413678

ROD

Battery Hold Down

1шт.

34

84213124

BRACKET

Channel, Battery Hold Down

1шт.

35

892-11012

LOCK WASHER,M12

Spring Lock

7шт.

Выбрано товаров: 35
