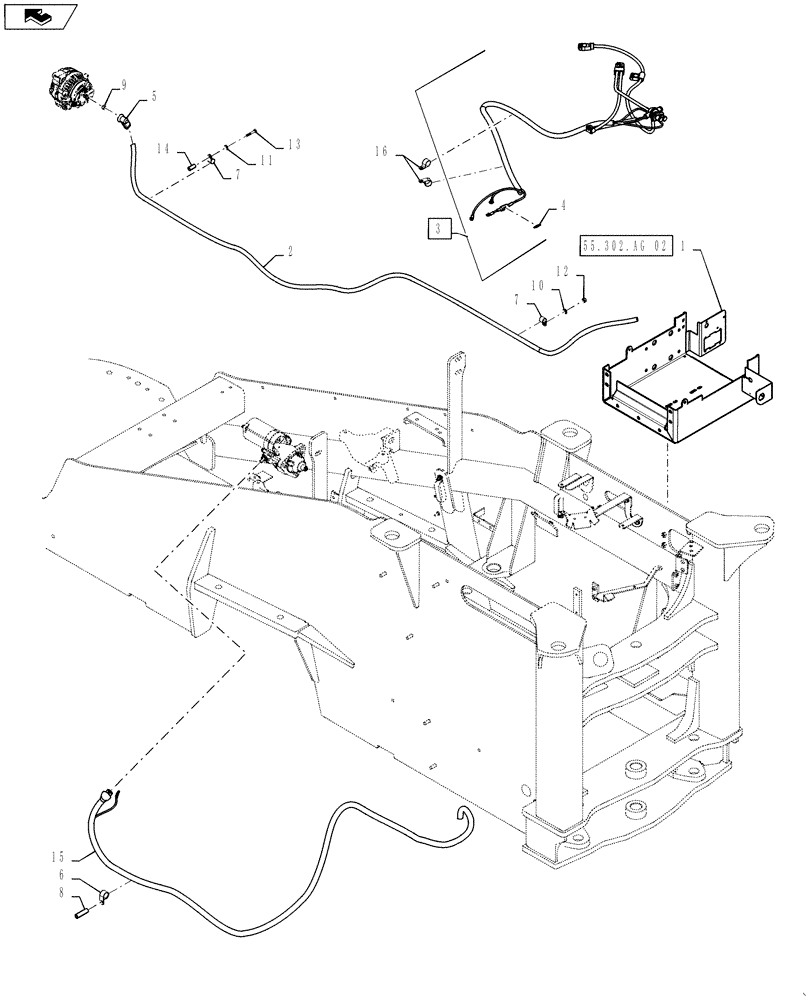

Запчасти Case IH STEIGER 350 (55.302.AG[01]) - BATTERY - TRAY & CABLES - 9L - STEIGER 350 NON-SUSPENDED CAB (55) - ELECTRICAL SYSTEMS

1

84492742

BATTERY TRAY

1шт.

2

84158320

CABLE

Alternator, 9L, 24V

1шт.

2

84384403

POS BATTERY CABLE

Alternator, 9L, 12V

1шт.

3

84151624

CABLE

Cab Power and Ground - Incl 4

1шт.

4

87455597

FUSE,200A

200A - Incl in 3

1шт.

5

L126713

BOOT

1шт.

6

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

4шт.

7

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

8

87447010

SPACER

SEC Aux. Cover

1шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

10

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

13

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

1шт.

14

L126936

SPACER

1шт.

15

84478870

CABLE

Starter, 9L, 24V

1шт.

15

84478857

CABLE

Starter, 9L, 12V

1шт.

16

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

2шт.
