Запчасти Case IH STEIGER 350 (55.100.DP[02]) - HARNESS, ENGINE, 9L - STEIGER 350 (55) - ELECTRICAL SYSTEMS

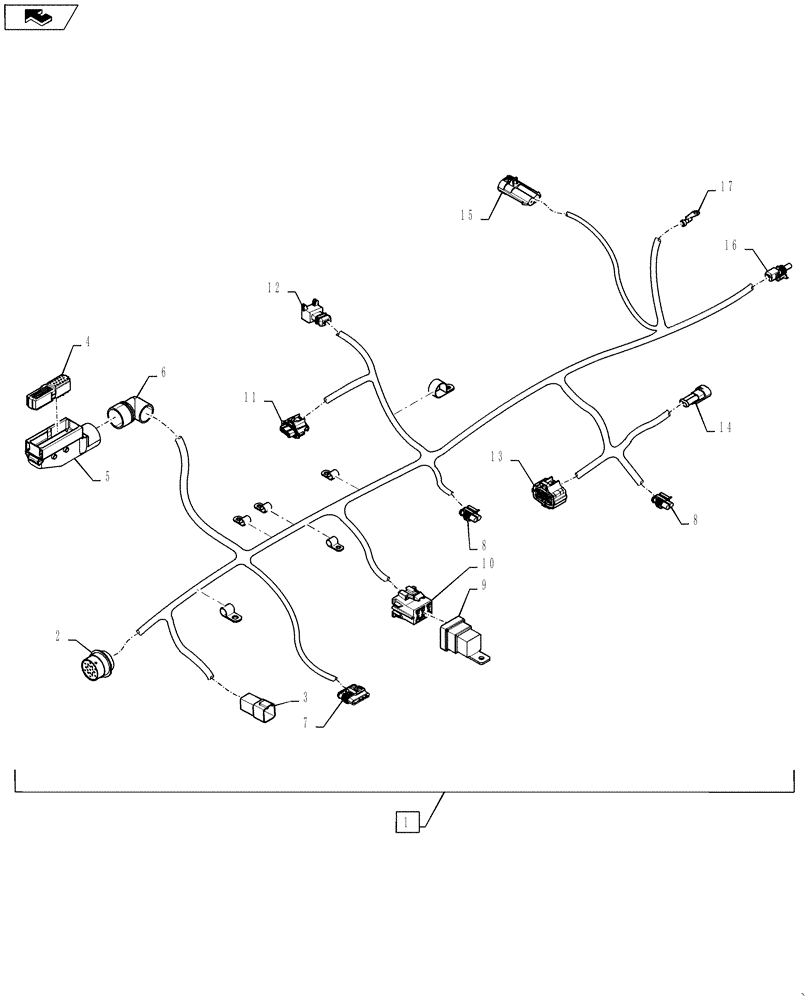

Схема запчастей Case IH STEIGER 350 - (55.100.DP[02]) - HARNESS, ENGINE, 9L - STEIGER 350 (55) - ELECTRICAL SYSTEMS
8
10
12
5
16
home
4
11
8
1
3
2
17
13
15
9
7
6
14

Артикул

Название

Примечание

Количество

1

84329920

HARNESS

Engine, 9L EVGT Incl 2 - 17

1шт.

2

87703918

TERMINAL CONNECTOR

21 Pin, To Front Frame Harness (C100M)

1шт.

3

225350C1

ELEC CONNECTOR,Male, 6 Pin

To Front Frame Harness (C150F)

1шт.

4

8602412

CONTACT

Housing (C176)

1шт.

5

8602413

COVER

Housing (C176)

1шт.

6

8602414

ELBOW

(C176)

1шт.

7

87688719

ELEC CONNECTOR,Female, 5 Cavities

5 Pin, To Vistronic Fan (C152)

1шт.

8

371614A1

ELEC CONNECTOR,Female, 2 Pin

Grid Heater Relay, EVGT Power / Ground (C173, C172)

2шт.

9

86508603

RELAY,12V

EVGT (RLY154)

1шт.

10

87710584

WIRE CONNECTOR

4 Pin, EVGT Relay (C154)

1шт.

11

87709809

ELEC CONNECTOR

4 Pin, Temp. / Humidity Sensor (C151)

1шт.

12

291718A1

ELEC CONNECTOR,Female, 2 Pin

Air Filter Restriction (C179)

1шт.

13

87694583

ELEC CONNECTOR

12 Pin, Dashboard (C153)

1шт.

14

371615A1

CONNECTION,ELECTRIC

2 Pin, EVGT Can Bus (C171)

1шт.

15

292549A1

CONNECTOR, ELEC

2 Pin, A/C High Pressure Switch (C175)

1шт.

16

245480C1

ELEC CONNECTOR,1 Pin

(C174)

1шт.

17

PL

PROCURE LOCALLY

Ring Terminal, M5 Stud, To Alternator D Terminal

1шт.

Выбрано товаров: 17
