Запчасти Case IH STEIGER 350 (55.100.DP[01]) - ENGINE WIRING - STEIGER 350 (55) - ELECTRICAL SYSTEMS

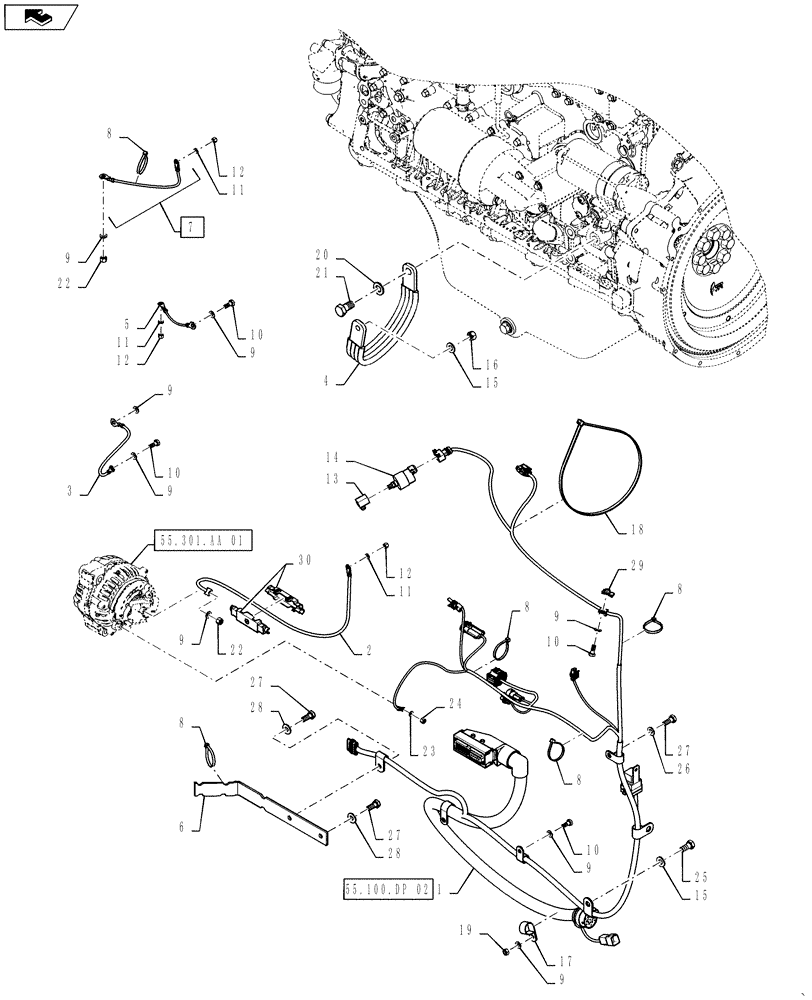

Схема запчастей Case IH STEIGER 350 - (55.100.DP[01]) - ENGINE WIRING - STEIGER 350 (55) - ELECTRICAL SYSTEMS
19
10
17
5
8
11
15
9
11
29
27
27
9
7
25
2
9
16
23
1
12
24
9
21
55.301.aa 01
9
home
3
27
12
18
13
22
8
6
28
10
26
15
9
12
4
8
11
20
8
28
22
30
10
55.100.dp 02
9
8
9
14
10

Артикул

Название

Примечание

Количество

1

84329920

HARNESS

9L EVGT Engine - Reference Figure 55.100.DP(02)

1шт.

2

84282620

CABLE

Alternator to Grid Heater

1шт.

3

87353517

GROUND CABLE

A/C Compressor Ground

1шт.

4

87362573

GROUND CABLE

Engine to Chassis Ground

1шт.

5

84282618

CABLE,135mm L

Grid Heater Ground

1шт.

6

84417535

BRACKET

Fan Harness Guide

1шт.

7

84282633

CABLE

Grid Heater Relay to Grid Heater

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

Cable Tie, 7 - 8 Inch, Black

7шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

10

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

12

832-10406

NUT,M6 x 1, Cl 8

3шт.

13

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

14

293797A1

RESTRICTION SWITCH

Air Filter

1шт.

15

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

16

829-1412

NUT,M12, Cl 10.9

1шт.

17

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

18

440567A1

CABLE TIE

1шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

20

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

21

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

1шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

23

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

24

832-10405

NUT,M5 x .8, Cl 8

1шт.

25

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

27

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

28

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

29

833-40408

NUT,M8, U

1шт.

30

87319927

FUSE

250A

1шт.

Выбрано товаров: 30
