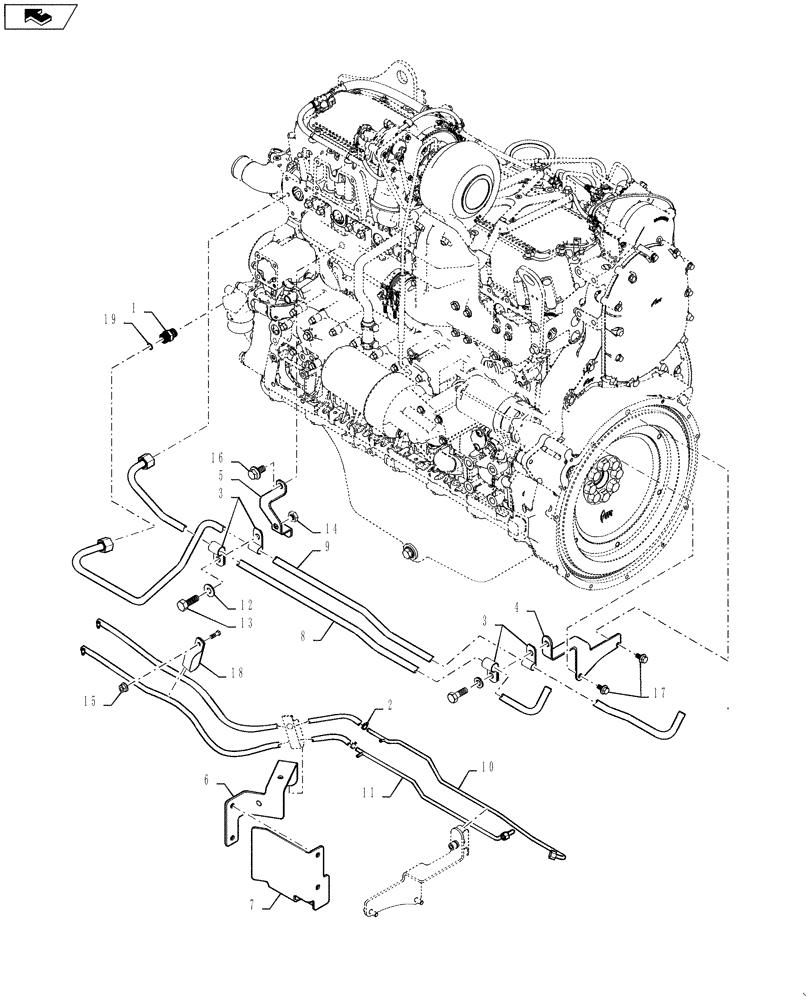

Запчасти Case IH STEIGER 350 (50.100.AP[02]) - HEATING SYSTEM - PLUMBING, 9L - STEIGER 350 (50) - CAB CLIMATE CONTROL

1

86984542

END FITTING

A Connector - Incl 19

1шт.

2

R54363

CLAMP

Double

2шт.

3

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

4

84351550

BRACKET, SUPPORTING

Heater Tube Support

1шт.

5

84198593

BRACKET

Heater Tube Front Support

1шт.

6

84351556

BRACKET, SUPPORTING

DEF Hose Support

1шт.

7

84351557

BRACKET, SUPPORTING

DEF Heat Shield

1шт.

8

84198595

TUBE

Heater Supply

1шт.

9

84246755

TUBE

Heater Return

1шт.

10

364159A1

HOSE,15.88 mm ID x 76.50 mm

2шт.

11

364159A1

HOSE,15.88 mm ID x 76.50 mm

6шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

13

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

15

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

16

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

17

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

3шт.

18

214-1408

HOSE CLAMP,11.2mm - 19.8mm

4шт.

19

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
