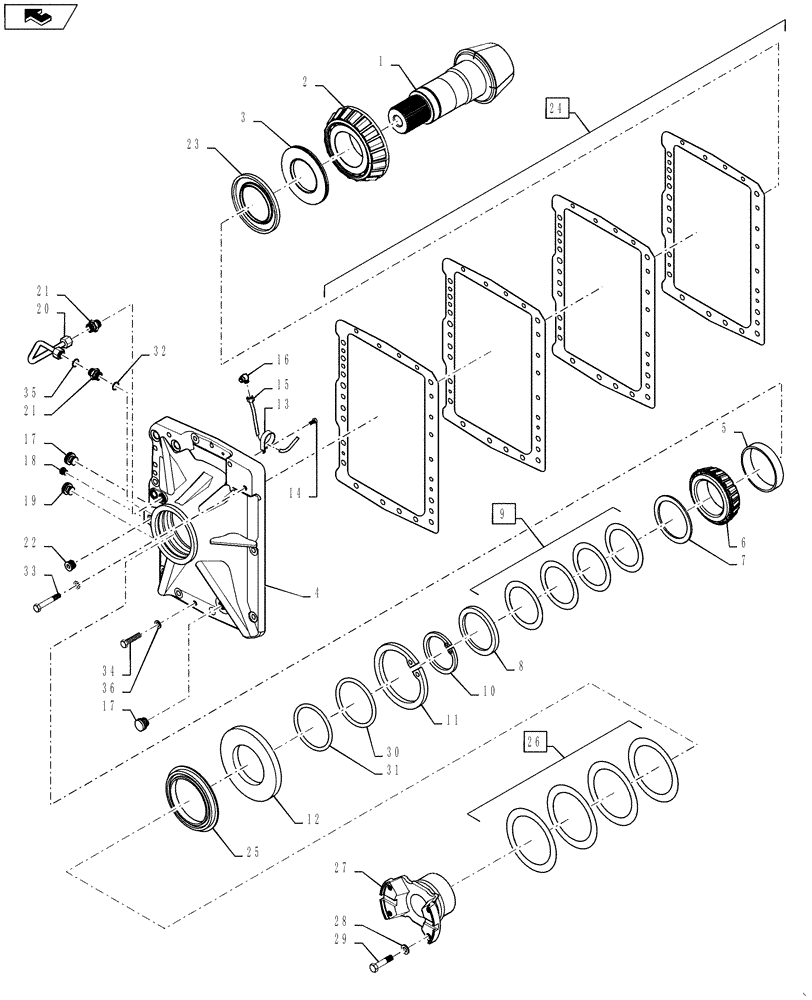

Запчасти Case IH STEIGER 350 (25.102.03) - AXLE - ASSY - 315 SERIES - FRONT COVER ASSY. STEIGER 350 (25) - FRONT AXLE SYSTEM

1

302259A2

BEVEL GEAR

SET, Pinion Shaft and Gear, (Ring Gear not Shown)

1шт.

2

248118A1

TAPERED BEARING,88.9125 mm ID x 52.8625 mm

1шт.

3

87432424

OIL SEAL

Pinion Input Shaft

1шт.

4

84251899

COVER ASSY

Cover, Front Axle

1шт.

5

191440A1

BEARING CUP,140 mm OD x 28.4734 mm

1шт.

6

67190R91

BEARING ASSY,82.5627 mm ID x 36.6135 mm

1шт.

7

191713A1

SPACER

Retainer - Thin

1шт.

8

228968A2

SPACER

Retainer - Thick

1шт.

9

220785A1

SHIM,84mm ID x 110mm OD x 0.5mm Thk

1шт.

9

191712A1

SHIM,0.130mm Thk

1шт.

9

191711A1

SHIM,0.101mm Thk

2шт.

9

191709A1

SHIM,0.076mm Thk

1шт.

10

229515A2

RING, SNAP

4.0mm

1шт.

11

86534066

SNAP RING,5.50", Int, #550

1шт.

12

284186A1

SEAL,88.9mm ID x 146.15mm OD x 10mm Thk

Grease

1шт.

13

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

14

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

15

234433A1

TUBE

Assy., Lube

1шт.

16

86985636

ELBOW

1шт.

17

221579A1

PLUG,M22 x 1.5 ORB

1шт.

18

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

1шт.

19

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

1шт.

20

86991772

TUBE,8 mm OD

Pinion Lube

1шт.

21

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 32 & 35

1шт.

22

86625138

PLUG,7/18" - 14

1шт.

23

248114A1

BEARING, CUP,200.01mm OD x 34.82mm W

1шт.

24

226492A2

SHIM,0.076mm Thk

1шт.

24

226493A2

SHIM,393mm OD x 0.1mm Thk

1шт.

24

226494A2

SHIM,393mm OD x 0.13mm Thk

1шт.

24

226496A2

SHIM,0.508mm Thk

1шт.

25

87432424

OIL SEAL

1шт.

26

178545A1

SHIM,25mm ID x 60mm OD x 0.076mm Thk

1шт.

26

178546A1

SHIM,25mm ID x 60mm OD x 0.101mm Thk

1шт.

26

178547A1

SHIM,25mm ID x 60mm OD x 0.130mm Thk

1шт.

26

220779A1

SHIM,25mm ID x 60mm OD x 0.5mm Thk

1шт.

27

395209A1

YOKE

8C Sliding

1шт.

28

228967A2

WASHER,25mm ID x 78mm OD x 10mm Thk

Yoke Retainer

1шт.

29

828-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

1шт.

30

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

31

238-6373

O-RING,0.21" Thk x 8.97" ID, -373, Cl 6, 90 Duro

1шт.

32

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

33

828-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

8шт.

34

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

14шт.

35

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
